ZK-DPL USB Adjustable Power Supply
$2.841pcs

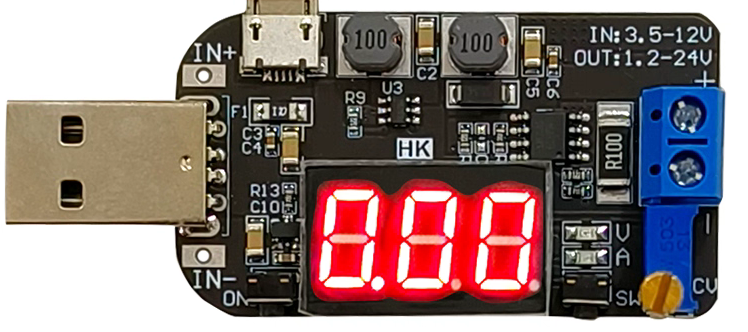

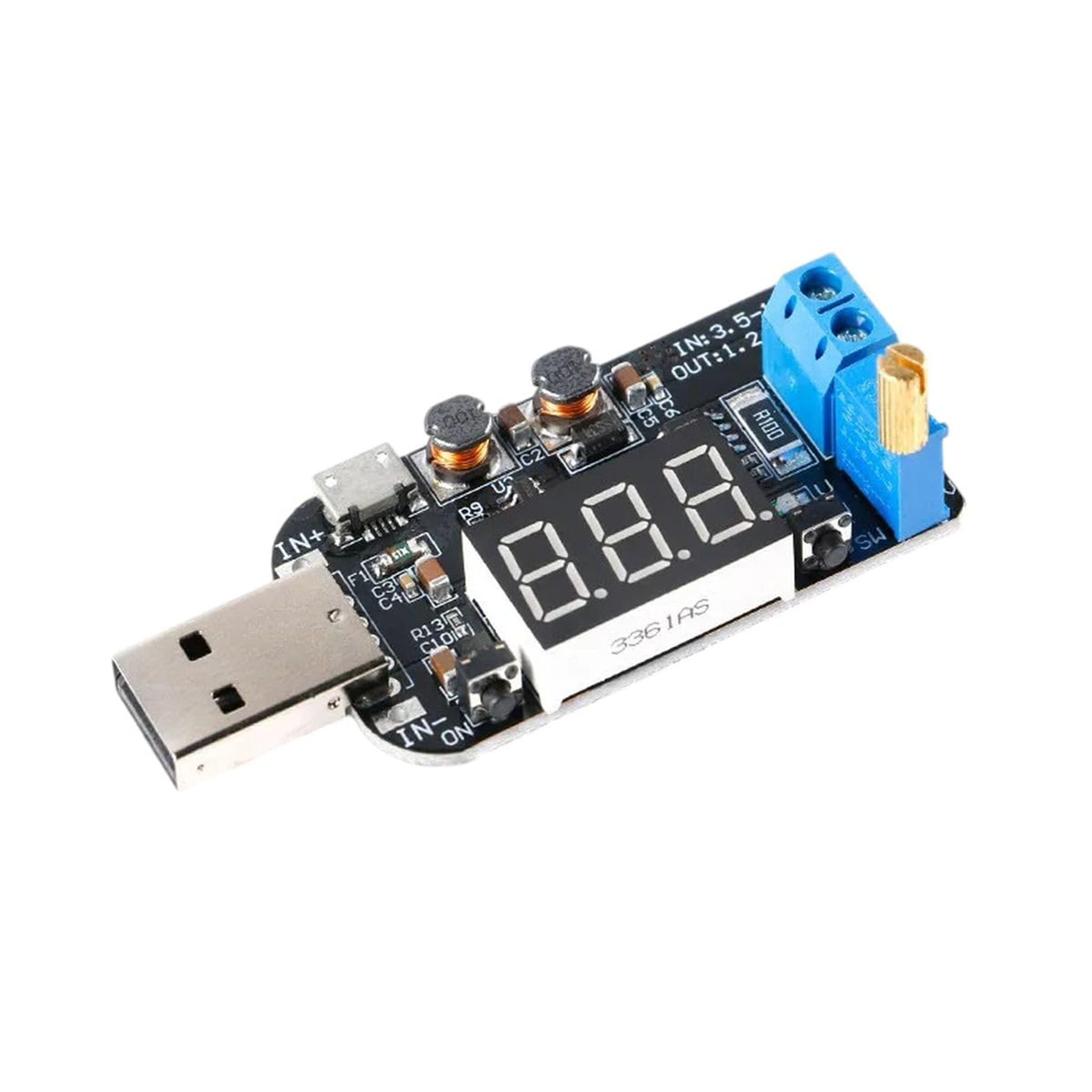

ZK-DPL is a DC adjustable step up/down power supply module with LED digital tube display.
| Dimensions | 68 × 30 × 22 mm |
|---|---|
| Brand |
easyelecmodule |
5621 in stock
Description
ZK-DPL is a DC adjustable step up/down power supply module with LED digital tube display.Display output voltage and output current.Adjustable output voltage.Set output voltage to meet the require.Simple and efficient, practical.
Features
- 3-digit digital tube display
- Adjustable output voltage (1.2V–24V)
- Buck & Boost conversion (step-up and step-down)
- Multiple input power methods (USB / pads)
- High conversion efficiency (up to 95%)
- Low power consumption
- Output enable / power saving mode
- Compact and lightweight design
Parameters
| Parameter Name | Parameter Description |
|---|---|
| Product Name | ZK-DPL DC-DC 3W Buck Boost Voltage Converter |
| Input Voltage (Pads) | DC 3.5V – 12.0V |
| Input Voltage (USB) | DC 5.0V |
| Output Voltage | DC 1.2V – 24.0V |
| Output Power | 3W (Max) |
| Conversion Efficiency | 95% |
| Operating Temperature Range | -20°C ~ 85°C |
| Operating Humidity Range | 0% ~ 95% RH |
| Size | 68 × 30 × 22 mm |
Button/Potentiometer/LED introduction

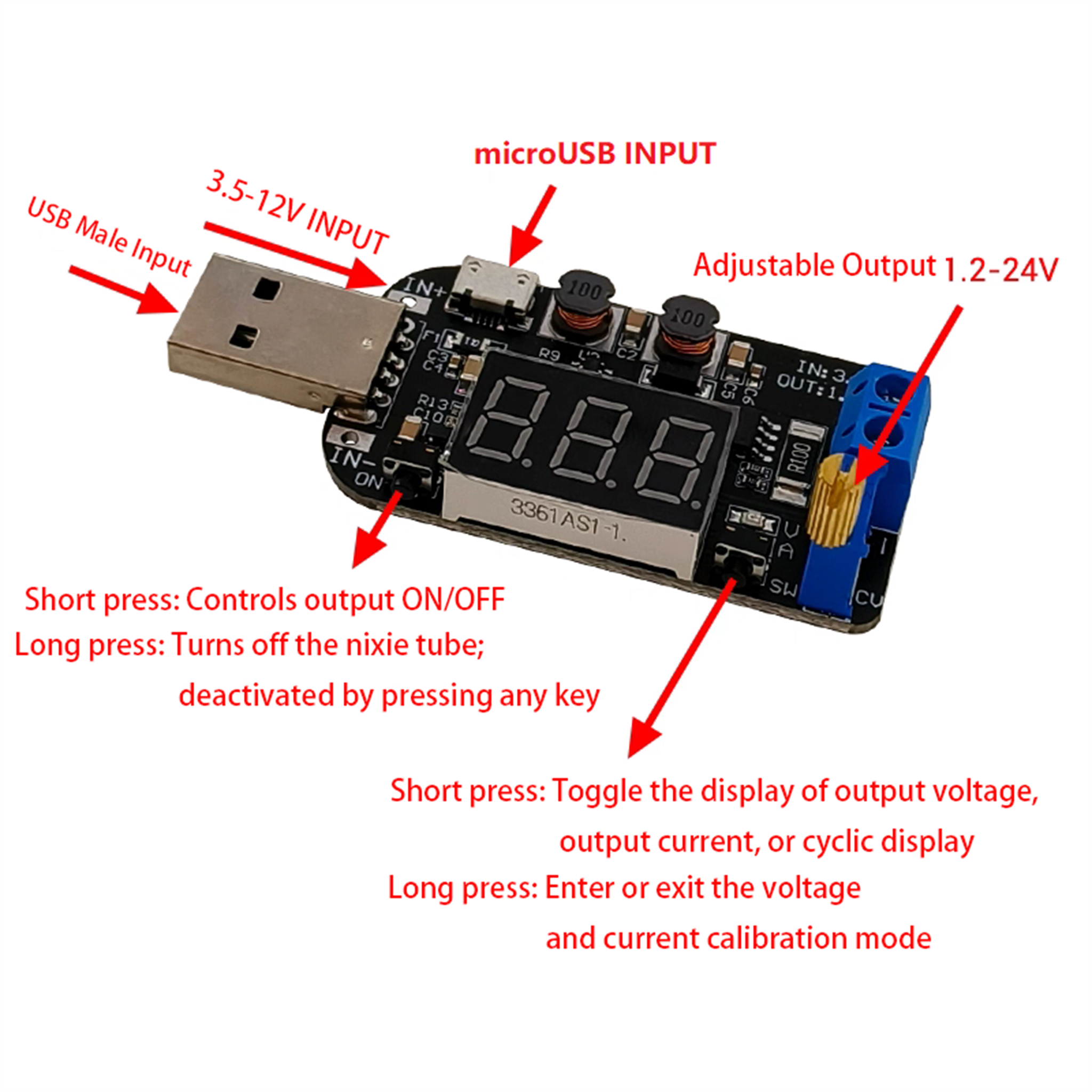

| Item | Description |
|---|---|
| Long Press | Long press means need keep press for more than 3 second. |

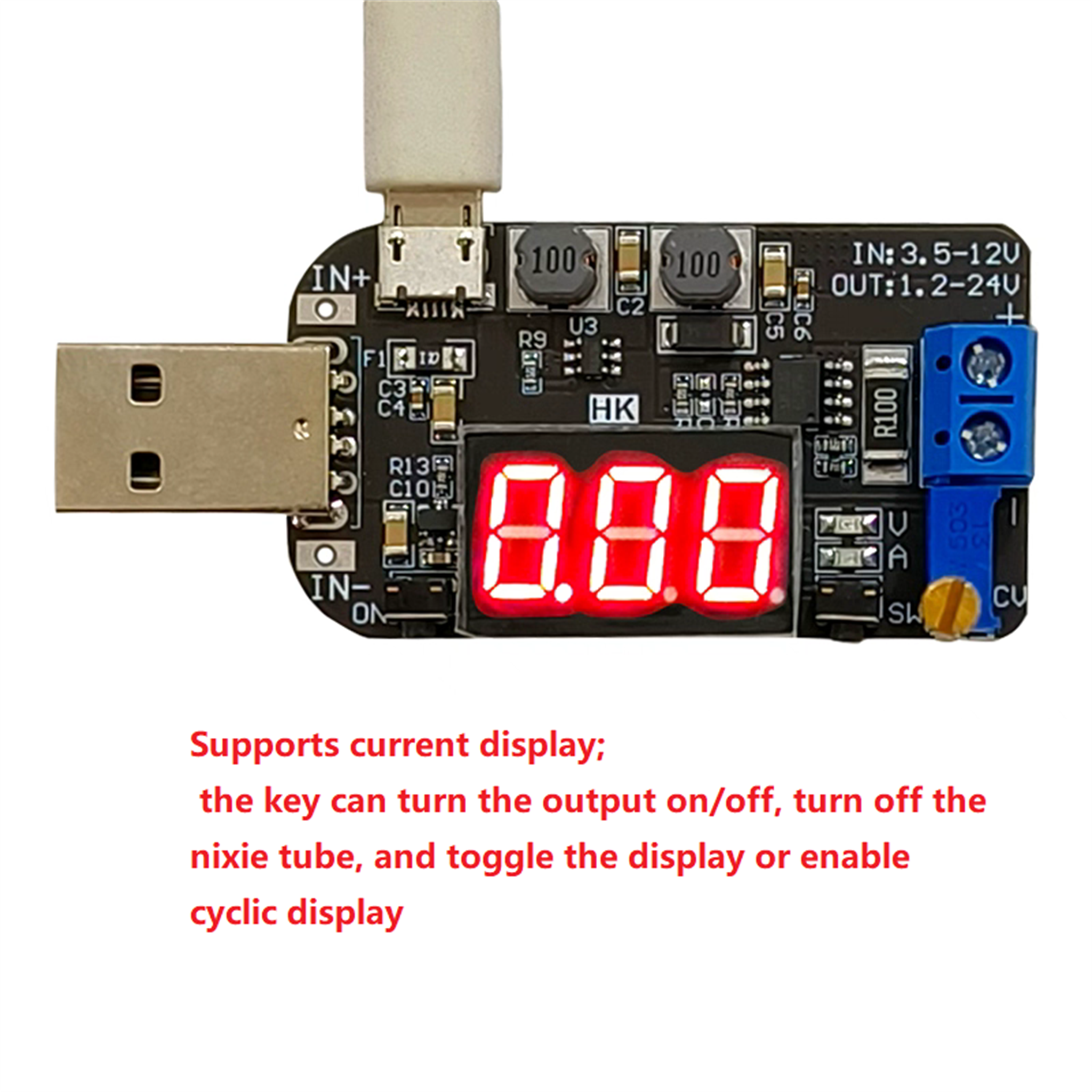

| Button ON | Short press to turn ON or OFF output voltage. Long press is used to turn ON or OFF screen meanwhile voltage keep output. |
| Button SW | Short press to switch display output voltage, output current or display these parameters in turn. Long press is used to enter or exit calibration mode. |
| CV Potentiometer | Adjust output voltage. Increase the output voltage when rotating clockwise. Please rotate the CV potentiometer 10 turns in counterclockwise if the output voltage cannot be adjusted. |
| V LED | Red indicator. It will turn ON when display output voltage. |
| A LED | Blue indicator. It will turn ON when display output current. |
| Output Terminal | KF-301-2P 5.08mm blue terminal. It can output DC 1.2V–24.0V. |
Input Terminal Description
| Input Method | Description |
|---|---|
| Method 1 | Standard Type A USB Male. It just can input DC 5V. |
| Method 2 | Micro USB Female. It just can input DC 5V. |
| Method 3 | IN+ and IN- pads. It can input DC 3.5V–12.0V. |
| Note | It can only choose one input method. |
Accuracy Calibration
Calibrating Output Voltage Accuracy
- When the module is displaying output voltage, long press the SW button to enter voltage calibration mode.
- The digital display will start flashing, indicating calibration mode is active.
- Short press the ON button to decrease the calibration value.
- Short press the SW button to increase the calibration value.
- Long press the SW button again to save the setting and exit calibration mode.
- Press the buttons multiple times to fine-tune the value.
ACalibrating Output Current Accuracy
- When the module is displaying output current, long press the SW button to enter current calibration mode.
- The digital display will start flashing, indicating calibration mode is active.
- Short press the ON button to decrease the calibration value.
- Short press the SW button to increase the calibration value.
- Long press the SW button again to save the setting and exit calibration mode.
- Press the buttons multiple times to fine-tune the value.
Notes:
- Calibration accuracy improves when the output current is higher.
- The module cannot display or calibrate output current if the current is lower than approximately 10–30 mA.
Notes & Precautions
- DC power module only. AC power is not supported.
- Do not short the output.
- IN- and OUT- must not be connected together.
- Input power must be greater than load power.
- Reduce output power if the module becomes hot.
- Rotate CV potentiometer counterclockwise if voltage adjustment is not available.
- Output current varies with load. Max output power: 3W.
- Output current is determined by the connected load and will vary accordingly.
- The module does not provide a fixed constant-current output.
- If the module becomes hot during operation, it is recommended to reduce load power or improve cooling.
Application
- DIY electronic projects
- Power supply for microcontrollers (Arduino, ESP32, etc.)
- Battery-powered projects
- USB-powered adjustable power source
- Laboratory testing & prototyping
- Repair and maintenance use
