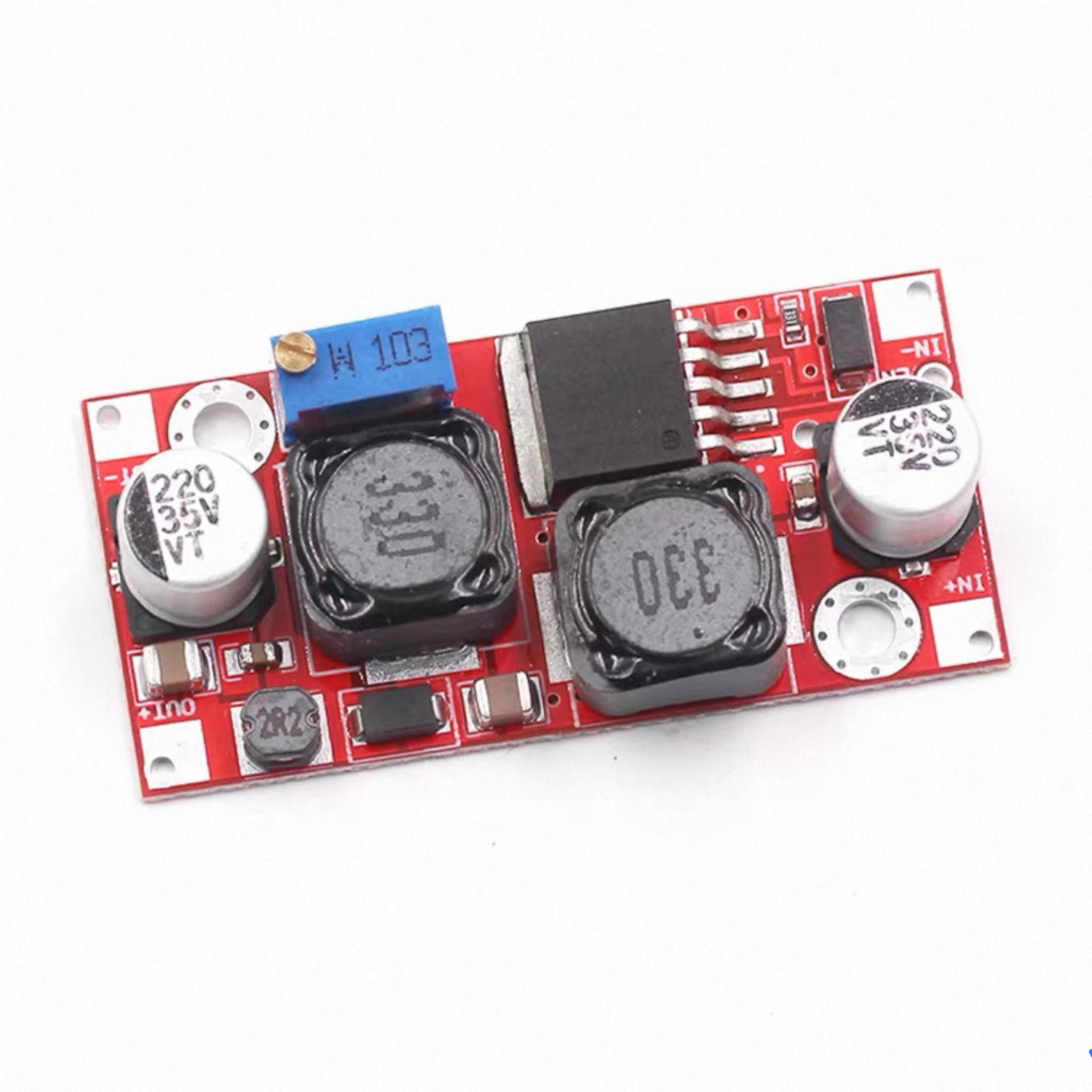

XL6009 DC-DC Adjustable Boost Buck Voltage Regulator Module
$3.021pcs
XL6009 adjustable boost/buck module, raises or lowers voltage in one unit! Wide voltage range, high efficiency, strong load capacity. Compact and portable, ideal for DIY and outdoor gear.

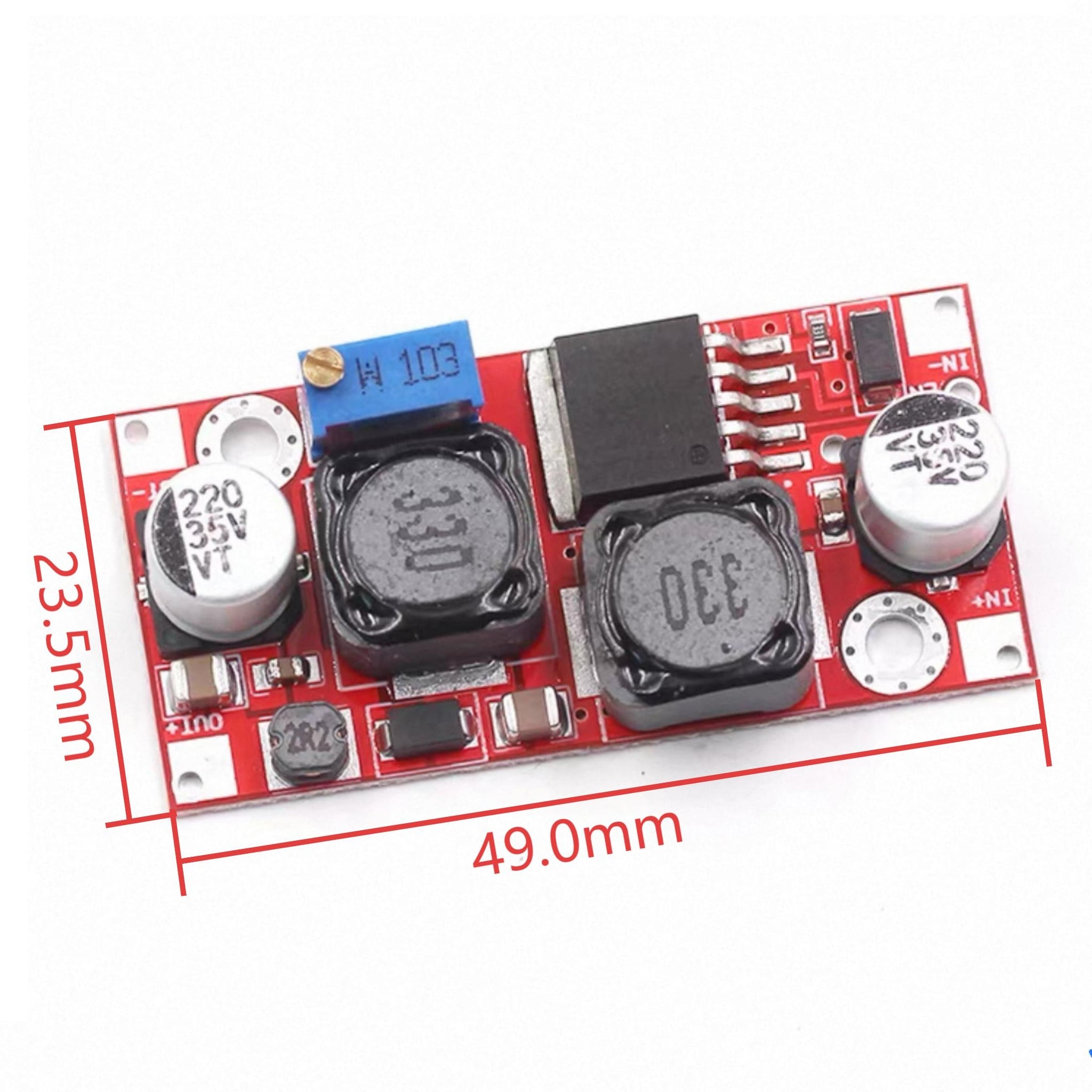

| Dimensions | 49.0 × 23.5 mm |
|---|---|
| Brand |
easyelecmodule |
2720 in stock
Product Introduction
1. Up to 400KHz operating frequency and filter circuit, very low output ripple.
2. TDK inductor minimizes heat generation and interference.
3. 3 MLCC multilayer ceramic capacitors for input and output, enhancing anti-interference and stability.
4. PCB uses KB’s Class A sheet material, eliminating paper-based boards and inferior boards.
5. Built-in MOSFET enables high efficiency up to 94%.
6. Added enable port to control whether the boost circuit works.
Product Parameter
| Model | XL6009 DC-DC Adjustable Boost Buck Voltage Regulator Module Red Version |
| Module nature | Non-isolated Buck-Boost Module |
| Input voltage | 5~32V |
| Output voltage | Continuously adjustable (1.2~35V) |
| Input current | 4A(MAX) |
| Output current | 1.5A(MAX) |
| Output power | Natural cooling 20W, with heat sink 25W(MAX) actual power |
| Maximum output power | Input voltage * 4A * Conversion efficiency |
| Operating temperature | Industrial grade (-40℃~+85℃) (When the ambient temperature exceeds 40℃, please reduce the power usage or enhance heat dissipation) |
| Temperature Rise at Full Load | 45℃ |
| Working frequency | 400KHZ |
| No-load Current | Typical 15mA (5V to 12V) |
| Load regulation | ±0.5% |
| Voltage regulation | ±0.5% |
| Enable control port | High level 1.4V~VIN (ON), low level 0~0.8V (OFF), default high level |
| Short circuit protection | None (Please add a fuse or protection circuit at the input) |
| Input reverse connection protection | None, please use our reverse connection protection board or connect a diode in series at the input |
| Mounting method | Can be fixed with screws (fixing hole 3mm), 2 fixing holes |

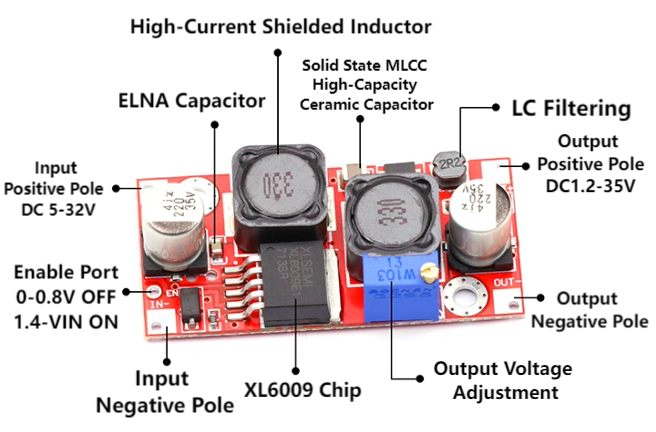

Hardware Diagram
