Four-channel remote control relay
$10.001pcs

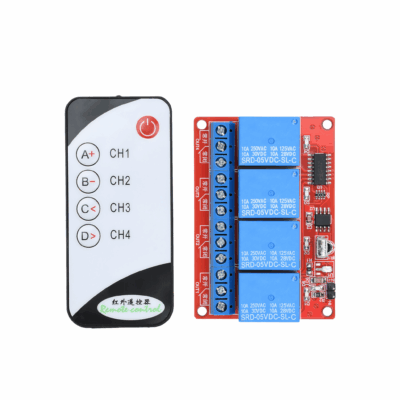

The four-channel relay is a remotely switchable relay module that allows remote on/off control of the relay via remote control buttons.
| Dimensions | 65 × 45 × 18 mm |
|---|---|
| Brand |
easyelecmodule |
2097 in stock
Product Description

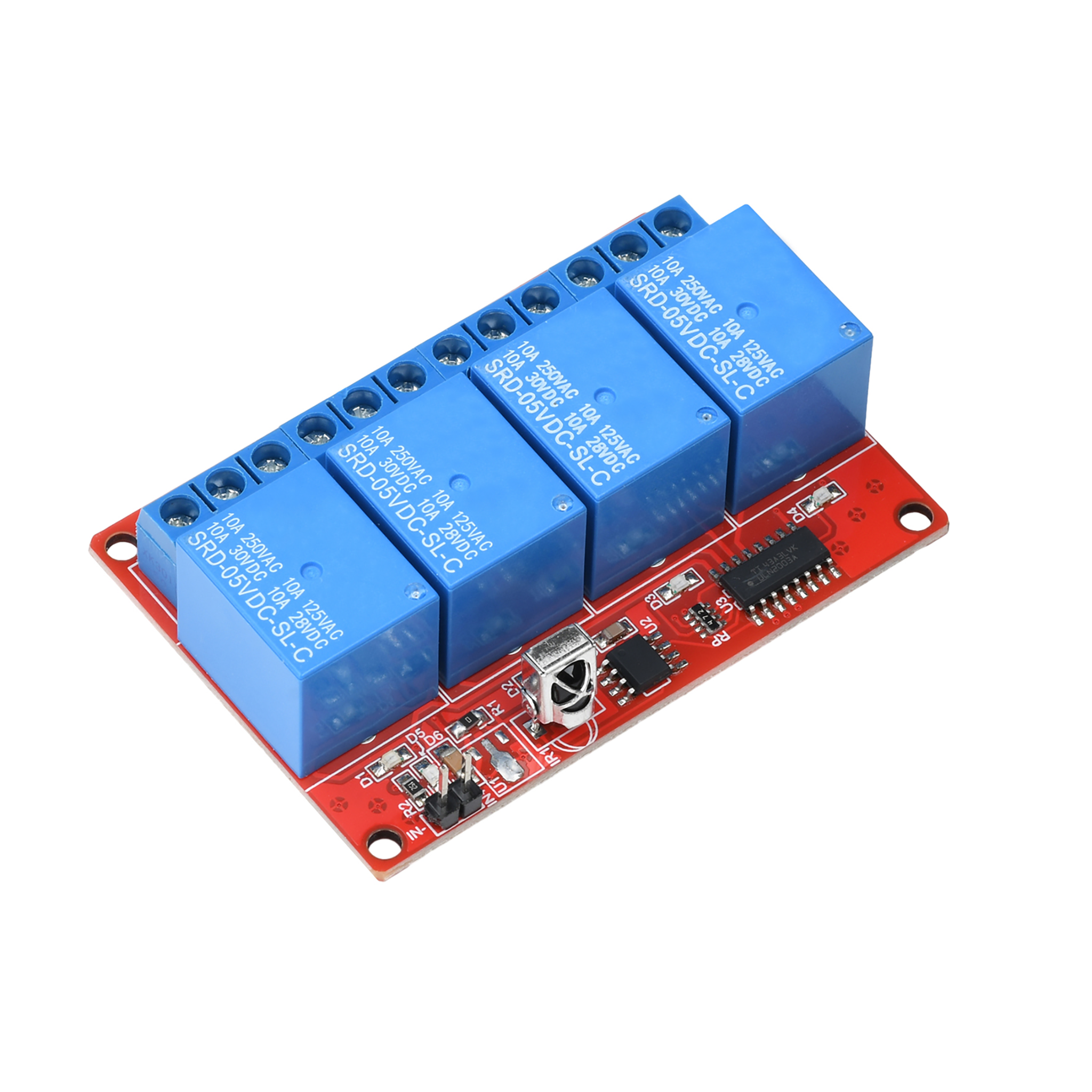

The remote control four-channel relay module consists of an infrared remote control and a relay with a signal receiving terminal. After the infrared remote control transmits a signal, the signal receiving terminal in the relay receives the signal and executes the corresponding operation, enabling effective remote on/off control of the load’s operation.
It is commonly used in scenarios such as smart homes and industrial automation.
Performance Parameter
| Parameter | Value |
|---|---|
| Receiver Power Supply | 12V (VIN+ to 12V positive, GND- to 12V negative) |
| Static Operating Current | Less than 1mA |
| Total Pull-in Current | Less than 150mA |
| Remote Control Distance | Up to 8 meters |
| Relay Load Capacity | 250VAC-10A, 125VAC-10A, 30VDC-10A, 28VDC-10A |
Introduction to Usage
After connecting to a 12V power supply (IN), you can control the relay with the infrared remote control. Press the corresponding button (like CH1) to activate the corresponding channel relay (OUT1). The four buttons CH1-CH4 correspond to the four outputs OUT1-OUT4, each with independent control. You can also press the power button to turn on/off all four relays at once, which is suitable for remote control scenarios, similar to an air conditioner remote control. Note that only the matching remote control can operate the relay.
Pin Description
- ·IN-: Connect to the negative electrode of the 12V power supply
·IN+: Connect to the positive electrode of the 12V power supply
·OUT1-OUT4: Each consists of NC, NO, and COM; connect as shown in the diagram. - Note: CK = NO
