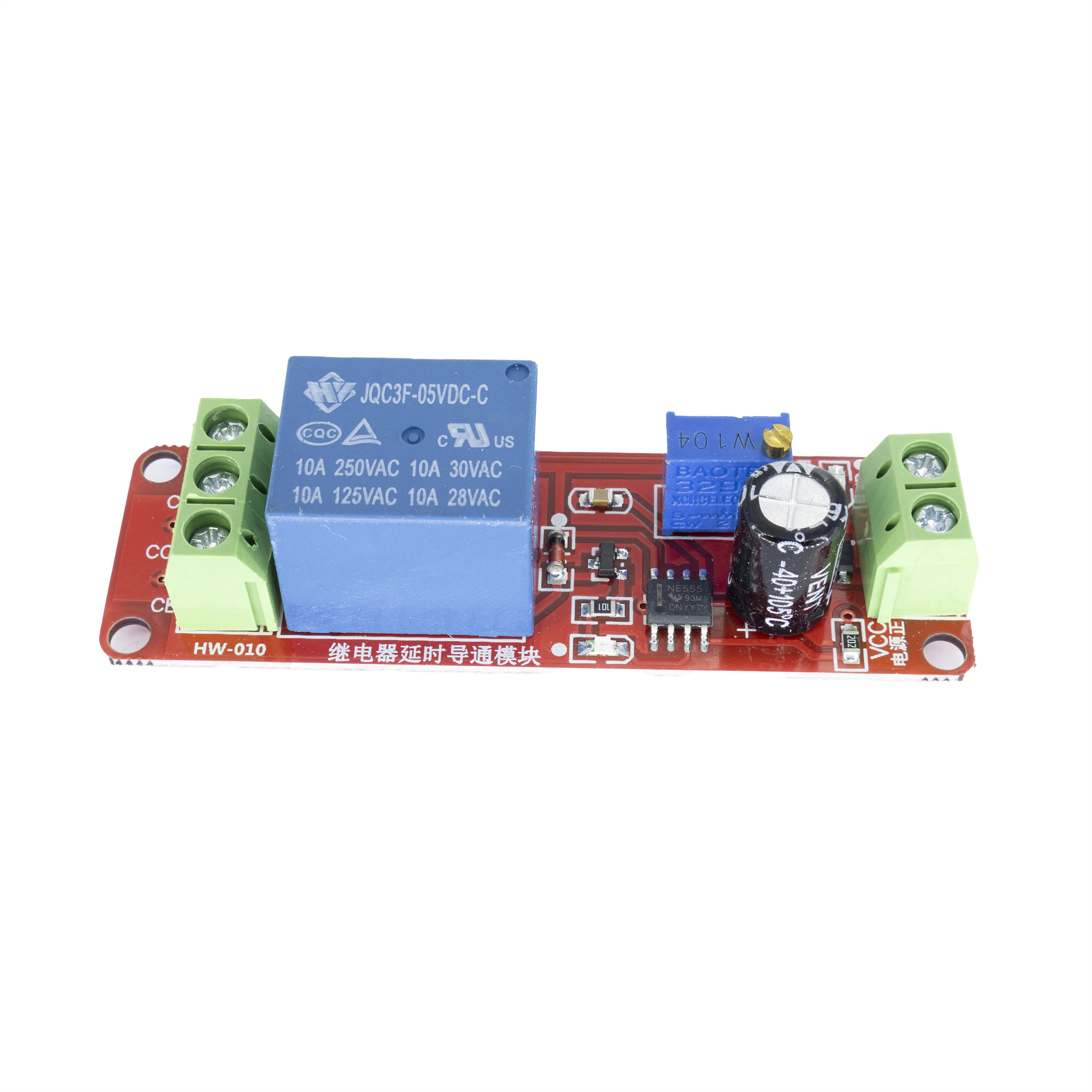

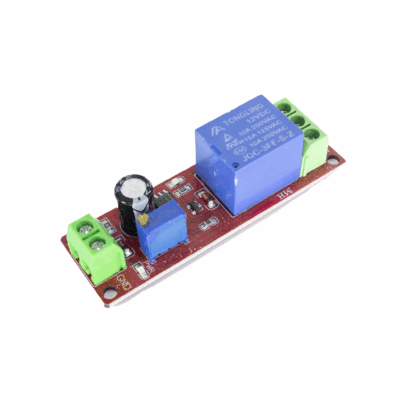

NE555 Time-Delay Relay Module
$3.001pcs

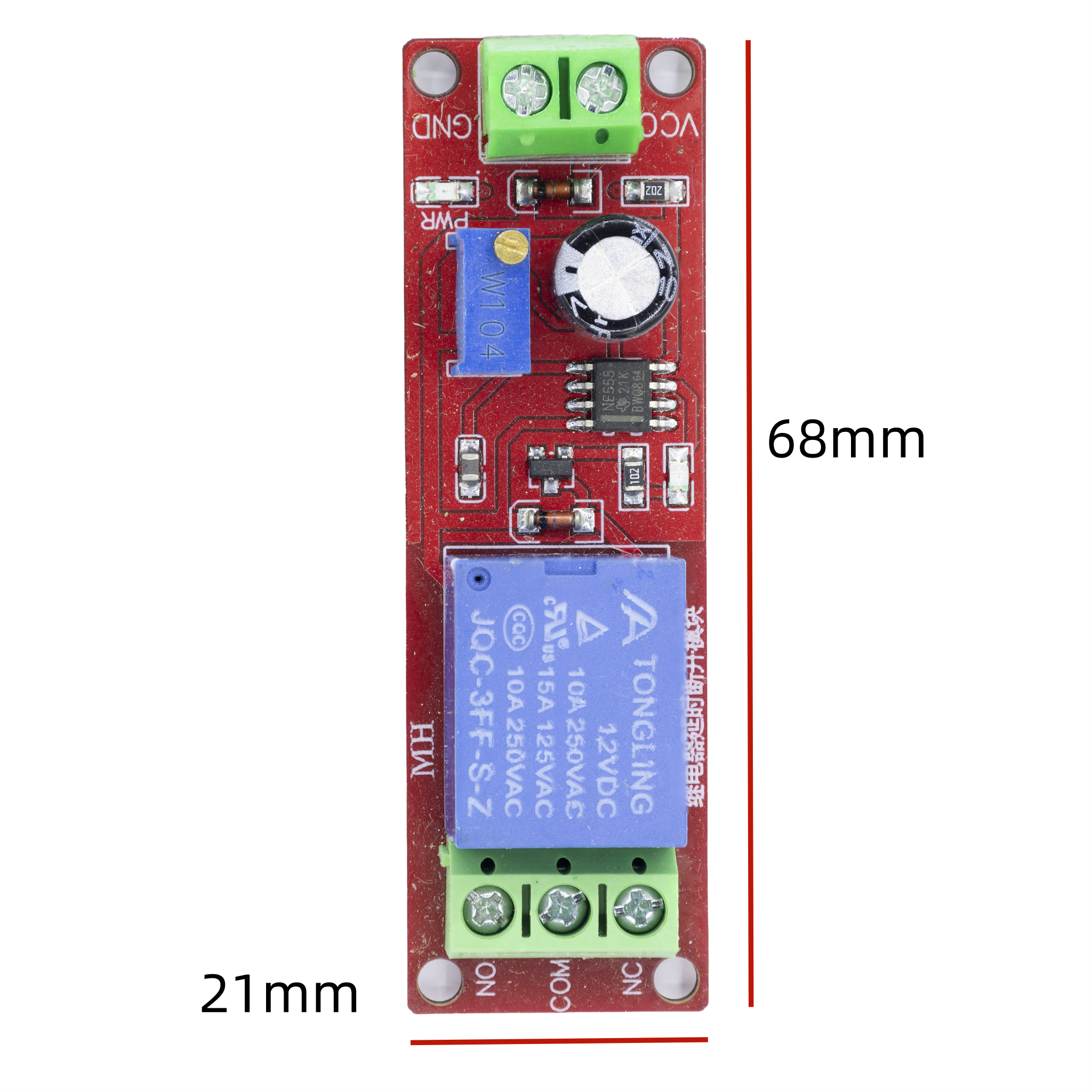

| Dimensions | N/A |
|---|---|
| Brand |
easyelecmodule |
What is time delay relay module?
A time-delay relay module is an electrical component designed to implement delayed control in circuits. Unlike standard relays which respond instantly, it doesn’t immediately alter contact states upon receiving control signals. Instead, it operates after a preset delay period.This characteristic makes time-delay relays indispensable in circuits requiring precise timing control.
Advantages of the NE555 Time Delay Relay Module
First, it offers high flexibility, allowing easy adjustment of delay times via potentiometer tuning to meet diverse application requirements. Second, the NE555 delay relay module offers high stability, maintaining reliable timing performance across diverse environmental conditions. Additionally, its low cost, easy availability, and straightforward integration make it widely adopted in electronic design and automation control fields. Furthermore, its simple circuit structure and user-friendly debugging capabilities significantly lower the learning curve, enabling beginners and hobbyists to get started effortlessly.
The application scenarios for the NE555 delay relay module
Benefiting from its unique time-delay feature, the NE555 time-delay relay module has a wide range of application scenarios.
- 1. In the field of automated control, it can be used to control the start and stop time of equipment, realizing precise timing control in automated production processes. For example, on an automated production line, when a product reaches a specific position, the NE555 time-delay relay module is triggered by a sensor. After the set delay time, it controls the robotic arm to grab or place the product, ensuring the smooth progress of the production process.
- 2. In terms of lighting control, the NE555 time-delay relay module also plays an important role. It can be used to realize the delayed-off function of stair lights, corridor lights, etc. When a person passes by and triggers the sensor, the time-delay relay module starts timing. After a period of time, it automatically cuts off the light power, which is convenient for people’s lives and achieves the purpose of energy saving.
- 3. In security systems, the NE555 time-delay relay module also has an indispensable position. It can be used to control the delayed start of alarm equipment. When the sensor detects an abnormal situation, the time-delay relay module will not trigger the alarm immediately, but will start the alarm after a preset delay time. This can avoid some false alarms and improve the reliability and accuracy of the security system.
- 4. In addition, the NE555 time-delay relay module can also be applied to motor control, electronic toys, timers and many other fields, providing stable and reliable solutions for various circuits that require precise time control.
NE555 time delay relay module datasheet
Here is the NE555 time-delay relay datasheet for your reference.
NE555 time delay relay module datasheet
