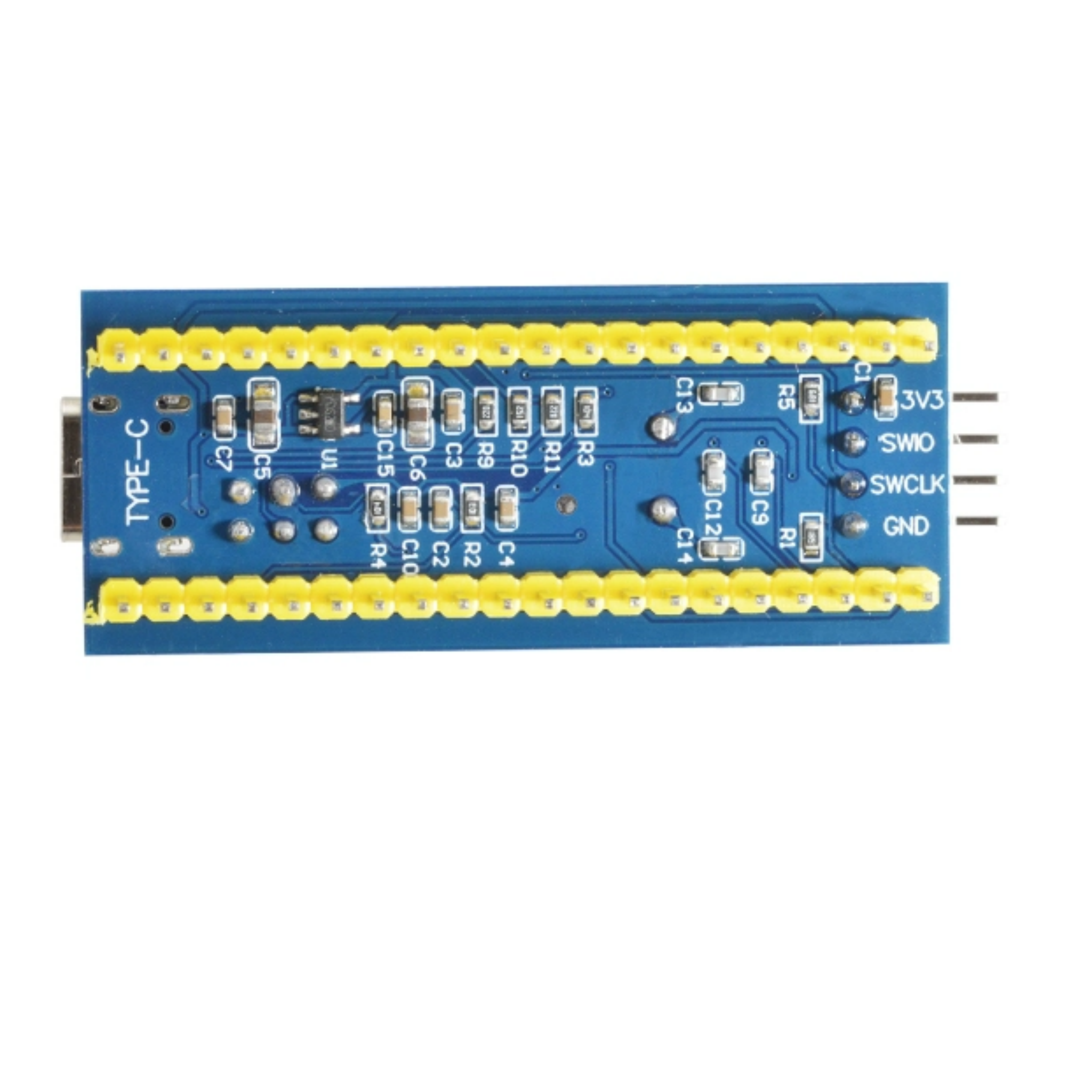

STM32F103C8T6 core board Type-C soldering version

$2.301 pcs

STM32F103C8T6 Type-C development board, ARM 32-bit MCU core development board, single-chip microcomputer learning board module.

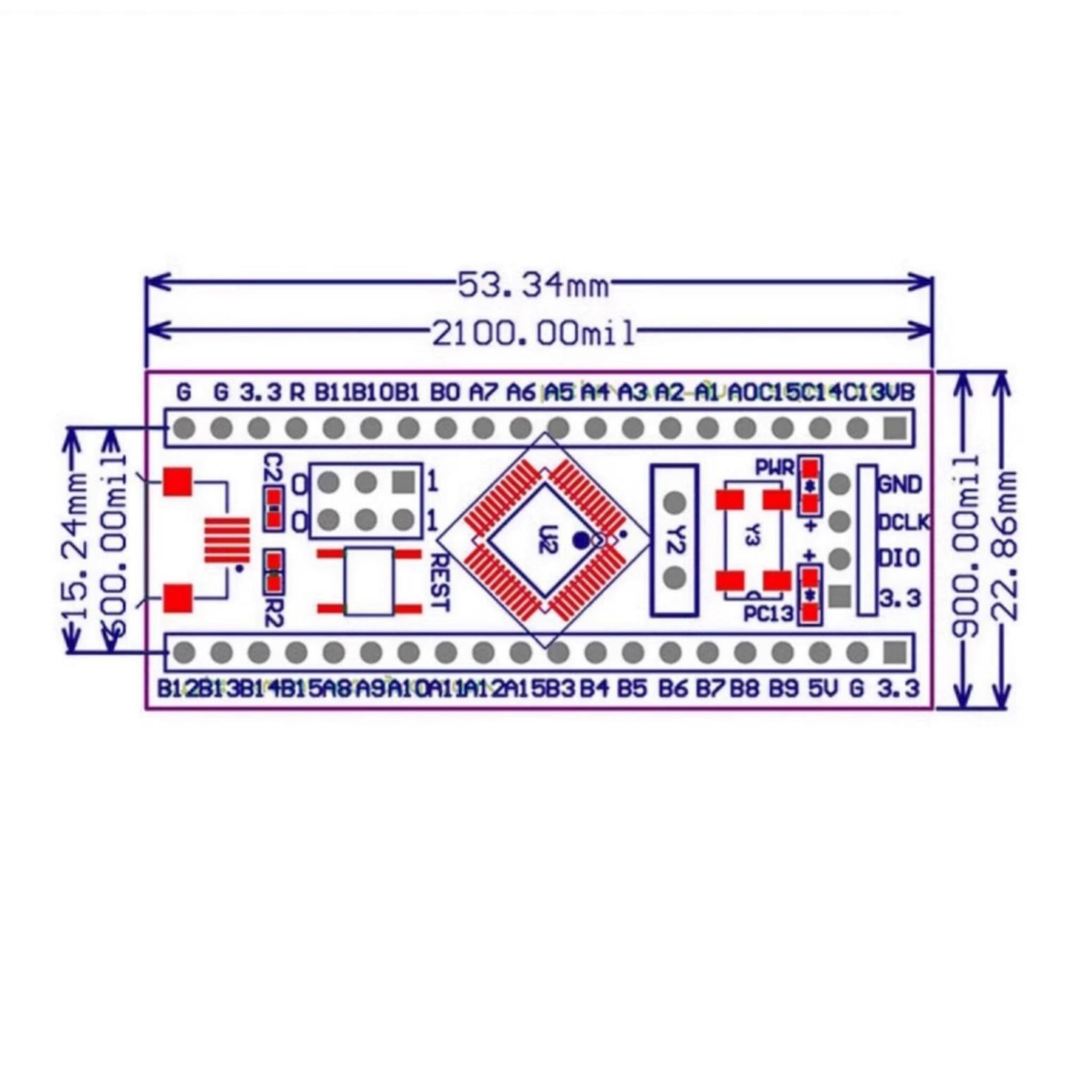

Dimensions 53.34 × 22.86 mm
Brand

easyelecmodule

841 in stock

Add to compare
Add to wishlist
Category: Tag:
DESCRPIPTION AND FEATURES

Introduction

The STM32F103C8T6 Blue Pill development board is a classic choice in the field of embedded development. Boasting high cost-effectiveness and stable performance, it has become the preferred solution for entry-level learning, project prototype verification, and small-batch production products.

It is more than just an “entry-level board”: Beginners can easily implement basic projects like blinking LEDs and UART communication to quickly grasp embedded programming logic. For experienced developers, it can be used to build project prototypes such as smart cars, home automation systems, and data acquisition devices—even for direct use in small-batch production.Equipped with an SWD debugging interface and an AMS1117-3.3V voltage regulator circuit, the board offers simple wiring and fast program downloading. It is compatible with mainstream development environments like STM32CubeIDE and Arduino, and can be quickly set up with an ST-Link V2 debugger for immediate use.

STM32F103C8T6 Small System Board

  1. Fully compatible with the STM32F103C8T6 chip in terms of pins. Some programs can be used without any modification!
  2. No need for jumpers. To change the startup mode, just press the BOOT0 and RST buttons. Release RST first, and then you can switch the startup mode.
  3. Micro-USB interface with a standard USB communication circuit. Pull-up resistors have been added, making it convenient for USB communication experiments.
  4. Compatible with mainstream core boards on the market. The IO expansion pins are fully compatible with common core boards available now, allowing for one-click replacement!
  5. High-quality surface-mounted crystal oscillators are used. Both 8MHz and 32.768KHz crystal oscillators are of high quality, ensuring the stable operation of the core board.
  6. Standard SWD debugging interface. A 4-wire SWD interface is adopted, making it convenient for debugging and program downloading.

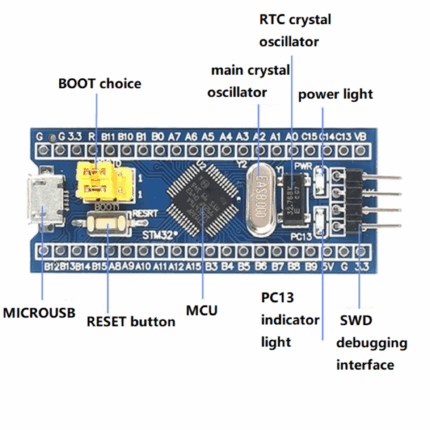

Hardware Resources:

  1. One STM32F103C8 main chip
  2. An 8M surface-mounted crystal oscillator (capable of reaching up to 72M via the internal PLL of the chip) – ST official standard parameter
  3. A 3.3V voltage regulator chip, providing a maximum current of 800mA
  4. One MICRO interface, which can power the system and reserves USB communication function
  5. A reset button
  6. One standard SWD port, supporting JLink, STLink, and JLINK OB
  7. A BOOT selection port
  8. Two 20-pin IO expansion headers
  9. One power indicator light
  10. One function indicator light, used to verify the basic functions of IO ports
  11. A reserved UART interface, convenient for connecting with 5V development boards and enabling program downloading via UART
  12. A high-performance EPSON 32768Hz crystal oscillator, which costs 10 times that of through-hole crystal oscillators and is easy to start oscillating
  13. 20K RAM, 64K ROM, TQFP48 package

STM32F103C8T6 Datasheet

If you want to learn more STM32F103C8T6 details, you can refer to this datasheet.
