Introduction

The XL4015 5A DC-DC Buck Converter Power Module is a high-performance switching-mode buck power module. It supports an input voltage range of 8V-36V and an adjustable output voltage range of 1.25V-32V, providing a constant output current of 5A with a maximum efficiency of up to 96%. Equipped with thermal shutdown, current limiting, and short-circuit protection, it is reliable for industrial, automotive, IoT, and DIY projects, ensuring efficient and stable voltage conversion.

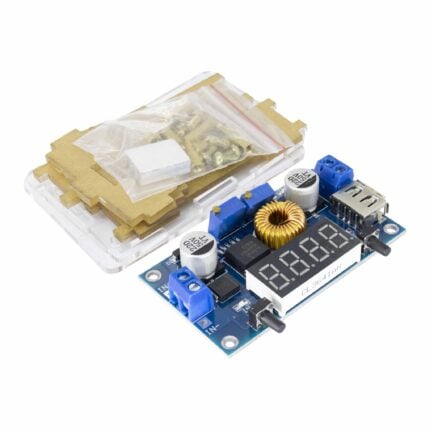

XL4015 5A DC-DC Buck Converter Power Module—— -With Display +3D Shell

This XL4015 5A DC-DC Buck Converter Power Module is different from the LM2596 and XL4005 buck modules available on the market. The chips they use are designed for powers of 15W and 50W respectively. This buck module adopts an upgraded chip, which is superior to similar products in input and output voltage range, output power, and efficiency, with a power of up to 75W, and has a very high cost-performance ratio. mattis, pulvinar dapibus leo.

The module comes with a crystal case, which is safer and more aesthetically pleasing.
It includes a voltmeter, ammeter, power meter, and a USB port for charging digital products.

Precaution

When using the product.
When charging digital devices, make sure the USB output voltage is 5V.
If the module cannot adjust the output voltage and it always equals the input voltage, please rotate the “potentiometer” counterclockwise for 10 turns or more, then you can use the module to adjust the output voltage. The default factory output voltage is about 20V.
The case assembly is very simple, but pay attention to the directionality of the “left”, “right”, and “front” panels during assembly!

Applications

Usage of Buck Module with Overcurrent Protection:
- Adjust the right button to light up the “OUT” LED. Use a digital multimeter to check the output voltage and adjust the “voltage potentiometer” to set the desired output voltage.
- Adjust the right button to make the digital meter display the output current. Short-circuit the output terminals and adjust the “current potentiometer” to set the overcurrent protection value. (For example, if the digital meter shows 4A, the module’s maximum current is 4A.)
- Connect to the load.
Usage as a Battery Charger:
- Determine the float voltage and charging current for the battery. (For a 3.7V/2200mAh lithium battery, the float voltage is 4.2V and the maximum charging current is 1C, i.e., 2200mA.)
- Under no-load condition, adjust the “voltage potentiometer” to set the output voltage to the float voltage. (For a 3.7V rechargeable lithium battery, the output voltage can be adjusted to 4.2V.)
- Adjust the right button to make the digital meter display the output current. Short-circuit the output terminals and adjust the “current potentiometer” to set the charging current.
- The default charging indicator current is 0.1 times the charging current. (If the charging current is set to 1A, when the charging current is less than 0.1A, the blue light turns off and the green light turns on, indicating the battery is fully charged.)
- Connect to the battery for charging. (Steps 1-4: The output is unloaded, do not connect the battery.)
Usage as an LED Constant Current Driver Module:
- Adjust the “potentiometer” to set the desired output voltage.
- Adjust the right button to make the digital meter display the output current. Short-circuit the output terminals and adjust the “current potentiometer” to set the working current.
- Connect the LED and it will work. (Steps 1-2: The output is unloaded, do not connect the LED.)

Calibration Method for Voltmeter and Ammeter

XL4015 5A DC-DC Buck Converter Power Module with manual calibration function can correct the display accuracy of voltage and current. To meet the accuracy requirements, follow these steps:

Output Voltage Calibration Steps:
- Step 1: Adjust the right button to light up the “OUT” LED. Use a digital multimeter to check the output voltage. Press and hold the right button for more than 2 seconds, then release. The digital multimeter and “OUT” LED will flash out of sync, and you will enter the output voltage calibration mode.
- Step 2: Press the right button at normal speed to adjust the voltage value in equal units. Press the left button to adjust to the minimum unit of 0.1V. The minimum voltage display is 0.1V, so you need to press 1-5 times to see a 0.1V change on the voltmeter. The number of presses to change 0.1V depends on the current displayed voltage; the higher the voltage, the fewer presses.
- Step 3: Press and hold the right button for more than 2 seconds, then release. Exit the calibration mode, and all parameters will be saved automatically when powered off.
Input Voltage Calibration Steps:
- Step 1: Adjust the right button to light up the “IN” LED. Use a digital multimeter to check the input voltage. Press and hold the right button for more than 2 seconds, then release. The digital multimeter and “IN” LED will flash out of sync, and you will enter the input voltage calibration mode.
- Step 2 and Step 3: The method is the same as the output voltage calibration.
Output Current Calibration Steps:
- Step 1: Adjust the right button to make the digital meter display the output current. Press and hold the right button for more than 2 seconds, then release. The digital meter will flash synchronously, and you will enter the output current calibration mode.
- Step 2: Connect to the load and connect an ammeter in series. Adjust the left and right buttons to make the digital meter display the same as the ammeter.

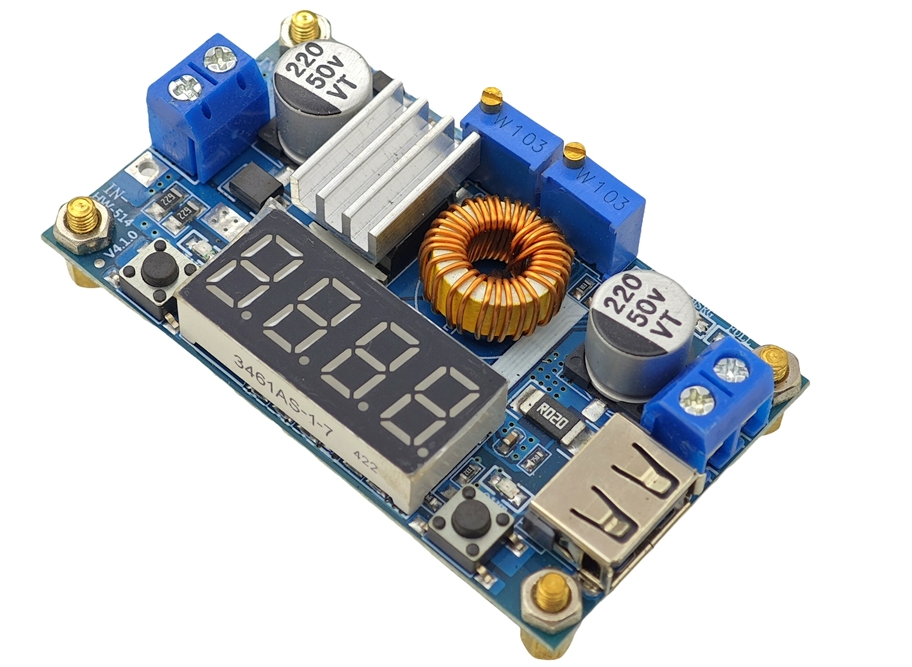

XL4015 5A DC-DC Buck Converter Power Module—— With Display

Product Features

On-board voltage, current, and power meters. You can use this module easily and intuitively even without a multimeter.
On-board USB port, which can easily charge your digital products. (Note: The USB output voltage is the same as the module’s output voltage, not a fixed 5V output. Please confirm before charging USB devices.)
High power, good efficiency, 5A, low ripple.
Three major functions:
- (1) Used as an ordinary buck module with overcurrent protection capability.
- (2) Used as a charger for lithium batteries, storage batteries, Ni-Cd and Ni-MH batteries (battery packs) of various voltage values, suitable for scenarios such as solar panels and wind generators.
- (3) Used as a high-power LED constant current driver module.

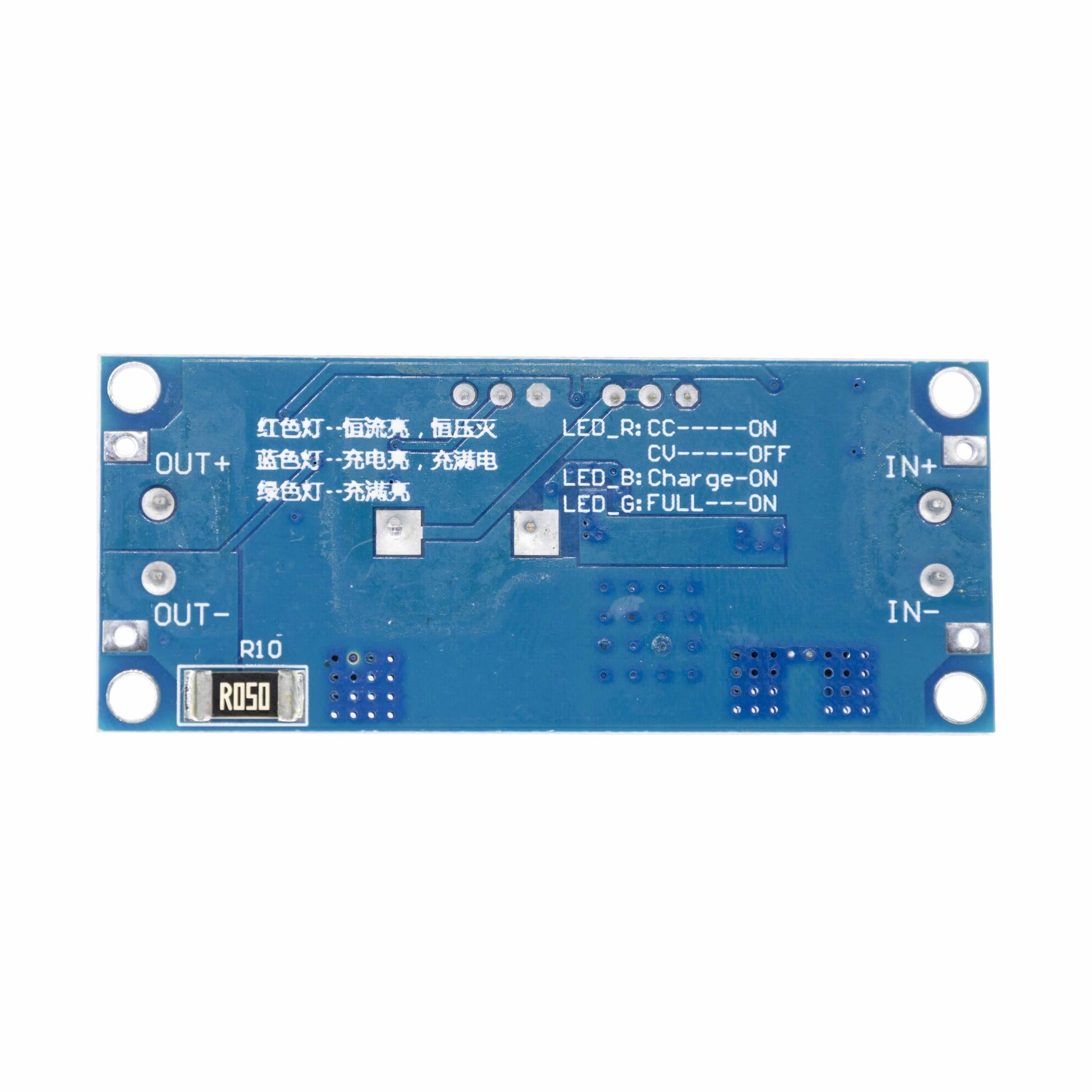

It has two modes: constant voltage and constant current, with an indicator light to show which mode the module is currently in.
When used as a lithium battery charger, you can set the float voltage and charging current. There is an indicator light to show whether it is charging or fully charged.
It has current limiting protection function, and the module will not be burned even if the output is short-circuited.
The on-board voltage and ammeters can be self-calibrated.
Comes with a heatsink and free copper pillars!

Product Parameter

Parameter	Value
Input Voltage	5-36V
Output Voltage	Continuously adjustable from 1.25-32V
Output Current	Adjustable, maximum 5A
Output Power	Maximum 75W
Operating Temperature	-40~+85℃
Operating Frequency	180KHz
Conversion Efficiency	Up to 96%
Short-Circuit Protection	Yes (Current limited to 8A)
Over-Temperature Protection	Yes (Automatically shuts off output when overheated)
Input Reverse Polarity Protection	No (If needed, connect a high-current diode in series with the input)
Installation Method	4×3mm screws
Wiring Method	Terminal blocks or welding terminals. V-IN is input, V-OUT is output
Dimensions	68.2mm (L) × 38.8mm (W) × 15mm (H)
Weight	73g

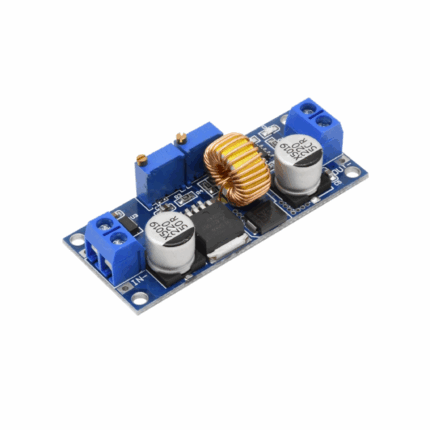

XL4015 5A DC-DC Buck Converter Power Module

High power, high efficiency, 5A, low ripple.
Three-in-one:
- Used as an ordinary buck module with overcurrent protection capability.
- Used as a charger for lithium batteries, storage batteries, Ni-Cd and Ni-MH batteries (battery packs) of various voltage values, suitable for scenarios such as solar panels and wind generators.
- Used as a high-power LED constant current driver module.
It has two modes: constant voltage and constant current, with an indicator light to show which mode the module is currently in.
When used as a lithium battery charger, you can set the float voltage and charging current. There is an indicator light to show whether it is charging or fully charged.
It has current limiting protection function, and the module will not be burned even if the output is short-circuited.

Technical Specifications

Input Voltage	4-38V DC (Buck operation is possible. To adjust output current, power supply above 6.5V is required.)
Output Voltage	Continuously adjustable from 1.25-32V
Output Current	Adjustable, maximum 5A
Output Power	Maximum 75W
Operating Temperature	-40~+85℃
Operating Frequency	180KHz
Conversion Efficiency	Up to 96%
Short-Circuit Protection	Yes (Current limited to 8A)
Over-Temperature Protection	Yes (Automatically shuts off output when overheated)
Input Reverse Polarity Protection	No (If needed, connect a high-current diode in series with the input)
Installation Method	4×3mm screws, terminal blocks or welding terminals. V-IN is input.
Wiring Method	V-OUT is output
Dimensions	61.7mm (L) × 26.2mm (W) × 15mm (H)
Weight	25g

XL4015 Datasheet

If you want to learn more XL4015 5A DC-DC Buck Converter Power Module details, you can refer to this datasheet:https://easyelecmodule.com/wp-content/uploads/XL4015_datasheet.pdf

Shipping Cost

We only ship to the United States. Shipping costs are calculated based on the total order amount.

Shipping Method And Delivery Time

All orders will be processed and shipped within 72 hours of placing the order (excluding weekends and holidays). They will ship from Shenzhen, China, primarily via 4PX logistics. Depending on the destination and logistics conditions, other carriers such as DHL, FedEx, UPS, USPS, etc., may also handle the delivery. Estimated shipping time is 7-12 business days, with actual delivery occurring in 10-17 business days, depending on logistics conditions.

Payment:

We accept Visa, Master card, Maestro, American Express, JCB, Dinner's Club, Discover, Paypal, Apple Pay, Google Pay .

Click to enlarge

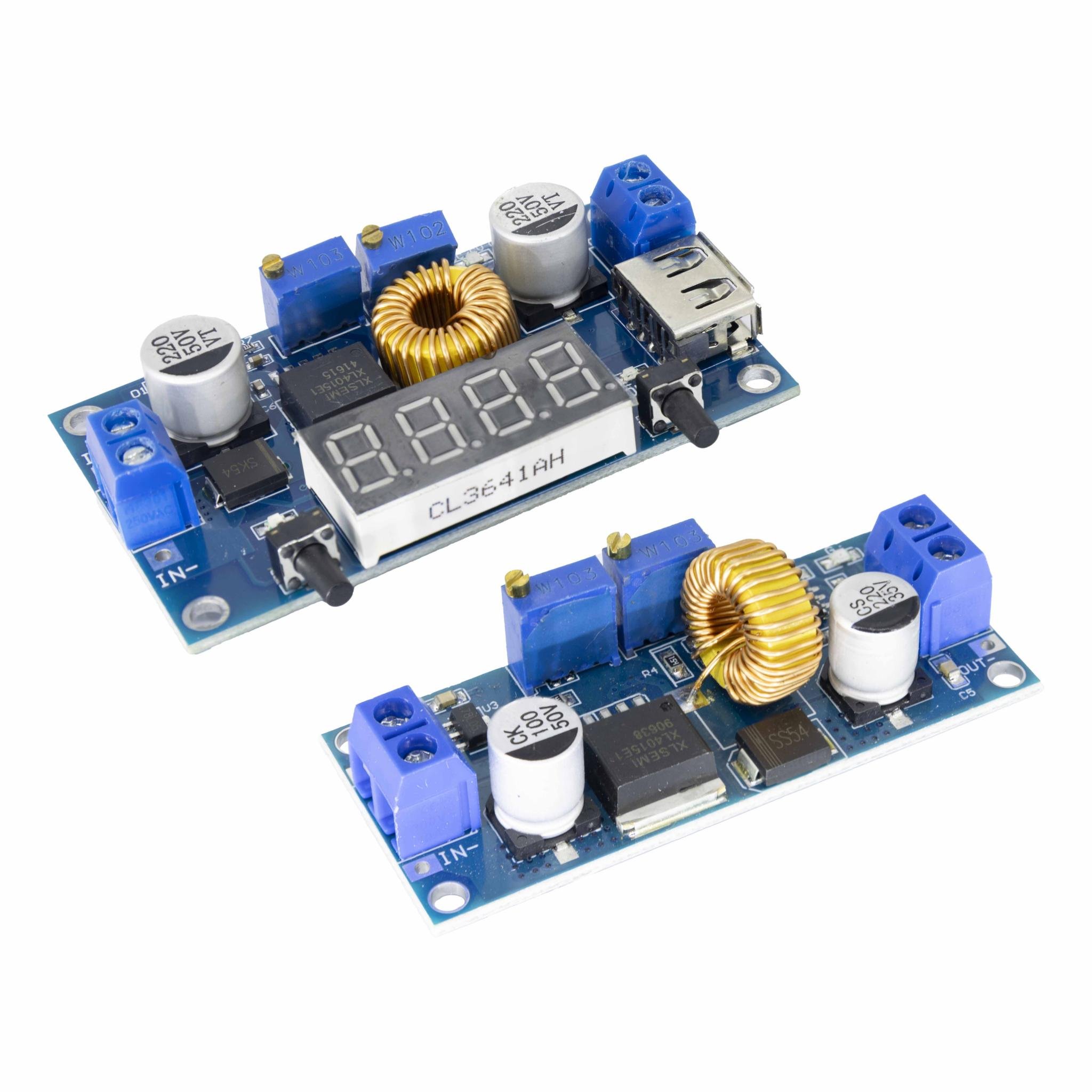

5A XL4015 DC-DC Buck Converter Power Module

Price range: $2.90 through $11.501 pcs

Dimensions	N/A
Brand	easyelecmodule

specification

5A XL4015 DC-DC Buck Converter Power Module——With LED Display

5A XL4015 DC-DC Buck Converter Power Module——With LED Display+ 3D Shell

Add to wishlist

SKU: N/A Category: Buck DC - DC Converter module Tag: xl4015

DESCRIPTION AND FEATURES

Parameter	Value
Input Voltage	5-36V
Output Voltage	Continuously adjustable from 1.25-32V
Output Current	Adjustable, maximum 5A
Output Power	Maximum 75W
Operating Temperature	-40~+85℃
Operating Frequency	180KHz
Conversion Efficiency	Up to 96%
Short-Circuit Protection	Yes (Current limited to 8A)
Over-Temperature Protection	Yes (Automatically shuts off output when overheated)
Input Reverse Polarity Protection	No (If needed, connect a high-current diode in series with the input)
Installation Method	4×3mm screws
Wiring Method	Terminal blocks or welding terminals. V-IN is input, V-OUT is output
Dimensions	68.2mm (L) × 38.8mm (W) × 15mm (H)
Weight	73g

Input Voltage	4-38V DC (Buck operation is possible. To adjust output current, power supply above 6.5V is required.)
Output Voltage	Continuously adjustable from 1.25-32V
Output Current	Adjustable, maximum 5A
Output Power	Maximum 75W
Operating Temperature	-40~+85℃
Operating Frequency	180KHz
Conversion Efficiency	Up to 96%
Short-Circuit Protection	Yes (Current limited to 8A)
Over-Temperature Protection	Yes (Automatically shuts off output when overheated)
Input Reverse Polarity Protection	No (If needed, connect a high-current diode in series with the input)
Installation Method	4×3mm screws, terminal blocks or welding terminals. V-IN is input.
Wiring Method	V-OUT is output
Dimensions	61.7mm (L) × 26.2mm (W) × 15mm (H)
Weight	25g
