5A DC-DC Voltage Reduction and Stabilization Power Module
5A DC-DC step-down & stabilization module using the LM2596S: high-efficiency, wide voltage compatibility, stable output for industrial/automotive/portable devices.
| Brand |
easyelecmodule |
|---|
Product Introduction

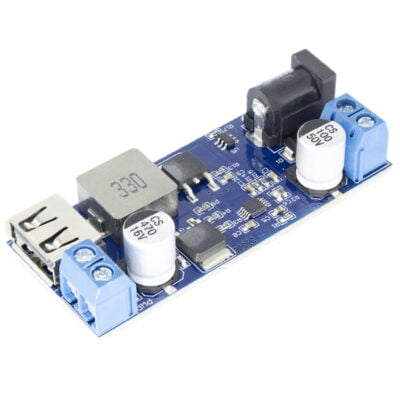

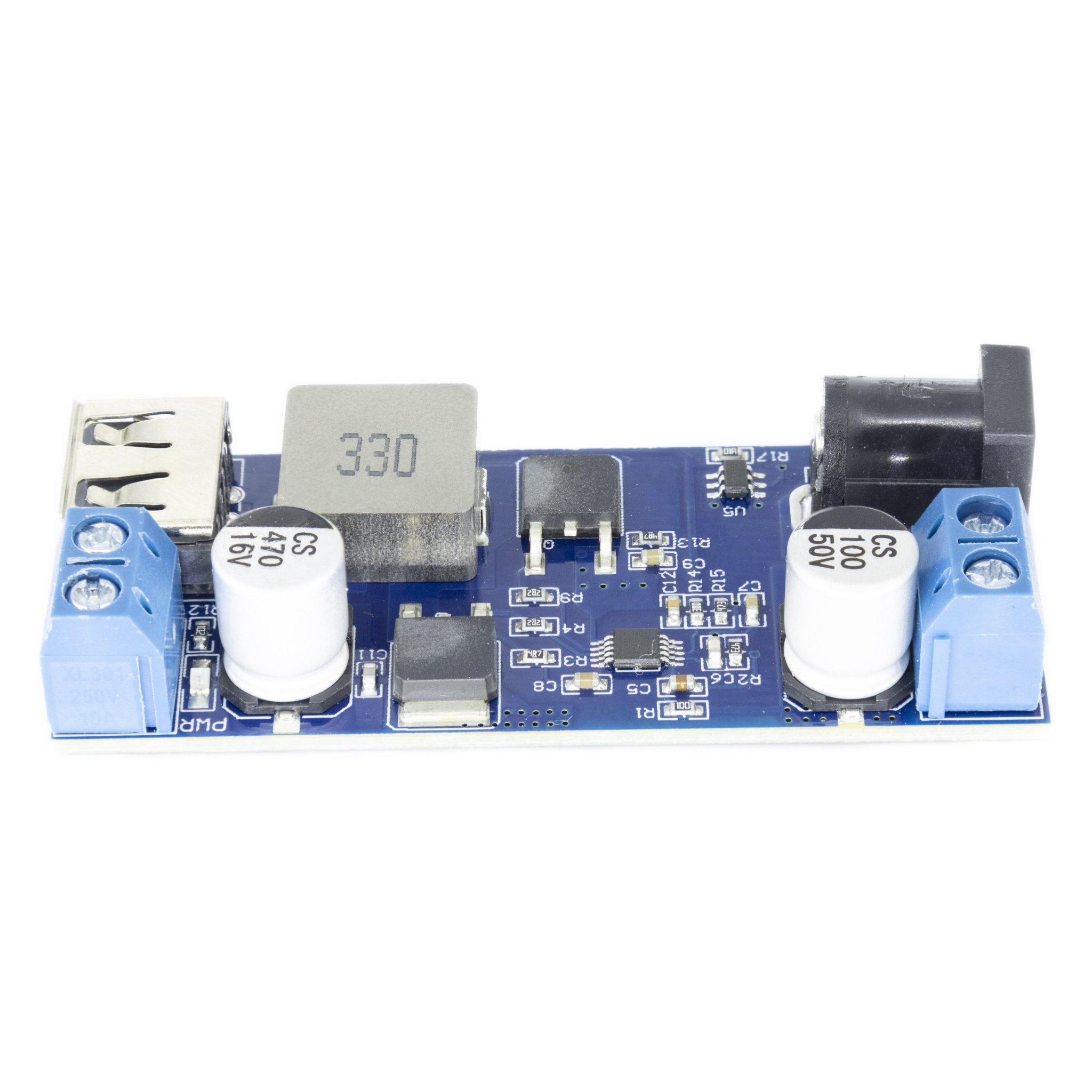

This DC-DC step-down power module converts 24V or 12V input voltage to a stable 5V output, supporting up to 5A of output current. It is ideal for powering various 5V devices such as microcontrollers, sensors, LED strips, and wireless modules. The module features an LM2596S buck converter chip, offering high efficiency, low heat generation, and stable output characteristics. The enclosure design effectively protects the internal circuits, ensuring stable operation over time.
About this Module
- Input Voltage Range:12V to 24V DC
- Output Voltage:Stable 5V DC
- Output Current:Up to 5A
- High Performance:Suitable for continuous high-load power supply needs
- Compact and Convenient:Ideal for embedded systems, microcontrollers, sensors, etc.
- Module Size:Compact design for easy integration
Parameter
| Parameter | Details |
|---|---|
| Working Voltage | DC 9V-36V |
| Output Voltage | 5.2V/5A/25W |
| Output Capability | 9-24V Input: Output 5.2V/6A/30W 24-32V Input: Output 5.2V/5A/25W 32-36V Input: Output 5.2V/3.5A/18W |
Notes for Attention
- Check input voltage: Ensure the input voltage is within the module’s range (9V–36V).
- Current limit: Do not exceed the rated current (5A) to avoid overheating.
- Heat dissipation: Use proper cooling, such as heatsinks, when operating near maximum current.
- Adjust output voltage carefully: Use a potentiometer to set the correct output voltage.
- Wiring: Use appropriate gauge wires to handle the current safely.
By following these guidelines, you can ensure the reliable performance and longevity of the LM2596S DC-DC step-down voltage regulator module in your applications.
Application
The LM2596S DC-DC step-down voltage regulator module is a versatile and reliable power supply solution for various applications, from embedded systems to battery-powered devices, automotive systems, and even solar-powered electronics. Its efficiency, compact size, and wide output voltage range make it an excellent choice for powering a wide range of projects.
