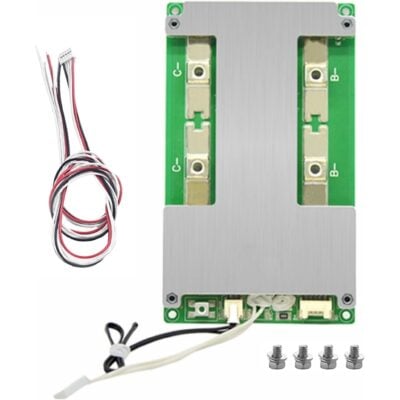

Battery-management-systems-BMS-4S
$43.331pcs
The 4S-BMS-MM32L073 models are all-in-one Battery Management Systems (BMS). Their key functions include: single-cell voltage detection, temperature detection, high-voltage detection, battery balancing control, support for CAN/485/TTL communication protocols, Bluetooth (for mobile app connectivity), sleep/wake-up control, delayed power-off function, State of Charge (SOC) estimation, and MOSFET control.
| Dimensions | 140 × 85 × 10 mm |
|---|---|
| Brand |
easyelecmodule |
3143 in stock
Volume pricing is available starting at quantity 5 pieces. Inquire for details.
Product Overview
The 4S-BMS-MM32L073-60A, 130A, and 400A models are all-in-one Battery Management Systems (BMS). Their key functions include: single-cell voltage detection, temperature detection, high-voltage detection, battery balancing control, support for CAN/485/TTL communication protocols, Bluetooth (for mobile app connectivity), sleep/wake-up control, delayed power-off function, State of Charge (SOC) estimation, and MOSFET control.
Block Diagram
System Topology
Key Components BOM List
Component Type | Model | Supplier |
Main Control | MM32L073 | 灵动微 |
Acquisition Chip | DVC006 | 集澈 |
Power | 104RONS | Silan Microelectronics |
Interface Pin

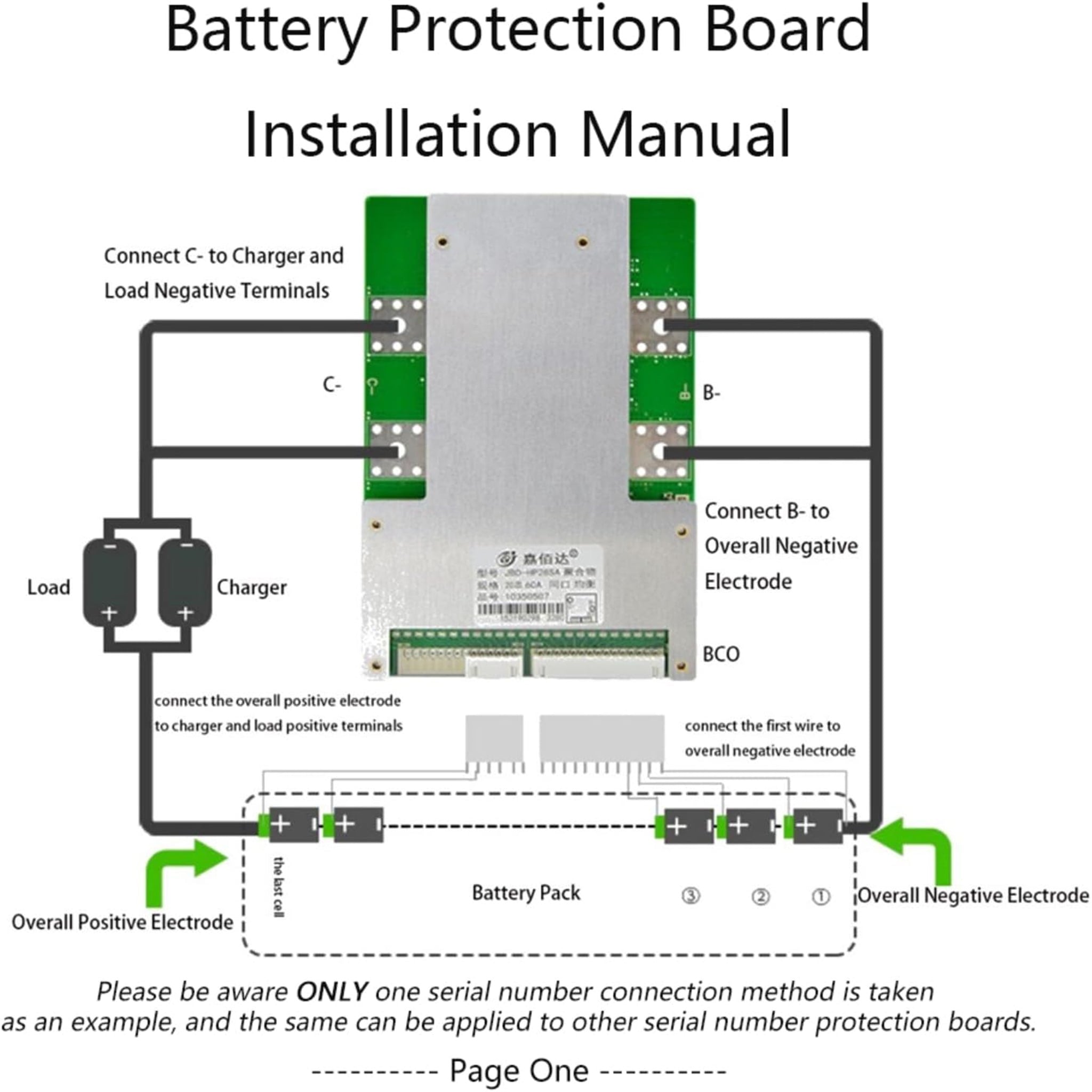

Wiring Diagram
Hole Position Dimension Diagram
