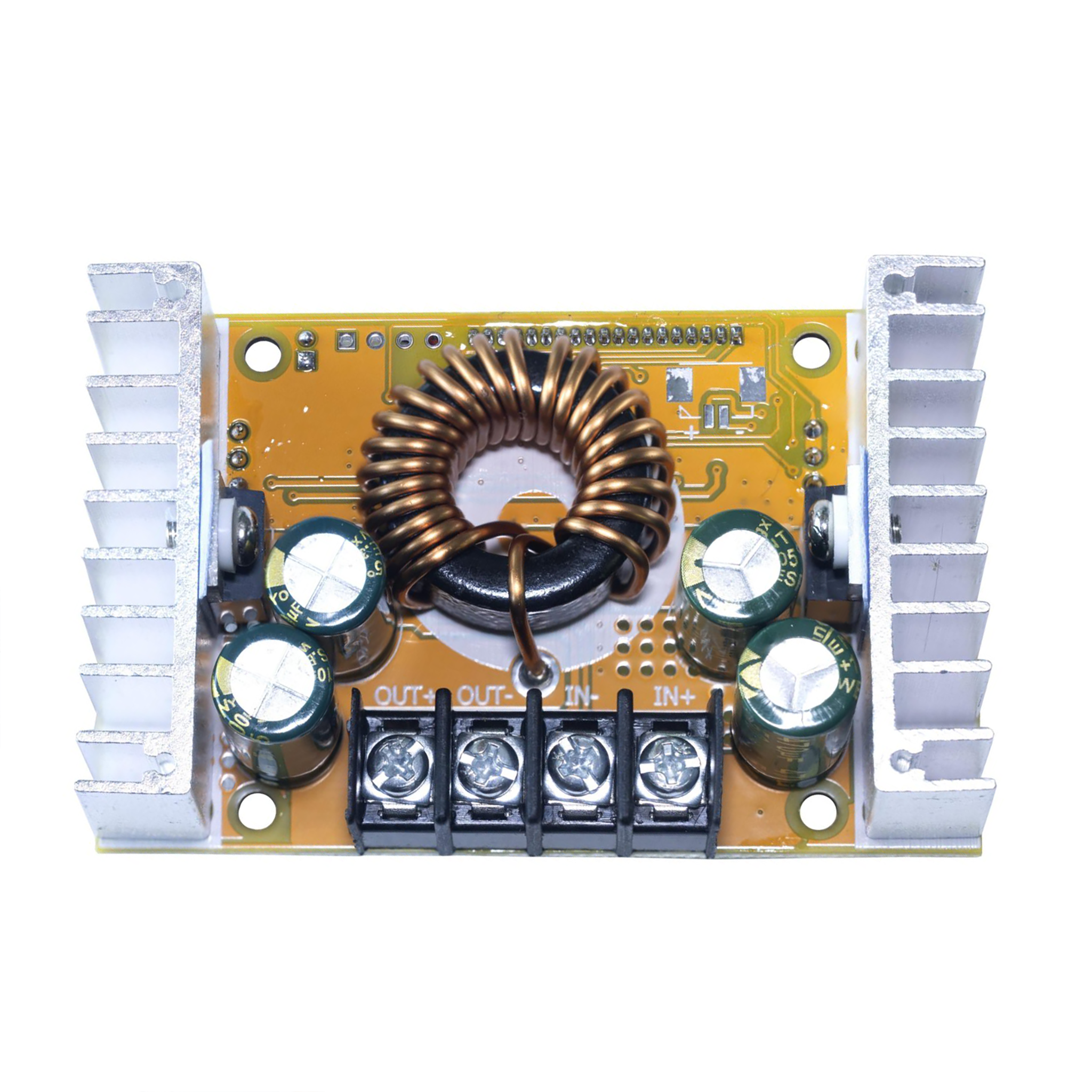

DC-DC adjustable buck converter module (10A)
$19.901pcs
The DC-DC adjustable buck converter module (10A) provides efficient step-down voltage regulation with adjustable output. It supports high current output and is suitable for power management in embedded, industrial, and electronic applications.
| Dimensions | 80 × 53 mm |
|---|---|
| Brand |
easyelecmodule |
2648 in stock
product description
Based on the basic function of a buck converter, this module has many additional features. It allows you to adjust the output voltage and current by rotating the potentiometer to reach your desired levels. Additionally, it is equipped with an OLED screen for you to monitor the currently adjusted voltage and current, facilitating precise control. There are also two buttons – the upper one is the setting button and the lower one is the confirmation button, which are used to switch modes:
① view input voltage and power;
② view output voltage and power;
③ alternately view input voltage/current and output voltage/current.
After switching modes, you need to press the confirmation button to see the current value. Pressing the confirmation button again after confirming the mode can turn off the OLED screen. It is suitable for applications within 150W, with an input voltage range of 7V-36V and an output voltage range of 1.5V-35V.
Function Description
electrical parameters
| Parameter | Specification |
|---|---|
| Input Voltage | 7V-36V |
| Output Voltage | 1.5V-35V continuously adjustable (Input must be at least 1.5V higher than output) |
| Output Current | Adjustable, max 10A (Recommended below 8A, natural cooling below 5A or 70W) |
| Output Power | Max 150W (Recommended below 100W, reduce power at large voltage differences) |
| Operating Temperature | -20°C ~ +75°C (Monitor power tube temperature, enhance cooling if exceeded) |
| Switching Frequency | 300KHz |
| Conversion Efficiency | Up to 95% |
| Short Circuit Protection | Yes (Constant current value equals current setting) |
| Reverse Polarity Protection | Yes |
| Reverse Current Protection | No (Add diode when used for charging) |
| Connection Method | Terminal or soldering (IN for input, OUT for output) |
Module Size
Target users
Engineers, electronic enthusiasts, circuit testers, etc.
