W3001 Temperature Control Module 220V
$3.131pcs
The W3001 220V module runs directly on AC 220V, no adapter needed. MCU based closed loop control ensures accuracy and safety for industrial and home high voltage applications.
| Dimensions | 60.0 × 45.0 × 31.0 mm |
|---|---|
| Brand |
easyelecmodule |
2664 in stock
Introduction
The W3001 220V Microcontroller Module is an industrial-grade intelligent control core component specifically designed for high-voltage AC power supply scenarios. It can operate directly from the mains (AC 220V) without an additional power adapter. The module integrates a high-performance MCU, precision signal detection circuitry, and a high-power drive unit. With its stable closed-loop control capability and comprehensive safety protection design, it is widely suitable for industrial automation, smart homes, power monitoring, intelligent security, and other high-voltage control applications, providing precise and reliable intelligent control solutions for equipment.
Core Features
- High-voltage compatibility, plug-and-play: Supports direct power supply from AC 220V mains, with a wide voltage adaptation range (±15% fluctuation). No additional power supply configuration is required, making it suitable for most industrial and residential power supply environments. Simple wiring—just power on and it’s ready to use.
- Safety protection, stable and reliable: Adopts a complete isolation design for high and low voltage circuits, achieving electrical isolation between input/output and control loops through optocoupler isolation technology, effectively resisting electromagnetic interference and high-voltage crosstalk. Built-in quadruple protection mechanisms for overvoltage, overcurrent, short circuit, and overtemperature, along with a spike absorption circuit that absorbs spike pulses generated when inductive loads are switched off, preventing component damage. The mean time between failures exceeds 50,000 hours.
- Wide temperature adaptation and high environmental tolerance: Utilizes industrial-grade components with an operating temperature range of -40°C to 85°C and a relative humidity range of 40% to 80% RH. Capable of stable operation under harsh conditions such as extreme temperatures and humidity, making it suitable for complex environments like outdoor and industrial sites.
Parameter
| Parameter | Specification |
|---|---|
| Product name | Microcomputer temperature controller |
| Input | NTC10k waterproof probe L=1 meter |
| Model | W3001 |
| Output type | direct output |
| supply voltage | 220V |
| Temperature range | -50~110℃ |
| Installation hole spacing | 73mm(hole spacing 4mm) |
| Output capacity | Maximum size: 10A |
| Country accuracy | 0.1℃ |
| Pload | 1500W |

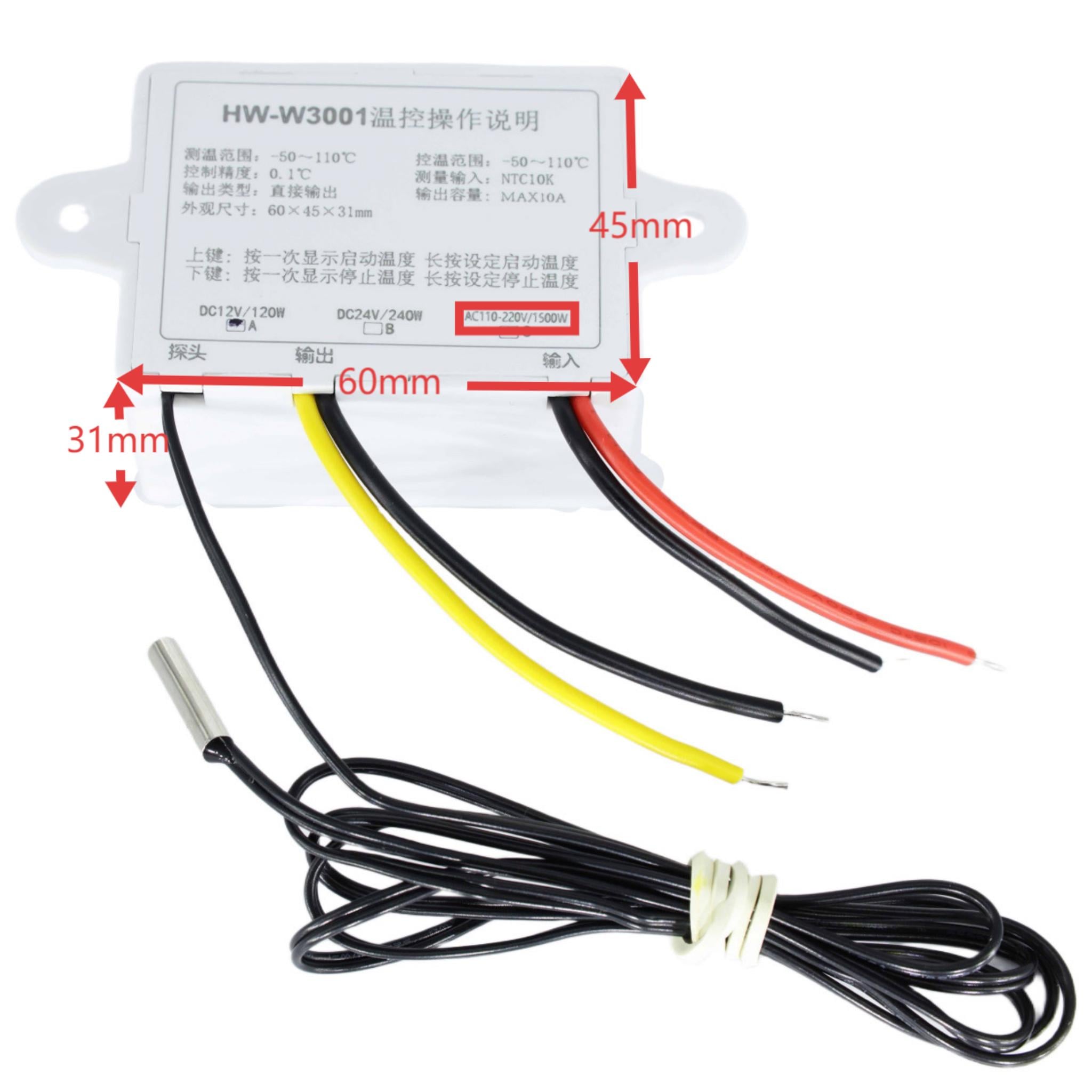

| Dimensions | 60 * 45 * 31mm |
Installation Overview
Internal Installation: It can be used directly with power inside a control box or control cabinet. The design includes a rear cover for safety and reliability, and it has low environmental requirements for use.
Cutout Installation: Drill two holes at the desired installation location, with a hole center distance of 73mm and a hole diameter of 4mm.
Direct Use: The W3001 Smart Thermostat is a standalone product. With its sturdy 1.8mm thick ABS flame-retardant housing, it is perfectly suitable for a variety of applications. Its user-friendly and practical operation and settings make it the ideal temperature control assistant by your side.
Fault Diagnosis Instructions
How to Restore Factory Settings

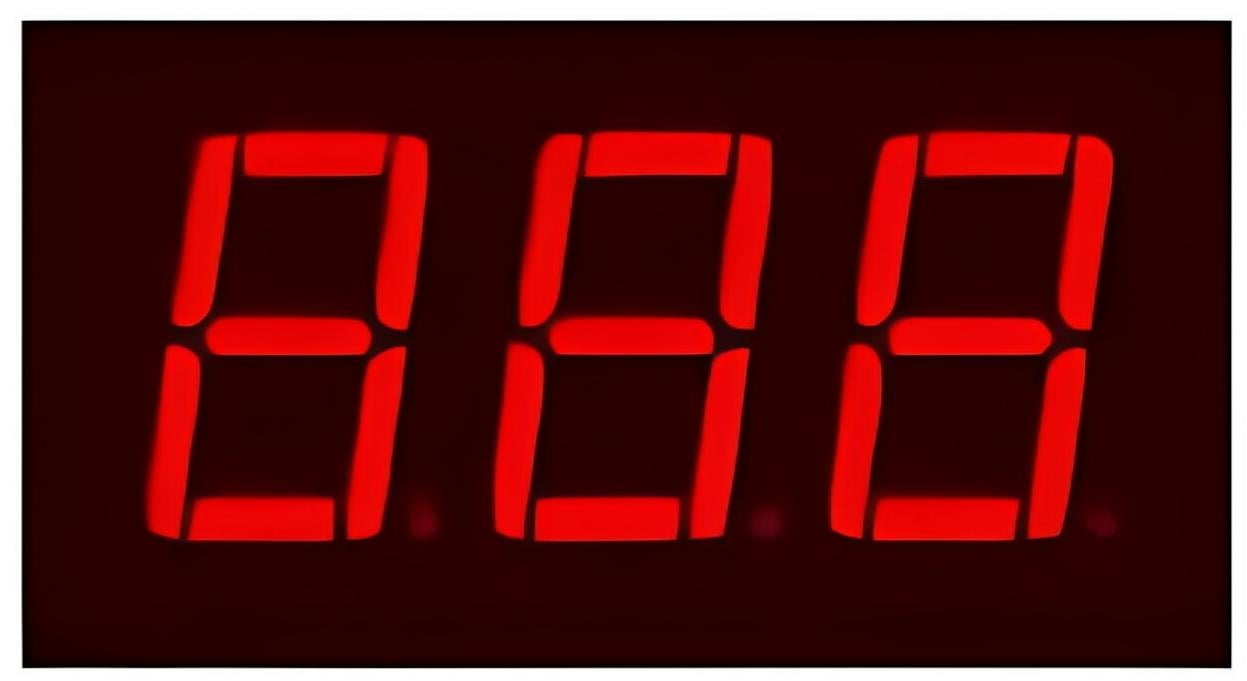

While powered on, simultaneously press and hold the up and down keys for about 3 seconds. After the digital tube displays “888,” it will automatically switch to the detected temperature, indicating that the factory settings have been successfully restored.

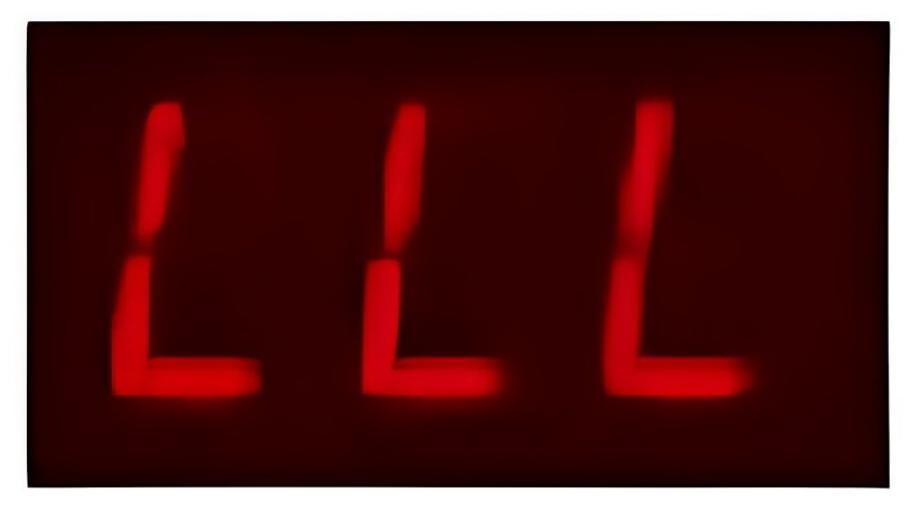

The digital tube displays LLL
The digital tube displaying three “LLL” indicates a sensor malfunction. You can replace the sensor to resolve the issue.

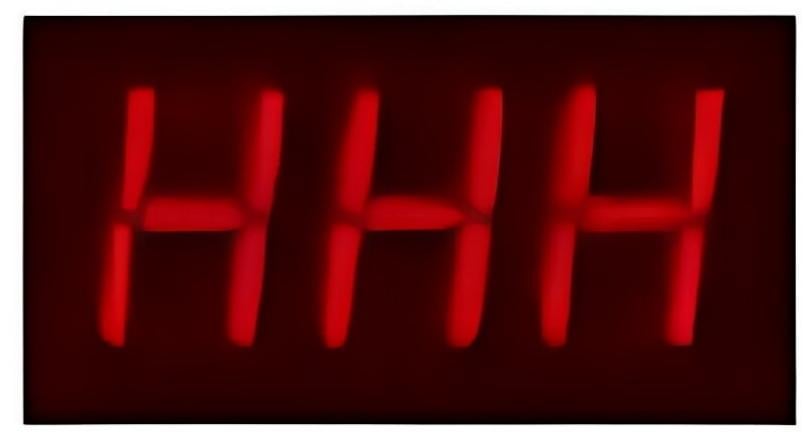

The digital tube displays HHH
The digital tube displaying three “HHH” indicates that the detected temperature by the sensor exceeds the measurement range. You can try changing the usage environment to see if it returns to normal.
Application Scenarios
Control Cabinet Cooling System: Control cabinets may operate continuously, and heat generation from high-power equipment is inevitable during operation. Effective heat dissipation is essential to enhance the overall reliability of the system. Installing and using a thermostat inside the control cabinet is the optimal choice.
Applications for Various Cabinet Systems: This thermostat operates on a direct output mode, making it suitable for direct temperature control or for integration with other electronic devices to achieve low-voltage control over high-voltage systems.
Computer Host Temperature Control: When the temperature reaches the level requiring cooling, the system will automatically initiate cooling, saving both effort and energy. The cooling needs of computer servers and similar equipment vary across seasons. A thermostat can be used to regulate the cooling and heating systems effectively.
