ISD1820 Voice Recording Module
$3.491pcs
10-second voice recording and playback. drive an 8Ω 0.5W speaker(Included with the package).

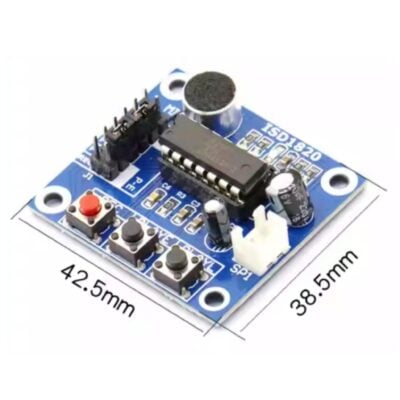

| Dimensions | 42.5 × 38.5 mm |
|---|---|
| Brand |
easyelecmodule |
3207 in stock
Product Specification
Product Name: Voice Recording Module
Main Chip: ISD1820
Size: 42.5mm × 38.5mm
Operating Voltage: DC 3~5V
Product Feature
1.Easy-to-use 10-second voice recording and playback.
2.High-quality, natural voice reproduction.
3.Can function as a megaphone module.
4.Supports loop playback, point playback, and single playback.
5.Controllable via a microcontroller.
6.Can directly drive an 8Ω 0.5W small speaker. (Included with the package)
7.Control Methods: Button control or microcontroller (control line IO is already exposed).
Operation Method
REC Button: Recording button. Press and hold to record; release to stop.
PLAYE Button: Trigger-mode playback. Press once to play the entire recorded segment.
PLAYL Button: Point-mode playback. Press and hold to play; release to stop.
RPL Jumper: Loop playback control (enables continuous loop playback).
The easiest way is to connect it to a DC power supply (3–5V) and use button control directly—then you’ll have a voice recorder! It supports loop, single, and point playback, even a complete novice can use it. Of course, you can also connect it to a microcontroller (like an Arduino board) to add more functions.
