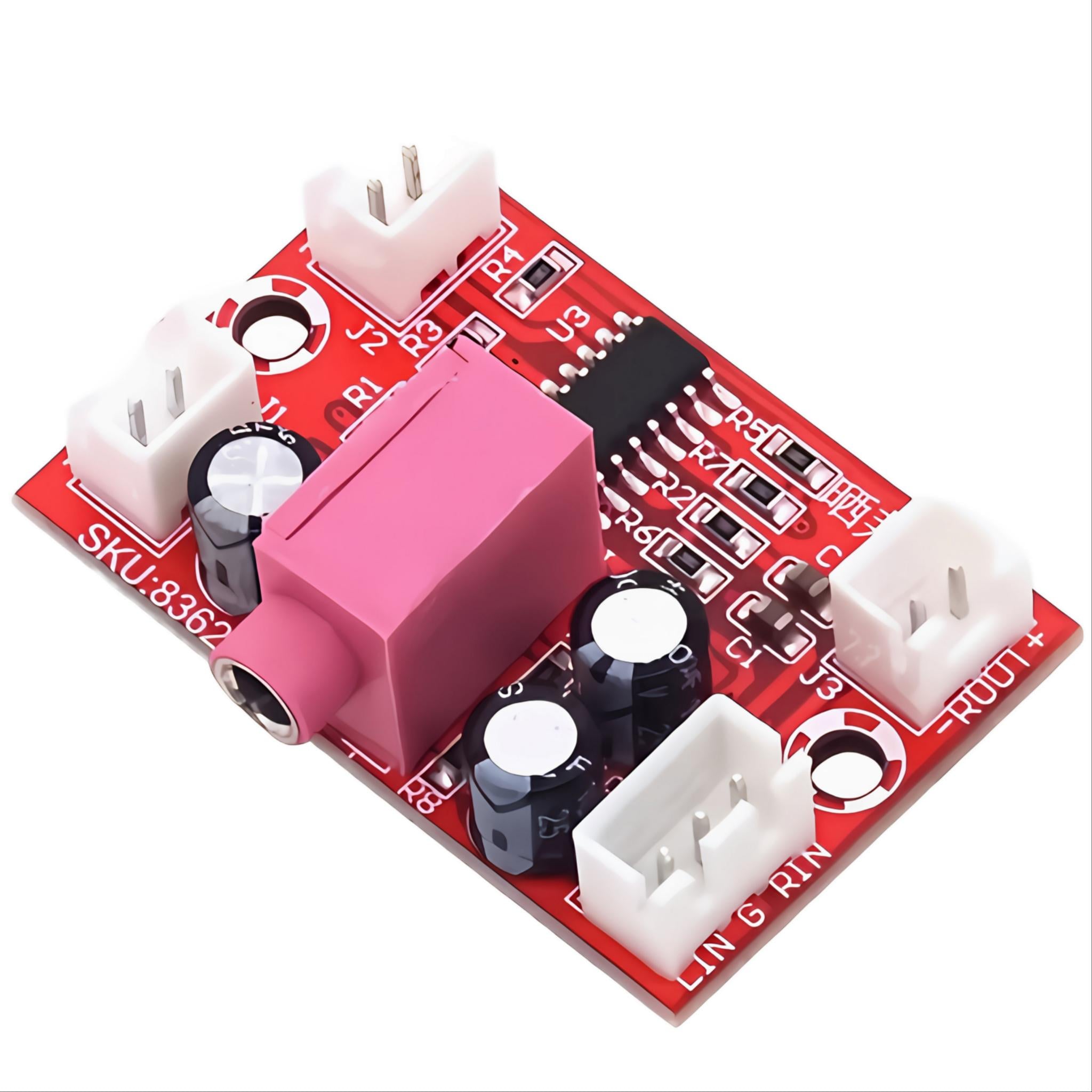

LM4863 Mini Dual-Channel Audio Power Amplifier Board
$2.511pcs
The LM4863 is a dual-channel power amplifier featuring high output power and low distortion characteristics, making it widely used in audio systems.
| Dimensions | 43.0 × 28.0 mm |
|---|---|
| Brand |
easyelecmodule |
3693 in stock
Product Introduction
1.LM4863 is a dual BTL (Bridge-Tied Load) audio power amplifier IC that delivers stable gain output. When powered by a 5 V supply, it can continuously provide 3 W of undistorted output power with THD+N (Total Harmonic Distortion plus Noise) below 1.0%. In addition, it can operate in single-ended (SE) mode to drive stereo headphones or be used as a preamplifier.
2.LM4863 is designed for audio systems and uses SMT (Surface-Mount Technology), simplifying the peripheral circuitry of audio designs. With only a small number of external components, the system can achieve high-quality audio output.
3.LM4863 features an externally controlled low-power shutdown mode, a stereo headphone amplifier mode, and an internal thermal shutdown protection mechanism. These characteristics significantly improve SNR (Signal-to-Noise Ratio) and reduce distortion.
4.LM4863 includes an internal thermal shutdown protection circuit, enabling long-term stable operation and reducing the risk of damage or burnout.
Key Features
Stereo headphone amplifier mode.
Stable gain output.
Thermal shutdown protection circuit.
Product Specifications
Product Name: LM4863 Mini Power Amplifier Board with Headphone Amplifier (Headphone Amp).
Operating Class: Class AB.
Channel Configuration: 2.0 dual-channel.
Output Power: 3 W + 3 W.
Recommended Speaker: 3–20 W, 4 Ω.
Power Supply: DC single supply 2–5.5 V, ≥ 1 A.
THD+N (Total Harmonic Distortion plus Noise): ≤ 1.0%.
SNR (Signal-to-Noise Ratio): ≥ 90 dB.
Frequency Response: 50 Hz–20 kHz.
Operating Temperature: -20 to 85 °C.
Dimensions: 43 × 28 × 15 mm.

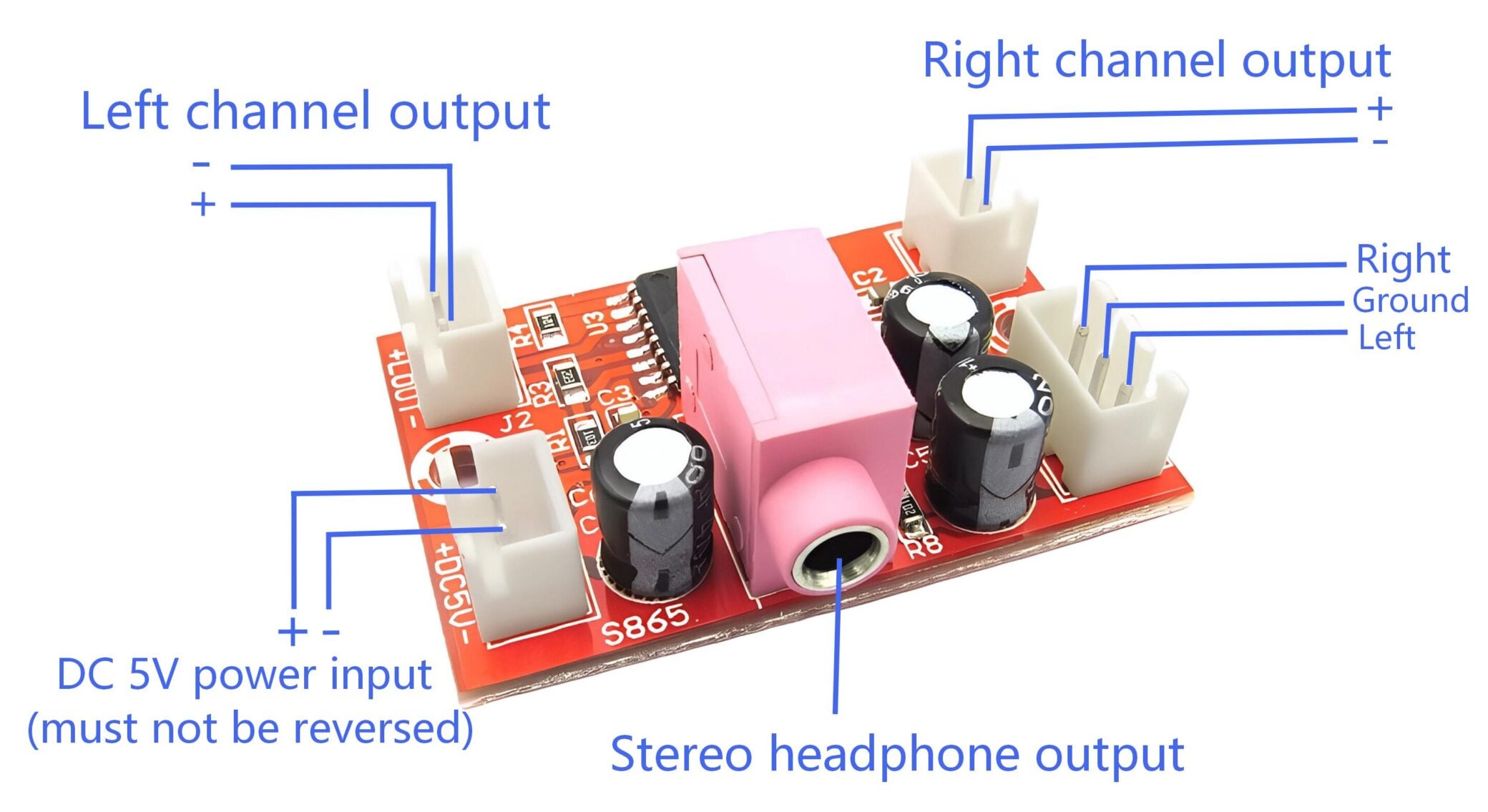

Wiring Diagram
Relative Information
Applications
Portable devices.
Desktop computers.
Laptop computers.
Multimedia monitors.
Portable video devices.
