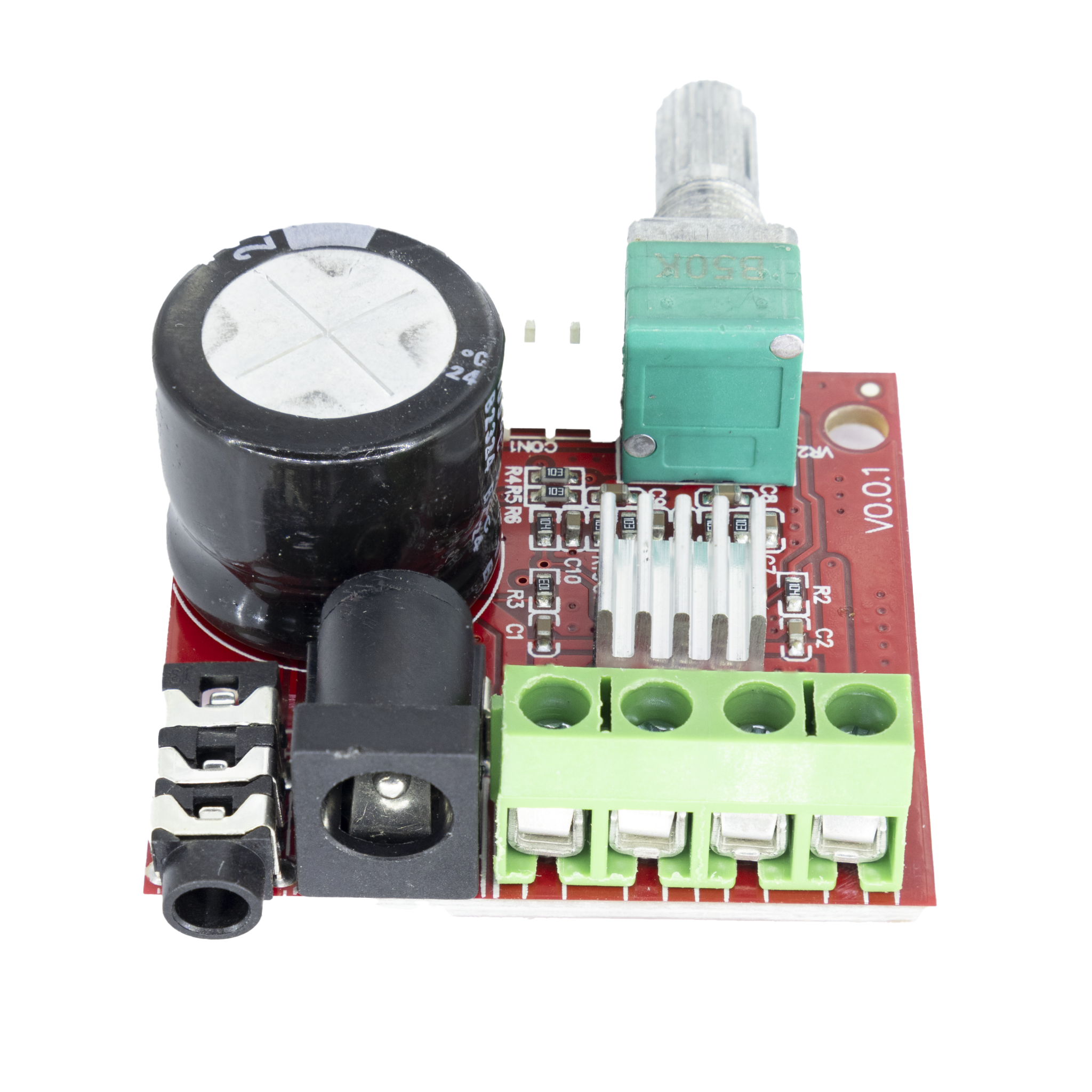

PAM8610 Dual-Channel Digital Mini Amplifier Board
$4.001 pcs
Ultra-compact size, high power output, ≥90% high efficiency with low power consumption, low distortion, low electromagnetic interference
| Dimensions | 40 × 40 mm |
|---|---|
| Brand |
easyelecmodule |
3124 in stock
Product Introduction
The PAM8610 Dual-Channel Digital Amplifier Board is a mini amplifier module based on Class D digital audio amplification technology. It uses an imported original Longding micro Class D amplifier chip, with the core advantage of highly integrating traditional amplifier circuits
1.Core Advantages
- Adopts the PAM8610 chip: Filterless design, low quiescent current, low electromagnetic interference, low power consumption, and low heat generation.
- User-friendly operation:Equipped with an LED power indicator, power switch, and mute switch.
Built-in noise reduction circuit for clearer sound.
- Safe to use:Features overcurrent, overtemperature, and short-circuit protection.

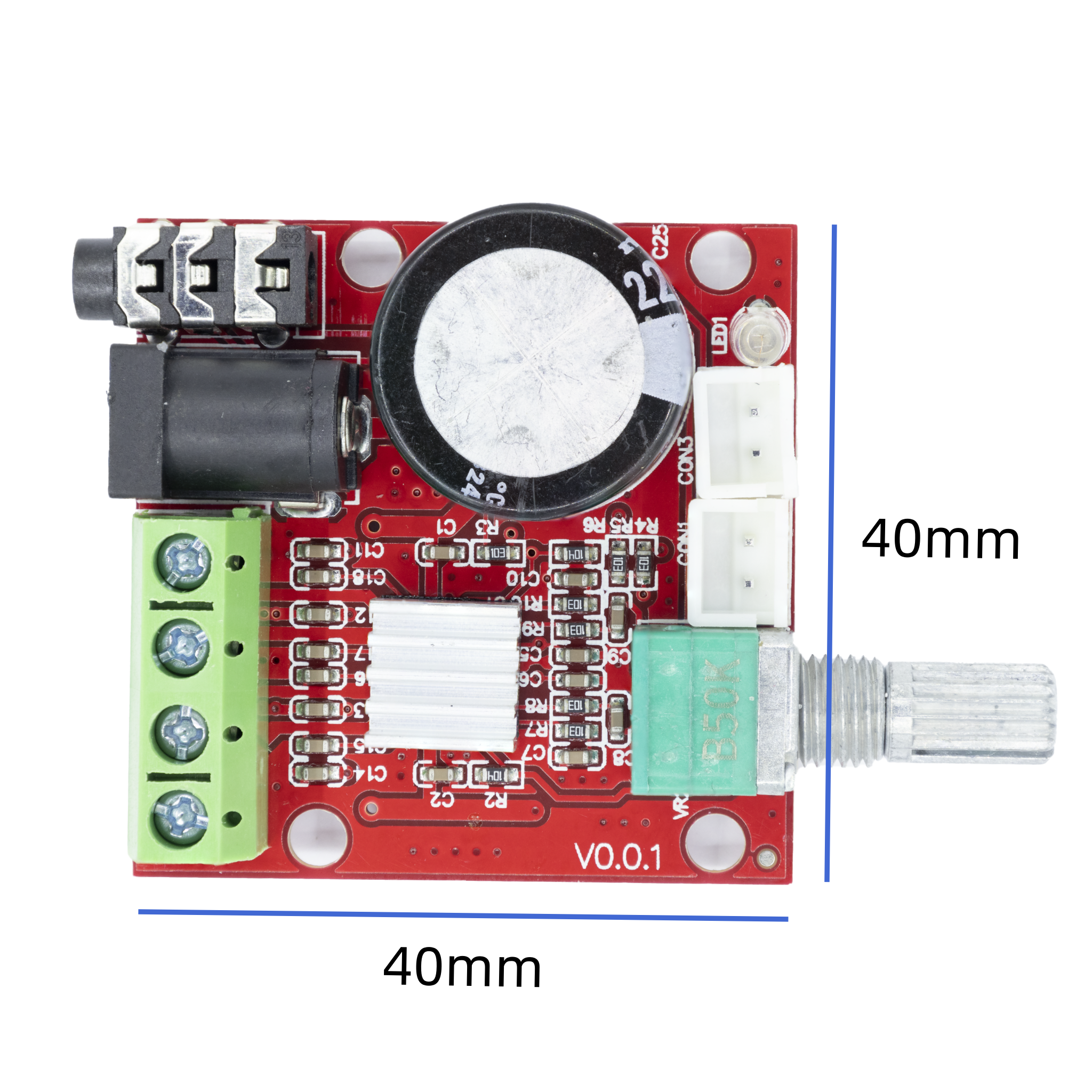

- Ultra-small size: Only 40×40×15mm (including heatsink), can be embedded in devices as small as a business card case.
- High power output:2×10W under 8Ω load and 2×15W under 4Ω load, sufficient to cover a 10㎡ space.
- Class D efficiency: ≥90% efficiency, low heat generation — only a micro heatsink is needed for stable operation in the 40mm small size.
- Plug-and-play for beginners: On-board volume potentiometer and debug-free interfaces, ready to use after wiring.
2.Product Specifications
| Parameter Dimension | Specific Specifications | Description |
|---|---|---|
| Size | 40×40×15mm (including heatsink) | Mini size, fits into compact devices |
| Operating Voltage | DC 12V (optimal) | Best power and efficiency at 12V |
| Output Power | 2×10W (8Ω) / 2×15W (4Ω) | Drives most desktop/car speakers effortlessly |
| Audio Input | Dual-channel analog input (R/L) | Compatible with phones, computers, MP3 players, etc. |
| Load Impedance | 4Ω-8Ω | Works with mainstream consumer speakers |
| Distortion Rate | ≤0.1% (1kHz/10W) | Low distortion ensures clear sound |
| Efficiency | ≥90% (Class D feature) | Low power consumption; 12V/2A power supply suffices for full-power operation |
3.PAM8610 Amplifier Board datasheet
We provide you with the PAM8610 datasheet for your reference：
