TEMT6000 Light Sensor
$2.001pcs
The TEMT6000 is an ambient light sensor that can detect light intensity and output analog voltage signals.
| Dimensions | 14 × 8 mm |
|---|---|
| Brand |
easyelecmodule |
3465 in stock
TEMT6000 Descrption
The TEMT6000 is an ambient light sensor based on a silicon phototransistor. Its spectral response range is close to the human eye’s visual curve, enabling it to accurately detect the intensity of visible light. This sensor outputs analog voltage signals—with higher light intensity resulting in higher output voltage—and can be directly connected to the ADC pin of a microcontroller. It features high sensitivity, fast response speed, and good temperature stability, with an operating voltage of 3.3V-5V and extremely low power consumption. It is widely used in fields such as automatic backlight adjustment for smartphones and tablets, lighting control in smart homes, and environmental sensing for IoT (Internet of Things) devices, providing intelligent light-sensing functionality for electronic equipment.

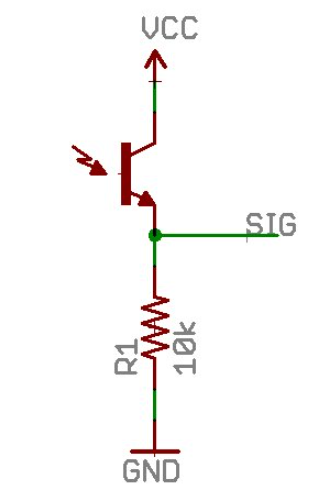

TEMT6000 schematic
TEMT6000 Performance Parameters
| Operating Voltage | 3.3~5.5V |
| Operating Temperature | -40~85°C |
| Illuminance Range | 1 – 1000Lux |
| Output Signal | Analog Voltage, 0 – 5V at 5V Operating Voltage |
TEMT6000 Pinout
TEMT6000 Pinout:
①OUT:AOUT(ADC) ②VCC:3.3V-5.5V ③GND:Ground
TEMT6000 Application Fields
The TEMT6000 finds wide application in many fields. For example, in consumer electronic products, it can be used as a sensor for detecting obstructions/shielding. In smart homes, it enables light intensity-based adjustments. Additionally, it has broad application potential in fields such as in-vehicle systems, industrial automation, agriculture, and the Internet of Things (IoT).
