OPT101 Light Sensor

$9.701pcs

OPT101 is a monolithic photoelectric sensor that can directly output analog voltage signals. It features high sensitivity, a wide range, and single-power supply operation.

Dimensions

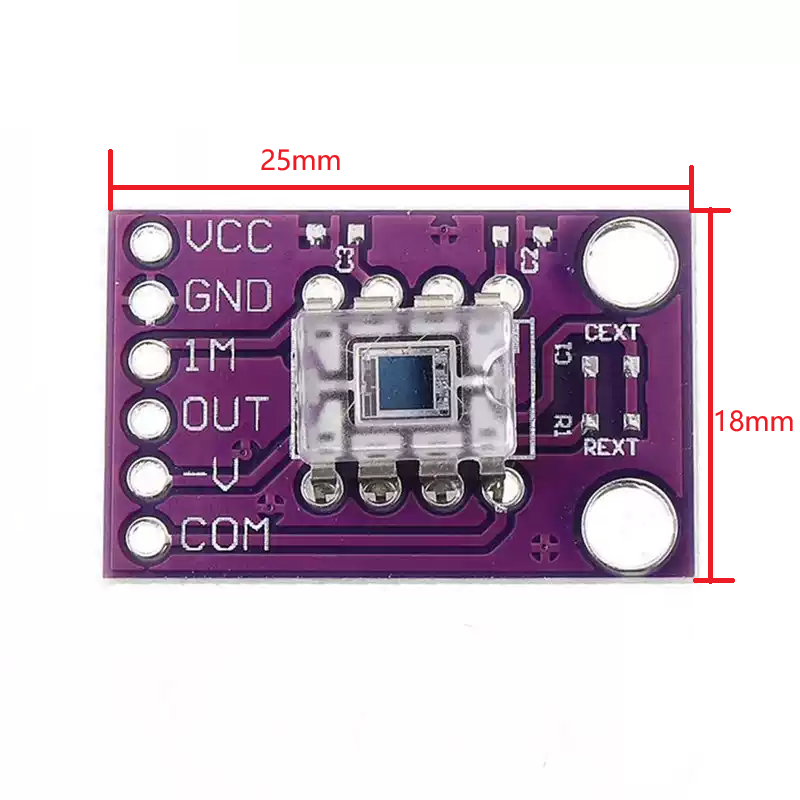

25 × 18 mm

Brand

easyelecmodule

3151 in stock

DESCRIPTION AND FEATURES

OPT101 Descrption

The OPT101 is a highly integrated monolithic photoelectric sensor composed of a photodiode and a transimpedance amplifier. This device can directly convert light signals into voltage signals for output, eliminating the need for an external amplification circuit. Its internally integrated high-gain amplifier provides excellent sensitivity and linearity, with an operating voltage range of 2.7V to 36V, making it suitable for single-power-supply applications.

The OPT101 features a wide spectral response range (400nm to 1100nm) and a bandwidth of 5MHz, along with fast response speed. It comes in an 8-pin DIP or SOIC package, offering a compact size and easy operation. The output voltage exhibits a good linear relationship with light intensity, with a typical sensitivity of 0.45V/μW.

It is widely used in fields such as light intensity detection, pulse oximeters, smoke detectors, industrial automation, barcode scanners, and medical diagnostic equipment, providing a reliable single-chip solution for optical measurement.

OPT101 schematic

OPT101 Performance Parameters

Supply Voltage	2.7V to 5.5V
Operating Temperature Range	-40℃ to +85℃
Photodiode Area	Approx. 1mm²
Transimpedance Gain	10^5 Ω (Typical)
Output Current Range	0μA to 2mA
Bandwidth	30kHz (Typical)

OPT101 Pinout

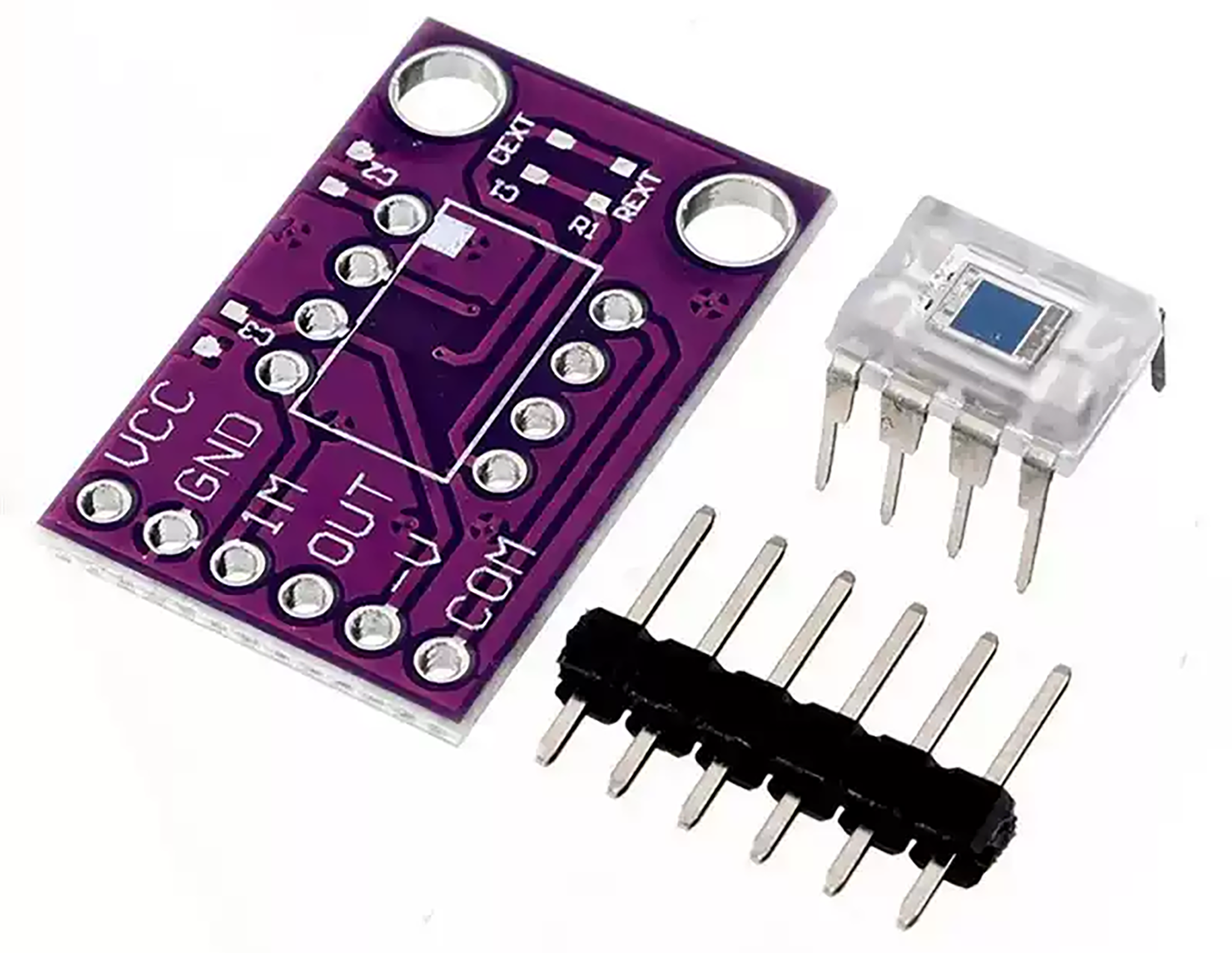

OPT101 Pinout: ①VCC: +2.7V – 36V ②GND: Ground ③1M: 1MΩ Resistor ④OUT: ADC ⑤-V: Ground or Vcc- ⑥COM:Ground

OPT101 Datasheet

OPT101 Application Fields

OPT101 is widely used in medical devices (e.g., pulse oximeters), industrial detection (object counting and liquid level monitoring), security systems (smoke detection), consumer electronics (heart rate monitoring), automotive sensing (rain detection), scientific instruments (laser power monitoring), and communication equipment (fiber optic power detection).
