battery-management-systems-BMS-32S
Price range: $121.24 through $142.97
| Dimensions | N/A |
|---|---|
| Brand |
easyelecmodule |
Volume pricing is available starting at quantity 5 pieces. Inquire for details.
1. Product Overview
The 80A、100A、120A intelligent BMS equipped with a comprehensive range of functions. These functions include cell voltage detection, temperature detection, and high-voltage detection for real-time monitoring of battery status; battery balancing to ensure consistent performance across battery cells; customizable communication interfaces supporting CAN (Controller Area Network), 485, and TTL (Transistor-Transistor Logic) protocols to adapt to diverse application scenarios; GPRS and Bluetooth connectivity (with mobile APP compatibility) for remote data transmission and user interaction; sleep-wake-up control and delayed power-off features for energy conservation and operational safety; State of Charge (SOC) estimation to accurately assess remaining battery capacity; and MOSFET control for precise regulation of battery charging, discharging, and overall operation.
2. Product Display
Label content is subject to the physical product.
3.Core Features
Industry-leading stability and efficiency in BMS technology.
A wide range of models suitable for various scenarios.
Remote technical support available.
3. 1. Hardware
High-Reliability Connectors
Efficient Balancing Control
High Sensitivity Short-Circuit Protection
High-Precision Single-Cell Voltage Detection
Balancing and Sampling Time Division
Comprehensive Support for Preventing Overcharging
Compatible with WiFi and 4G Modules for Remote Communication
3. 2. Software
Customization Support for Special Requirements – DO and DI Customization
Customization Support for Mobile Apps and Mini Programs
Customization of 485, CAN, and TTL Communication Protocols
Supports embedding two sets of parameters with one-key user switching.
Supports idle duration delayed shutdown configuration.
Supports internal resistance compensation and inter-module jumper configuration.
3. 3. Appearance
Customized aluminum plate size.
Customized wire harness length.
4. Product Features
4.1 Serial battery cell voltage acquisition.
4.2 Serial battery cell balancing.
4.3 Current detection.
4.4 Short circuit protection.
4.5 Two-stage overcurrent protection.
4.6 Two-stage overvoltage protection.
4.7 Temperature protection.
4.8 Pre-discharge function.
4.9 Power consumption management.
4.10 Host computer monitoring (Bluetooth app, Windows host computer).
5.Block Diagram
6.System Topology
7.Key Components BOM List
| Component Type | Model | Supplier |
|---|---|---|
| Main Control | HC32L072 | HDSC MCU |
| Acquisition Chip | adc sampling circuit | |
| Power | SVGP157R2NS | Silan Microelectronics |
8. Operation Modes
8. 1. Operating Mode All BMS functions are enabled and operating normally.
8. 2. Standby Mode At this time, all functions except GPS functionality are turned off in the MCU.
8. 3. Shutdown State BMS shuts down, and all functions become unavailable.
9. Basic Functions
9. 1. Bluetooth Function
Allows viewing parameters via the app, setting different cell types, battery series, battery capacity, and displaying protection information, fault records, etc.
9. 2. Single-Cell Voltage Sampling
Supports real-time voltage sampling for up to 24 series individual cells, with a total voltage greater than 30V.
(Supports Li-ion 3-4 series, LiFePO4 3-4 series, Li-Titanate 3-4 series,Sodium-ion 3-4 series.)
9. 3. Temperature Sampling
Samples surface temperature of cells, ambient temperature, MOSFET temperature, and balance circuit temperature.
9. 4. SOC/SOH Calculation
Calculates remaining battery capacity and health status information, providing a more intuitive view of the battery pack’s operational status.
9. 5. MOSFET Drive
Controls power circuit by driving MOSFETs to turn on/off.
9.6 Total Voltage Detection
Can detect if pre-charging is complete and monitor the battery’s total voltage.
9.7 Current Detection
Enables real-time current detection, short circuit protection, sleep-wake functions, and more by measuring current.
9.8 Battery Balancing
Utilizes passive resistor-based energy balancing to effectively maintain the battery and improve consistency. Active balancing can be initiated once conditions are met, with a maximum current of 100mA per channel configurable.
10. Protection Functions
10.1 Overcurrent Charging Protection
During charging, when the current exceeds the set maximum charging current, the corresponding charging MOSFET is turned off to achieve protection.
10.2 Overcurrent Discharge Protection
During discharge, when the current exceeds the set maximum discharge current, the corresponding discharge MOSFET is turned off to achieve protection.
10.3 Overvoltage Charging Protection
When the total voltage or single-cell voltage exceeds the set maximum value, the corresponding charging MOSFET is turned off to achieve protection.
10.4 Undervoltage Discharge Protection
When the total voltage or single-cell voltage falls below the set minimum value, the corresponding discharge MOSFET is turned off to achieve protection.
10.5 Overload Protection and Temperature Protection
When the internal temperature of the battery pack is detected to be below or above the set temperature range, the corresponding charging and discharge MOSFETs are turned off to interrupt charging and discharging processes to achieve protection.
11.Custom Features
11.1 CAN Communication
JN1939 protocol, CAN2.0A/B communication, used for communication with external devices such as vehicle controllers, motor controllers, instruments, and chargers.
11.2 RS485 Communication
Supports RS485 communication with 2500V isolation. Standard baud rate is 19200, and it supports customizing the baud rate. The protocol can be customized by the customer.
11.3 TTL Communication
Supports TTL communication with 2500V isolation. Standard baud rate is 19200, and the protocol can be customized by the customer. External power supply is required, and it provides isolation power supply. (485/TTL can only be chosen one; CAN and 485 share the same isolation power supply)
11.4 GPS port
Can be used with our company’s GPS module or third-party GPS modules that support our company’s protocol. Customized GPS interface to adapt to our company’s GPS module for remote monitoring, real-time battery status, parameter adjustments, firmware upgrades, etc.
12.Technical Parameters
| Function | Content | Remarks |
|---|---|---|
| 1 Built-in Bluetooth | Supports Android and iOS devices | Connects via Bluetooth to view parameters and configure BMS settings |
| 2 Detectable Cell Count | 10-32 cells for lithium-ion batteries | Connects via Bluetooth to configure the number of cells |
| 3 Supported Cell Types | Lithium-ion, lithium iron phosphate, lithium titanium | Connects via Bluetooth to configure the number of cells |
| 4 Power Supply | Battery pack self-powered, 20-100V DC input | <Automatically enters low-power mode> |
| 5 Single Cell Voltage Detection | 0-5V, error within the entire working range < 20mV, typical error < 10mV | Resolution: 1mV |
| 6 Single Cell Voltage Dropout Detection | Supported | |
| 7 Balancing Function | Maximum 100mA passive balancing | Active balancing can be achieved by setting parameters based on conditions |
| 8 Temperature Detection | -40 ~ 125 ℃ | BMS has built-in balancing/MOS/2 channels and supports external 2 channels |
| 9 Total Voltage Detection | Detection range 0-100V, <0.5% FSR (FSR = Full Scale Range) | |
| 10 Current Detection | -150A ~ 300A，<0.5% FSR | |
| 11 SOC Estimation Accuracy | Error < 8% (operational conditions) | Bluetooth connectivity for setting cell type (adaptive change in single-cell protection voltage) |
| 12 Total Cycle AH | Accumulated value, half of the charging and discharging values | |
| 13 Short Circuit Protection | Supported (adjustable) | Can be configured |
| 14 Fault Records | Supported (400 cycle records) | View system logs via Bluetooth, supports platform upload |
| 15 Operating Power Consumption | < 5mA（no communication） | <15mA（485/CAN） |
| 16 Standby power consumption | < 2mA | Automatically wakes up upon charge/discharge detection |
| 17 Operating Temperature | -40 ~ 85 ℃ | |
| 18 Operating Humidity | 5% ~ 95% | |
| 19 Protection Level | IP30 | |
| 20 Weight | < 400g | |
| 21 CAN Interface | 1 channel, supports host computer management | |
| 22 485 Interface | 1 channel, supports host computer management | Selectable between 485 and CAN |
| 23 TTL Interface | 1 channel, supports host computer management | Selectable between 485 and TTL |
| 24 GPS Interface | 1 channel, GPS and Bluetooth can be compatible simultaneously | |
| 26 Accessory Package | 70CM balancing wires, two temperature control wires, 1 set of power switch wires (weight: 89g) |
Heat Dissipation and Overcurrent Capacity
| Specification | Peak (10s) | Maximum Continuous Current (with proper heat dissipation) | Dimensions |
|---|---|---|---|

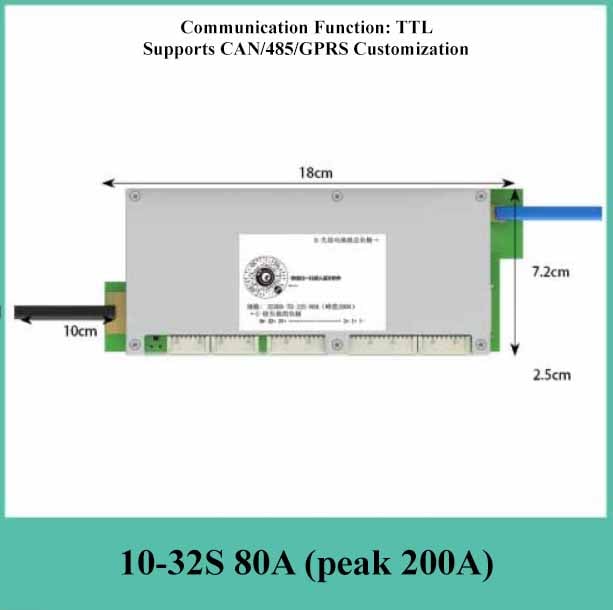

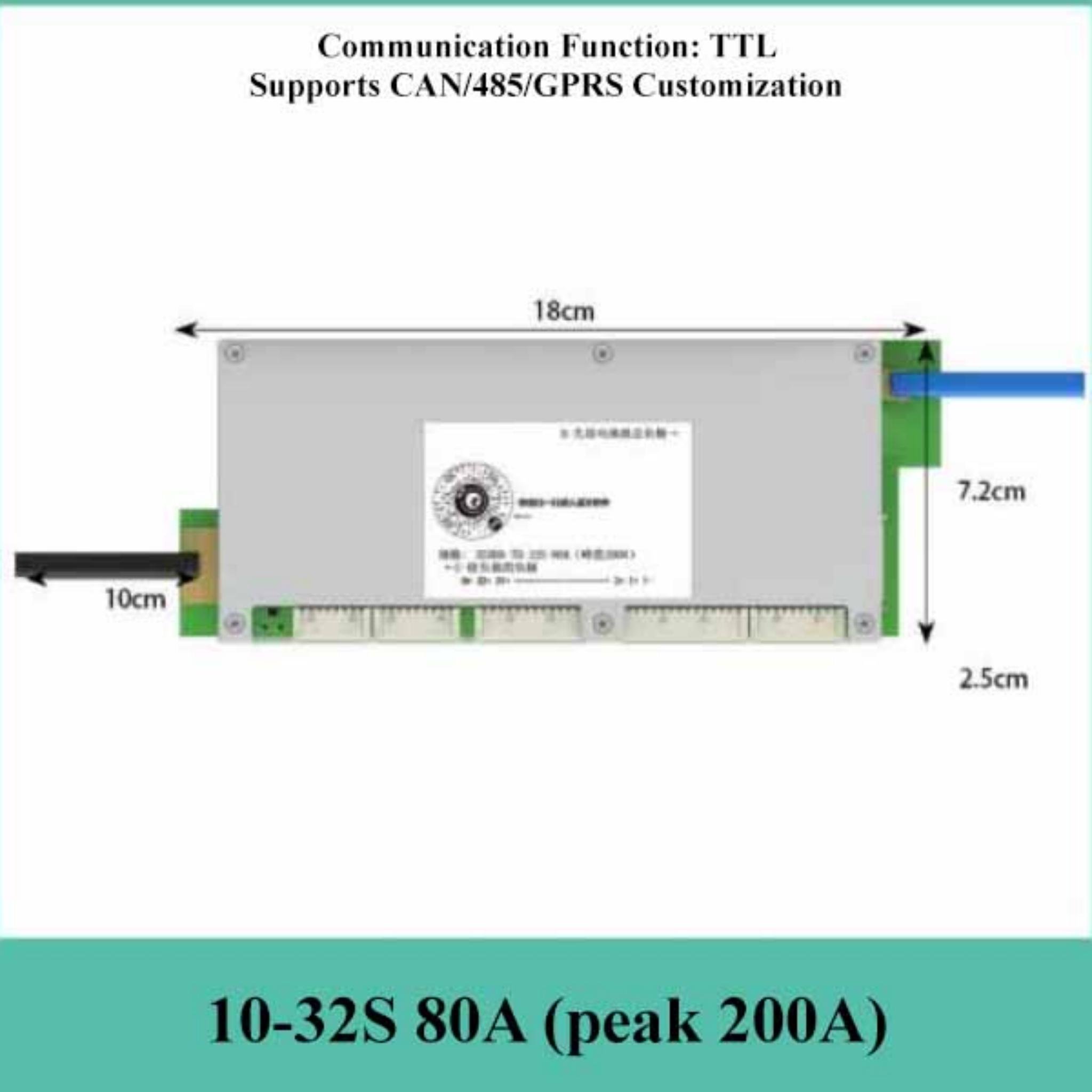

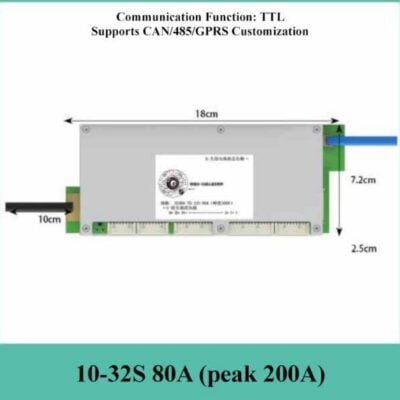

| 32S-80A 9 pairs of MOSFETs | 225A | 80A | Length:18CM width:7.2CM height:2.5CM |

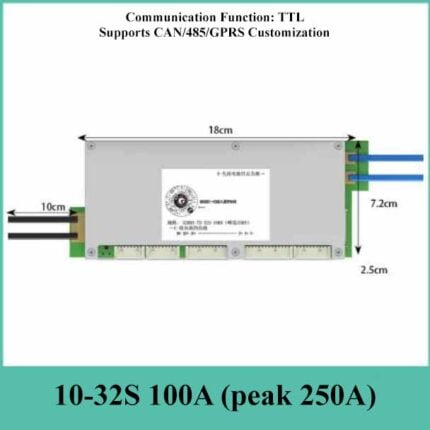

| 32S-100A 11 pairs of MOSFETs | 275A | 100A | Length:18CM width:7.2CM height:2.5CM |
| 32S-120A 13 pairs of MOSFETs | 325A | 120A | Length:18CM width:7.2CM height:2.5CM |
13.Interface Pin
13.1 Interface Pin Description
14.Wiring Diagram
15.Protection Board Activation
It needs to be activated first after Protection Board boot up. There are generally three methods:
1. Activation through charging with a charger, our protection board has a charging activation function (the charger should be without the communication and voltage detection features).
2. Activation through the communication interface by short-circuiting on SW and GND pins, for details, please refer to section 13. Interface Definition.
3. Activation using a Multimeter in the diode mode, connect the red probe to the blue power line B- of the protection board, and the black probe to the black power line C-.
16.Host Computer Interface
17.Mobile App Interface
18.Hole Position Dimension Diagram
