DT3 USB Data Cable Detection Module
$1.431pcs
The DT3 USB Data Cable Detection Module is used to test whether a USB cable supports power delivery, data transmission, and proper internal wiring. It helps identify faulty, charge-only, or non-standard cables quickly using LED indicators.

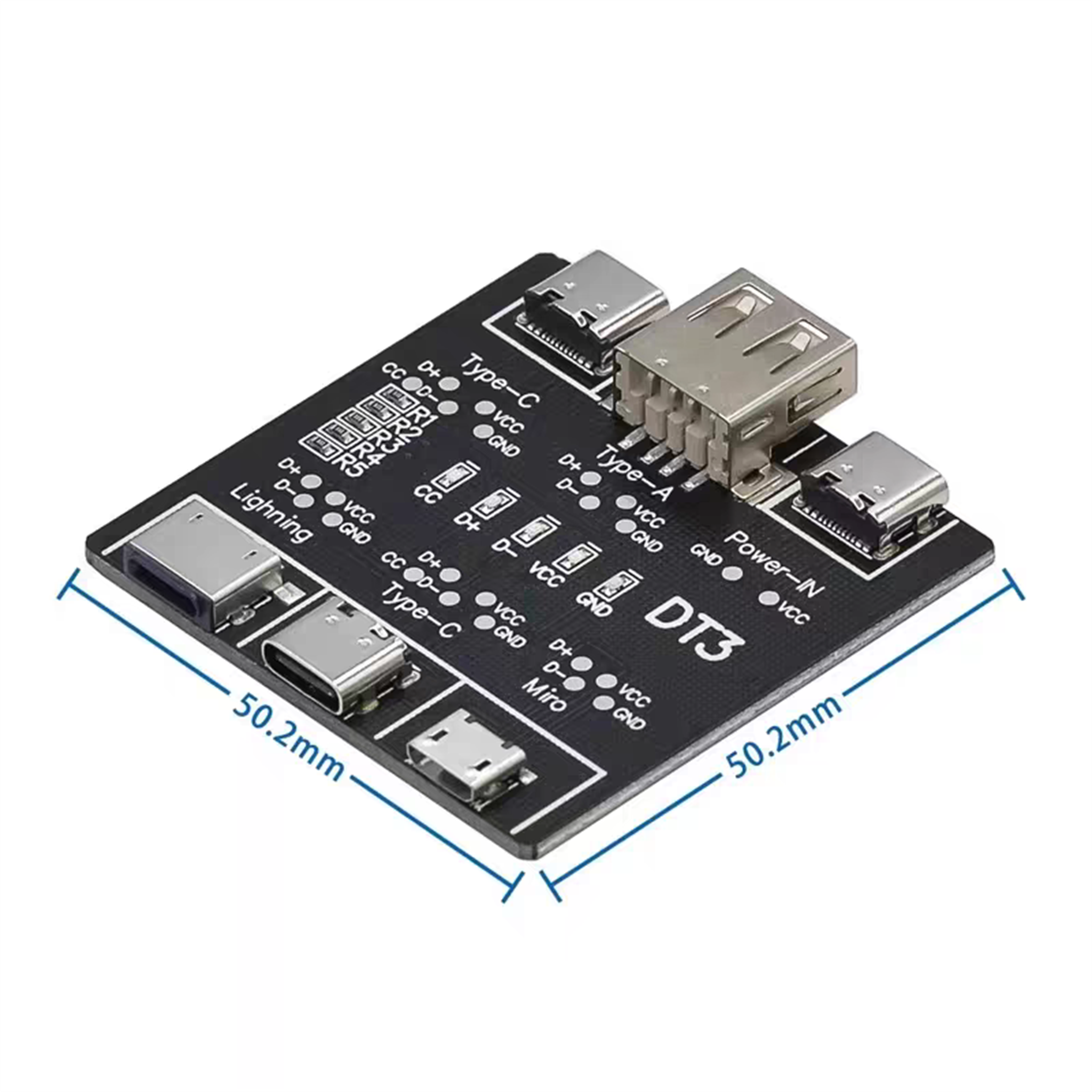

| Dimensions | 50.2 × 50.2 mm |
|---|---|
| Brand |
easyelecmodule |
5255 in stock
Features
- Simple To Use: The USB cable continuity detection board makes it easy to your fast charging lines, making it for tech enthusiasts and DIYers.
- Compact And Convenient: This and USB cable tester is easy to carry, offering multi-level protection for fast and simple cable detection.
- Fast Detection Speed: Quickly detect abnormal cable with the DT3 for Micro-type Type-C port, ensuring the stability and safety of your USB cables.
- Efficient and Reliable: the of your USB cables with this fast detection tool, for those who value
- Portable Solution: The USB cable tester offers a compact and convenient solution for detecting abnormal cable, for on-the-go professionals and travelers

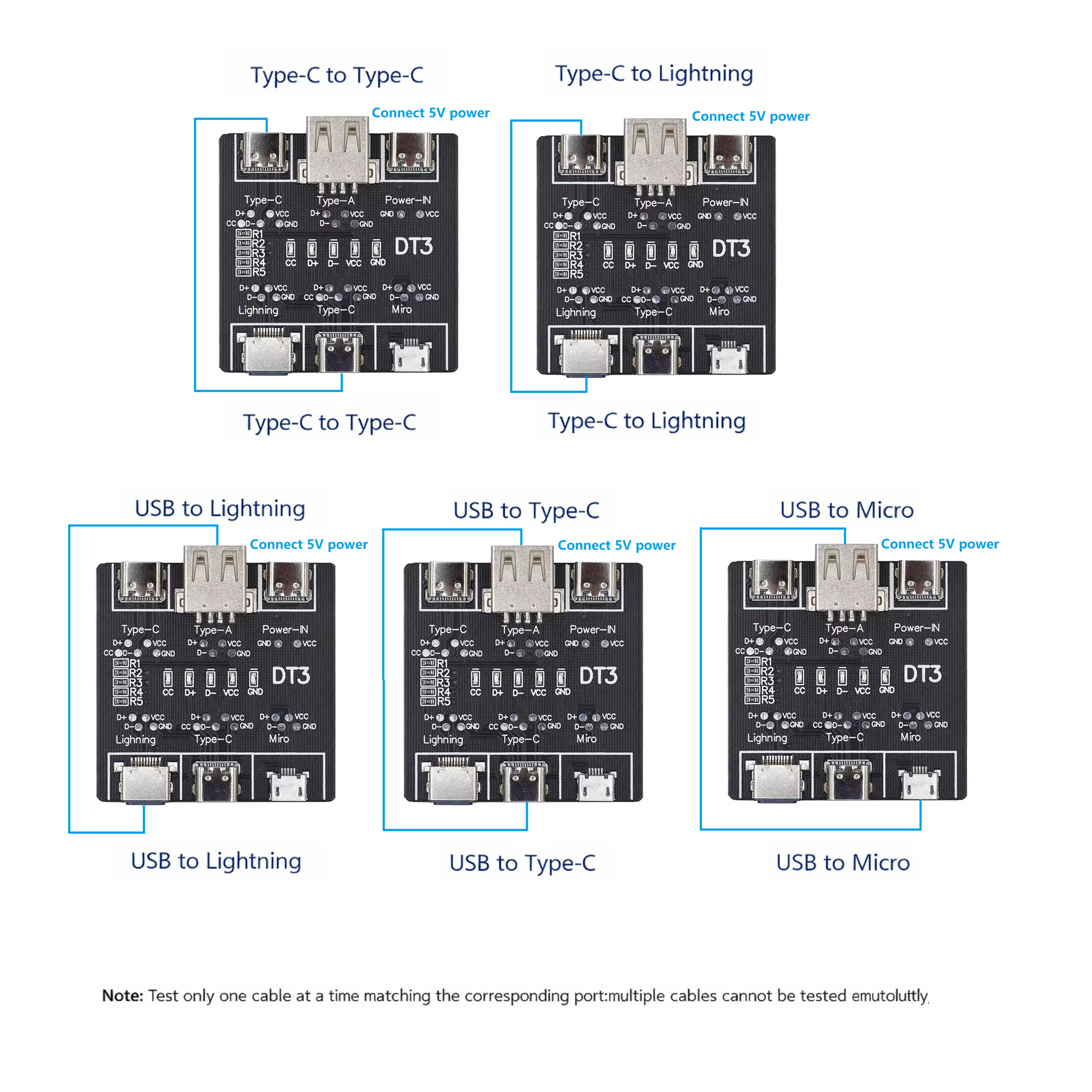

Supported Cable Test Scenarios
The DT3 supports the following common cable configurations:
- Type-C to Type-C
- Type-C to Lightning
- USB-A to Lightning
- USB-A to Type-C
- USB-A to Micro USB
Important:Only one cable should be tested at a time, using the corresponding input port. Testing multiple cables simultaneously may result in incorrect readings.Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

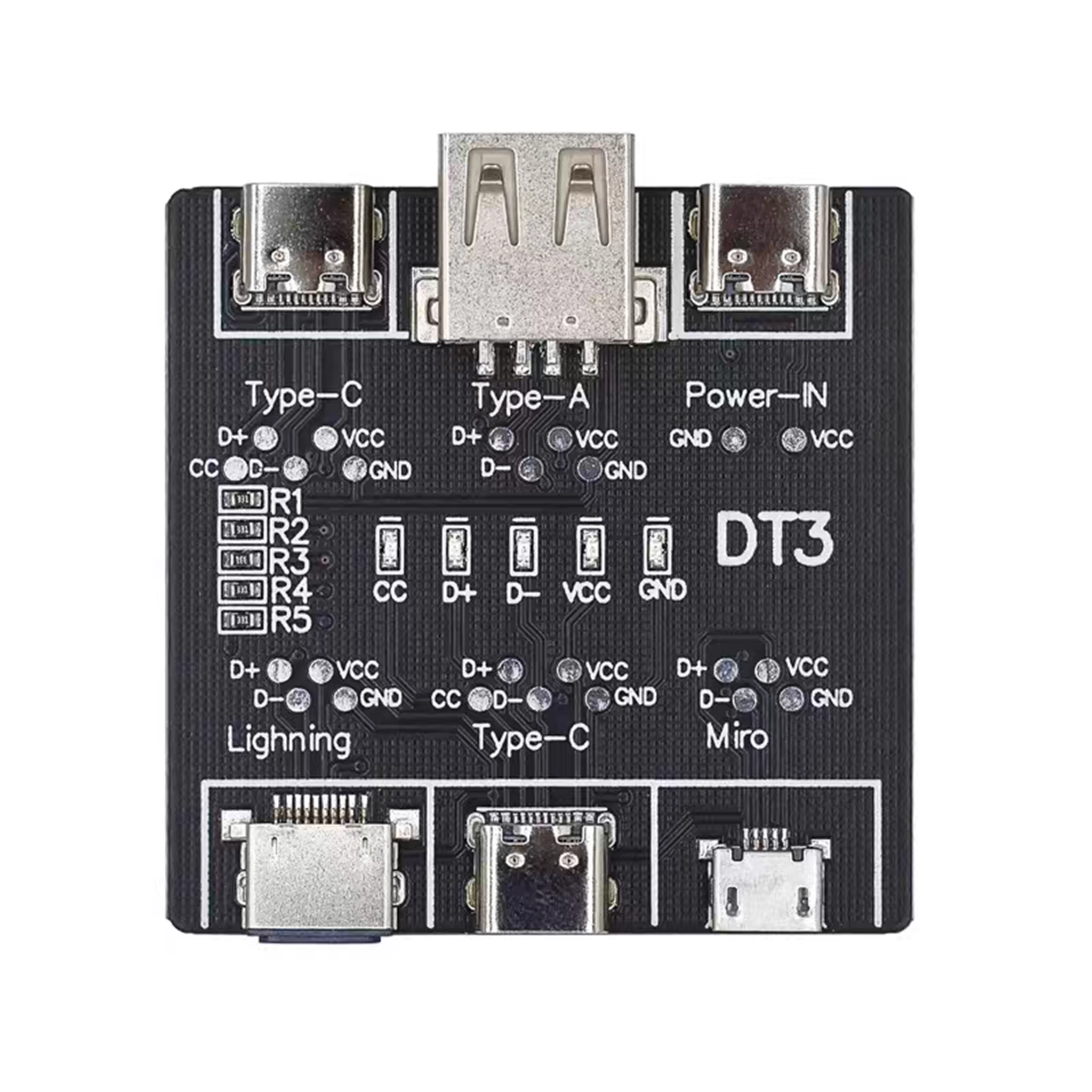

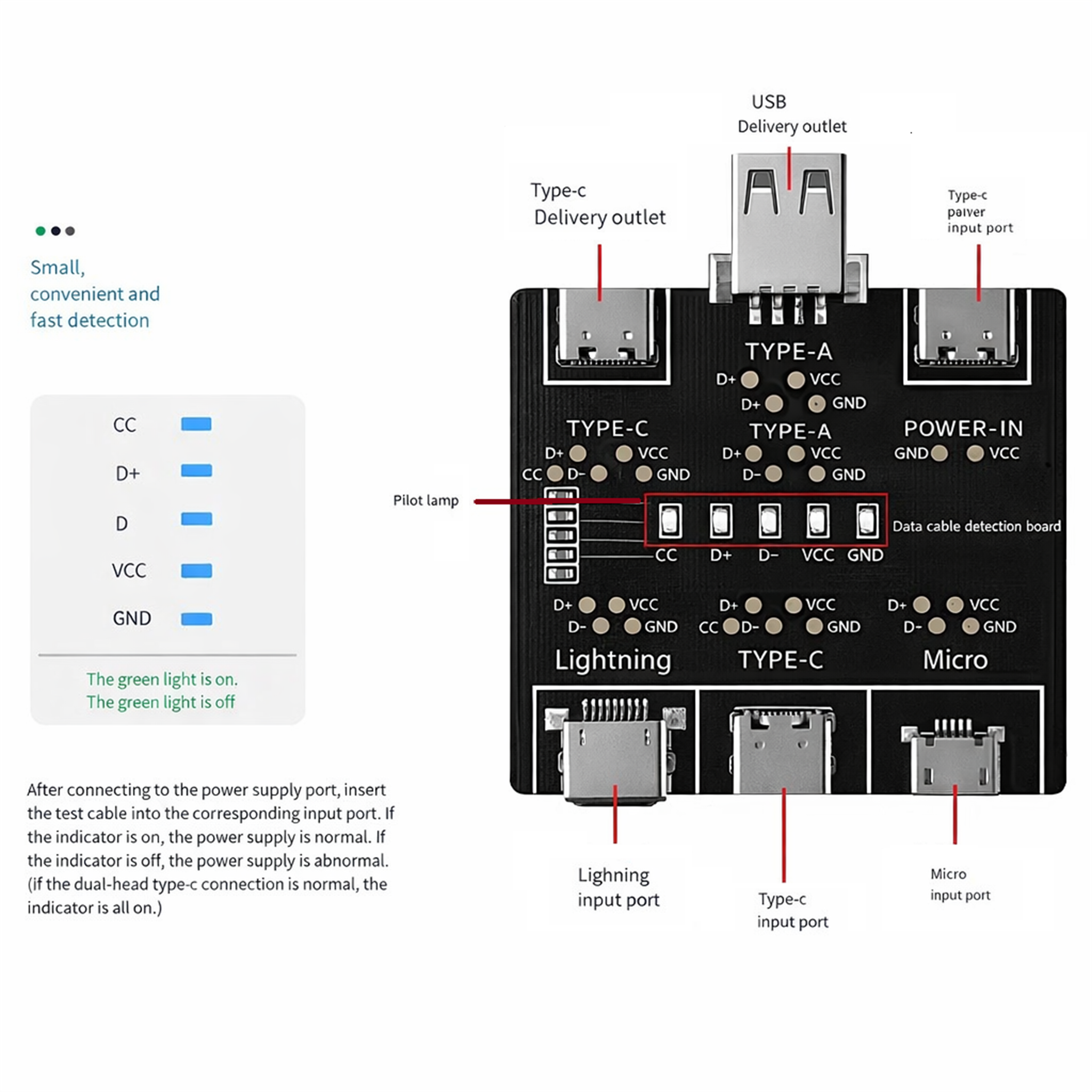

Port Overview and Layout
Top Ports
- Type-C Delivery Outlet
- USB-A Delivery Outlet
- Type-C Power Input (5V)
Bottom Input Ports
- Lightning Input
- Type-C Input
- Micro USB Input
This layout allows the DT3 to accommodate both modern and legacy cables without adapters or additional modules.
Instruction for use of The Tester
1.Use the type-c charging cable to plug into the power supply port to power the small board.
2.Plug the data cable that needs to be detected, plug one end of the charger, and insert it into the corresponding output port.
3.Plug the data cable into one end of the phone and in to the corresponding input port.

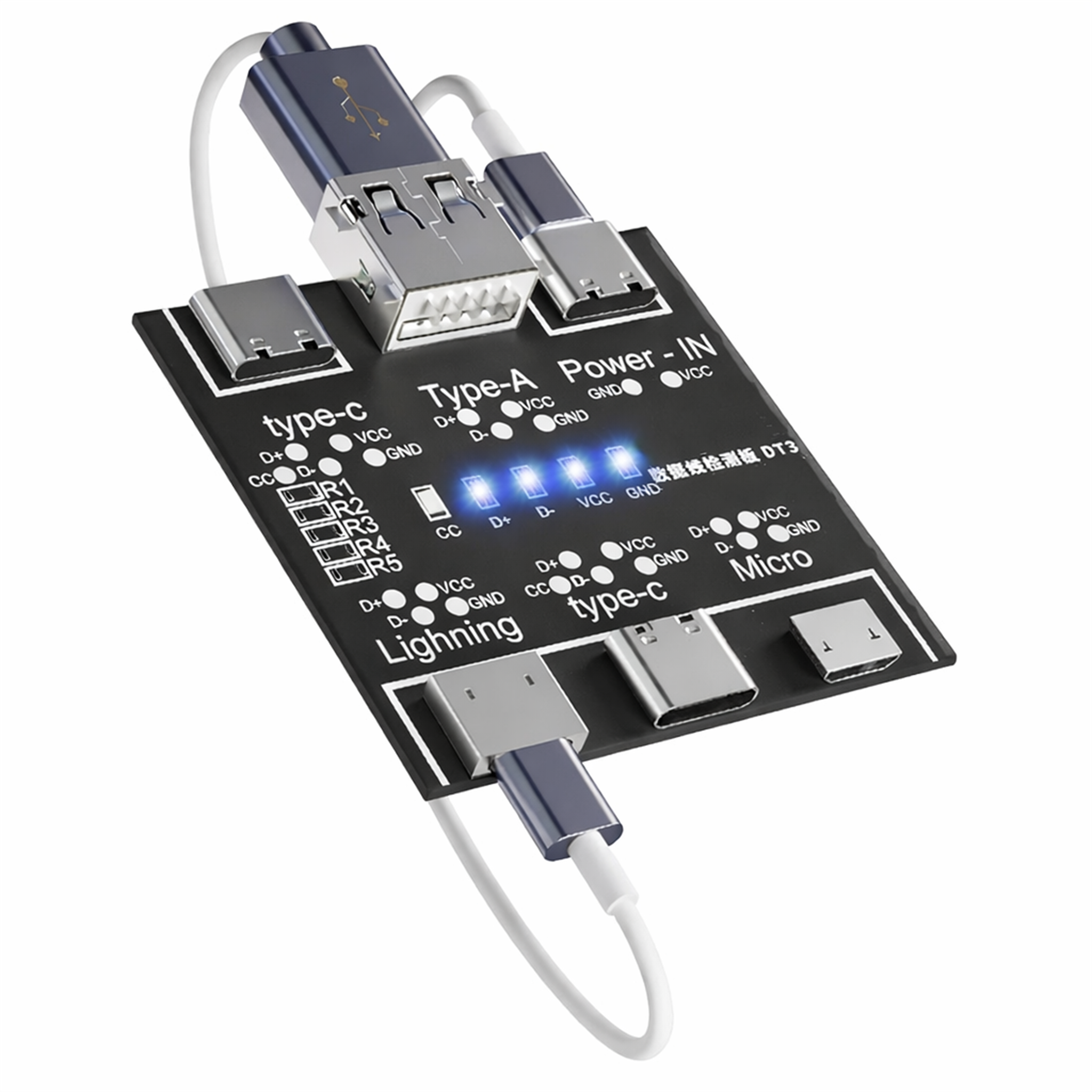

4.Observe the light on: VCC and GND are off: the data cable is abnormal D+ or D- is off: the data transmission function is abnormal (if VCC and GND are on, it is a charging cable without data transmission function)
5.Double head type-c data line detection: CC light: It is specially used for the detection of double-headed type-c data line. If it is not on, it is abnormal. When detecting other data lines, the light will not activate.
