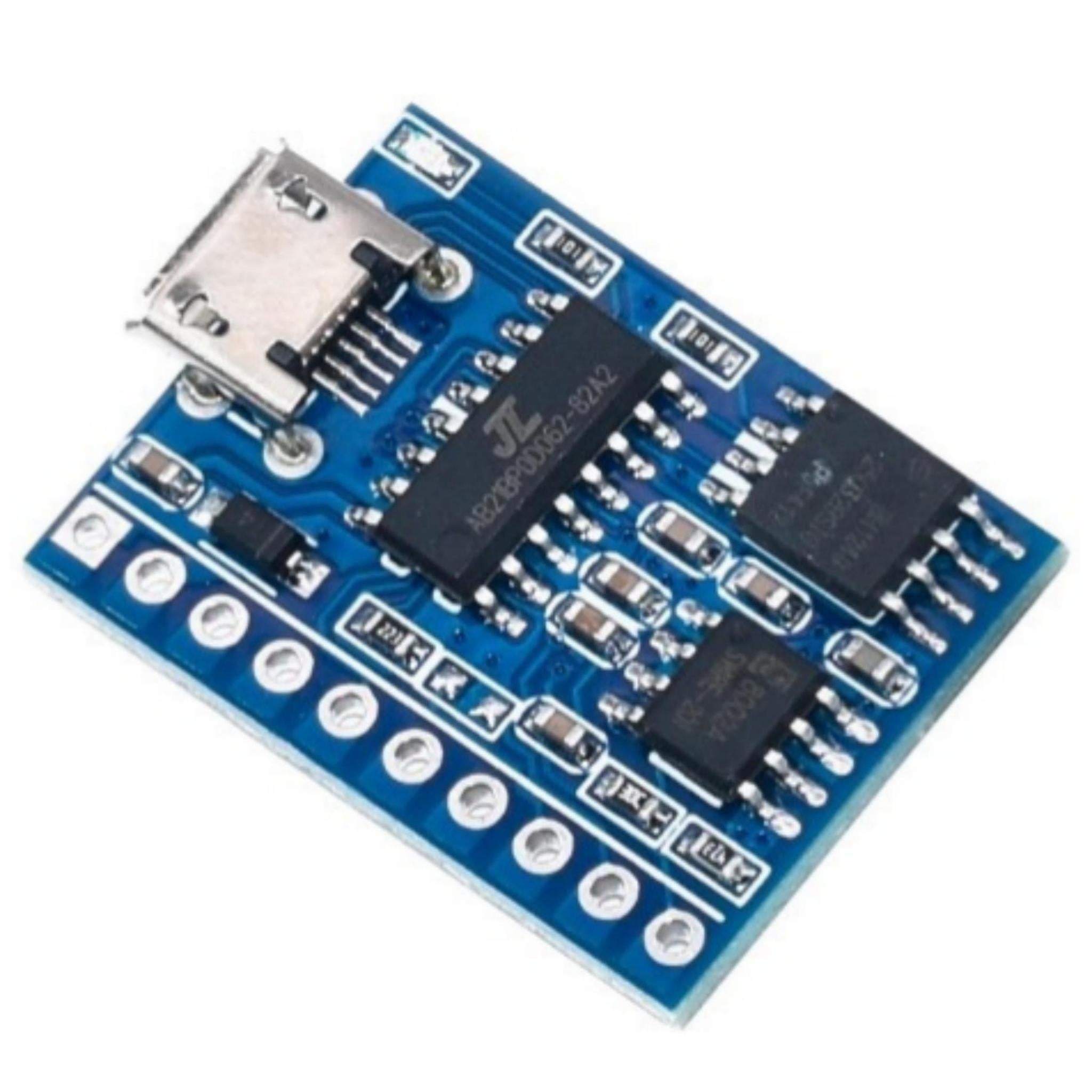

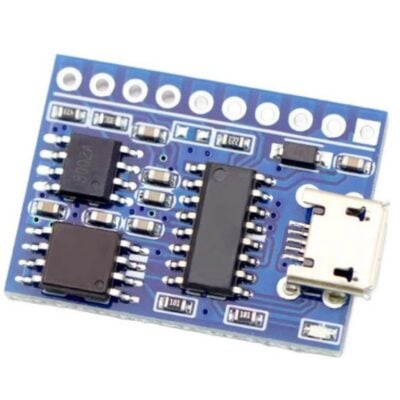

JR6001 Customized Voice Module
$4.711pcs
JR6001 is a communication module based on wireless RF technology,feature high reliability,low power consumption and long-distance transmission.It can not only realize voice broadcast,but also be applied to various scenario such as smart home,industrial control and smart agriculture.
| Dimensions | 27.0 × 19.0 mm |
|---|---|
| Brand |
easyelecmodule |
4233 in stock
Product Instruction
JR6001 is a high-performance voice module,mainly used in embedded systems to implement voice playback function.This module supports multiple storage media,including USB flash drivers,SD cards(TF cards) and internal Flash storage.It also features flexible playback control settings,and can receive commands via serial interface to perform operations such as playback,pause and skip of voice files.
Product Description
Dedicated PC software, quick to get started, easy debugging, and automatic command generation.
Module Features
1. Supports high-quality MP3 and WAV audio formats with clear and pleasant sound.
2.24-bit DAC output with a dynamic range of up to 90 dB and a signal-to-noise ratio of 85 dB.
3.Supports two-wire serial communication control and AD control.
4.Supports USB voice file updates with no driver or software installation required—simply copy the files for quick and convenient operation. Compatible with Windows XP, Windows 7, Windows 8, and Windows 10 systems.
5.Supports common control functions such as previous track, next track, play, pause, stop, and track selection.
6.Supports flexible playlist combinations.
7.Supports 30-level volume adjustment.
8.Supports configurable loop count, enabling more applications with a more user-friendly design.
9.Dedicated BUSY signal output indication.
10.Mature command set and command parsing for more stable operation.
11.Dedicated PC software for quick setup and easy debugging, with automatic command generation.
Voice Content Update Instructions
This module features a built-in USB interface, allowing for flexible changes to the voice content in the SPI flash. It eliminates the hassle of traditional voice chips, which require installing host software for voice updates. The SPI flash is directly simulated as a USB drive, making the process as convenient as copying files to a USB drive.
Any computer system can support it, whereas other ordinary modules only support voice updates on XP and Windows 7 systems.
Connect the module to the computer using a USB cable, and the computer will automatically recognize it. Simply double-click on the new drive and copy the desired audio files into it.
Hardware Specifications
| Name | Specifications |
|---|---|
| MP3/WAV file format | Supports audio files with a sampling rate of 8 – 48 kHz and a bit rate of 8 – 320 kbps. |
| USB Port | USB 2.0 Standard (Compatible with any computer operating system) |
| UART Port | Standard serial port, 3.3V TTL level, baud rate 9600. |
| Input voltage | DC 3.6 – 5.2V (recommended 4.2V) |
| Rated current | Operating current: 10mA |

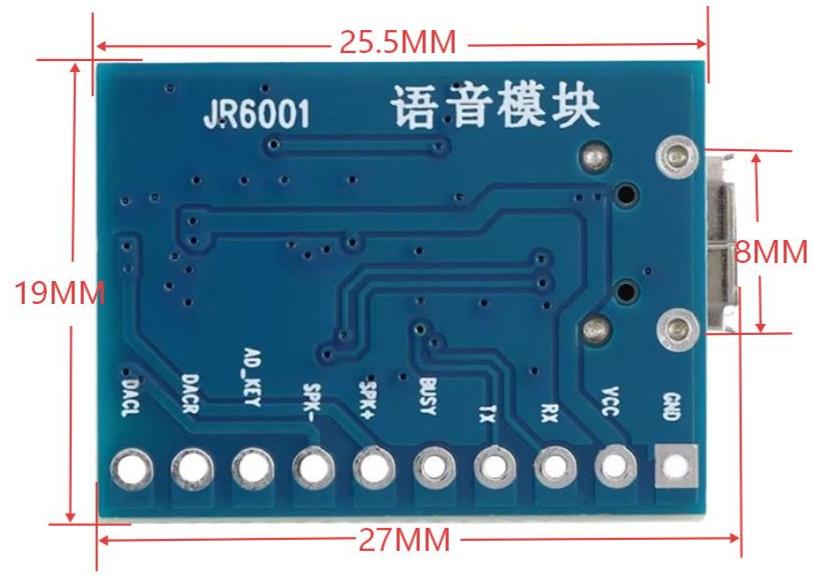

| PCB dimensions | 19 * 25MM |
| Operating temperature | -40℃-85℃ |
| Humidity | 5%-95% |
Voice commands
1.Play (A2)
Command: A2
Note: Sending this command at any time will restart the current track from the beginning.
2.Pause (A3)
Command: A3
3.Stop (A4)
Command: A4
Return: None
4.Previous Track (A5)
Command: A5
5.Next Track (A6)
Command: A6
6.Select Specific Track (A7)
Command: A7:00001
For example:
A7: 00008 specifies playback of the file named 00008 in the current storage, with track numbers ranging from 00001 to 99999.
7.Play by Specifying Drive Letter and Path (A8)
FLASH Command: A8: 02 + Path
TF Command: A8: 01 + Path
USB Command: A8: 00 + Path
This command is flexible in its requirements for MP3 file names, supporting both Chinese and English characters. However, the file name is limited to a maximum of 8 bytes.
Example 1: To play the MP3 file named 00005 in the root directory of FLASH
A8: 02/00002*???
A8: 02 — “A8” is the command code, “02” represents FLASH, and “/00002*???” is the path format.
Example 2: To play the “apple.MP3” file in the “MUSIC” folder of FLASH, the command is A8: 02/MUSIC*/APPLE*???
A8: 02 — “A8” is the command code, “02” represents FLASH, and “/MUSIC*/APPLE*???” is the path format.
8.Stop Playback (AE)
Command: AE
Explanation: This command can prematurely terminate the current operation. It will end the ongoing playback, and if it involves an interrupt playback (such as an insertion), it will end the interruption and return to the original state.
9.Volume Setting (AF)
Command: AF
For example: AF: 20 sets the volume to level 20.
10.Volume Up (B0)
Command: B0
11.Volume Down (B1)
Command: B1
12.Set Loop Mode (B4)
Command: B4: XX
For example: To set to single-track loop: B4: 01
13.Combination Playback (B7)
Combination playback can only play files from the ZH folder, and the file names within this folder must consist of two digits.
Command: B7: XXXX
(After the colon, directly specify the filename within the folder)
For example: B7: 01020504 will play the files named 01, 02, 05, and 04 in the ZH folder in that order.
14.End Combination Playback (B8)
Command: B8
Explanation: Ends the combination playback and returns to the state before the combination playback started.
Product Application
Voice applications in game basketball machines, audio announcements in treadmills, voice-guided operation instructions in massage chairs, equipment failure prompts, device operation guidance voice, in-vehicle safety voice warnings, public area voice notifications, and warm reminders in service halls.
