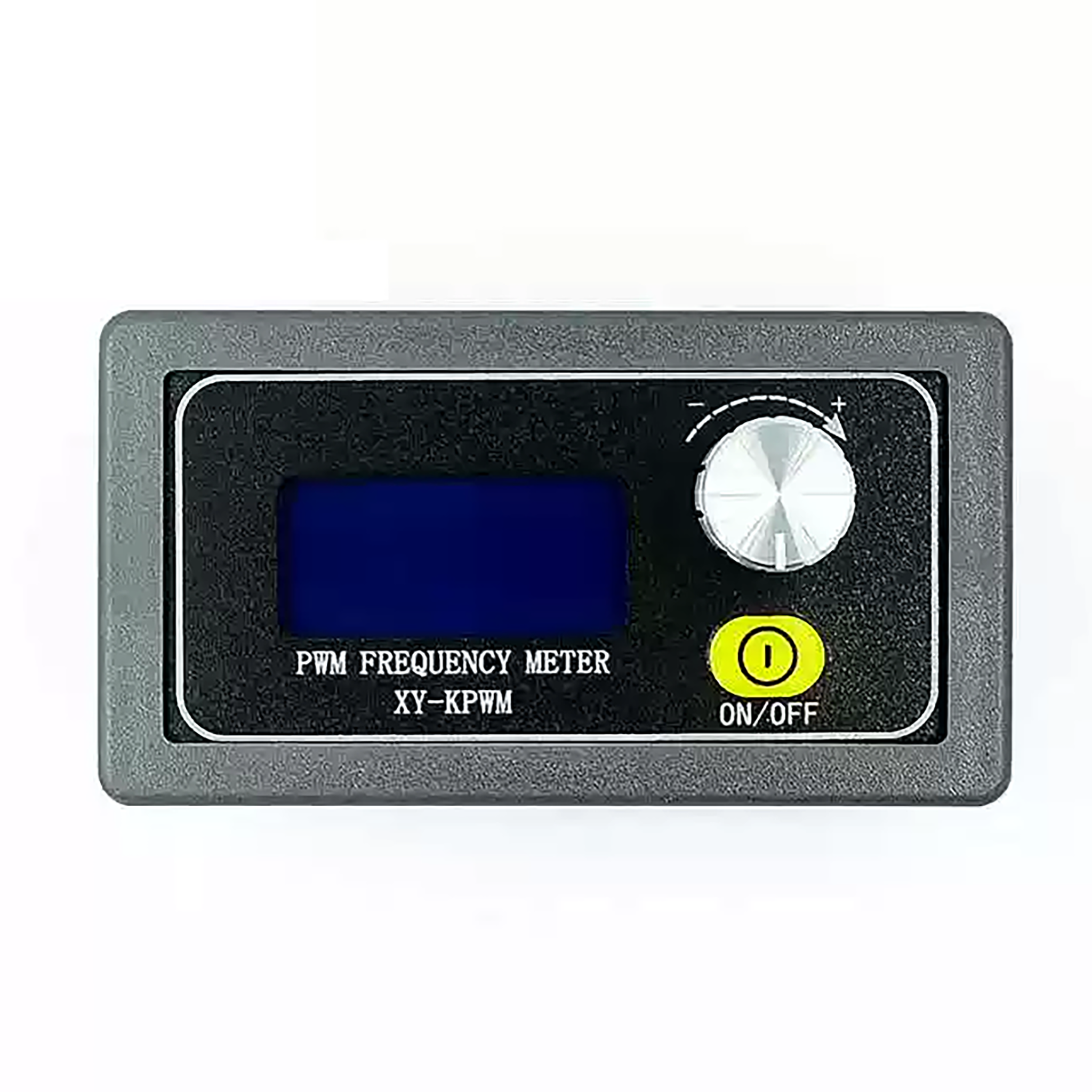

XY-PWM
$3.981pcs
The XY-PWM module is a device that generates adjustable PWM waves. It can output corresponding PWM waveforms according to the set duty cycle and frequency, and is often used for components that require speed regulation.

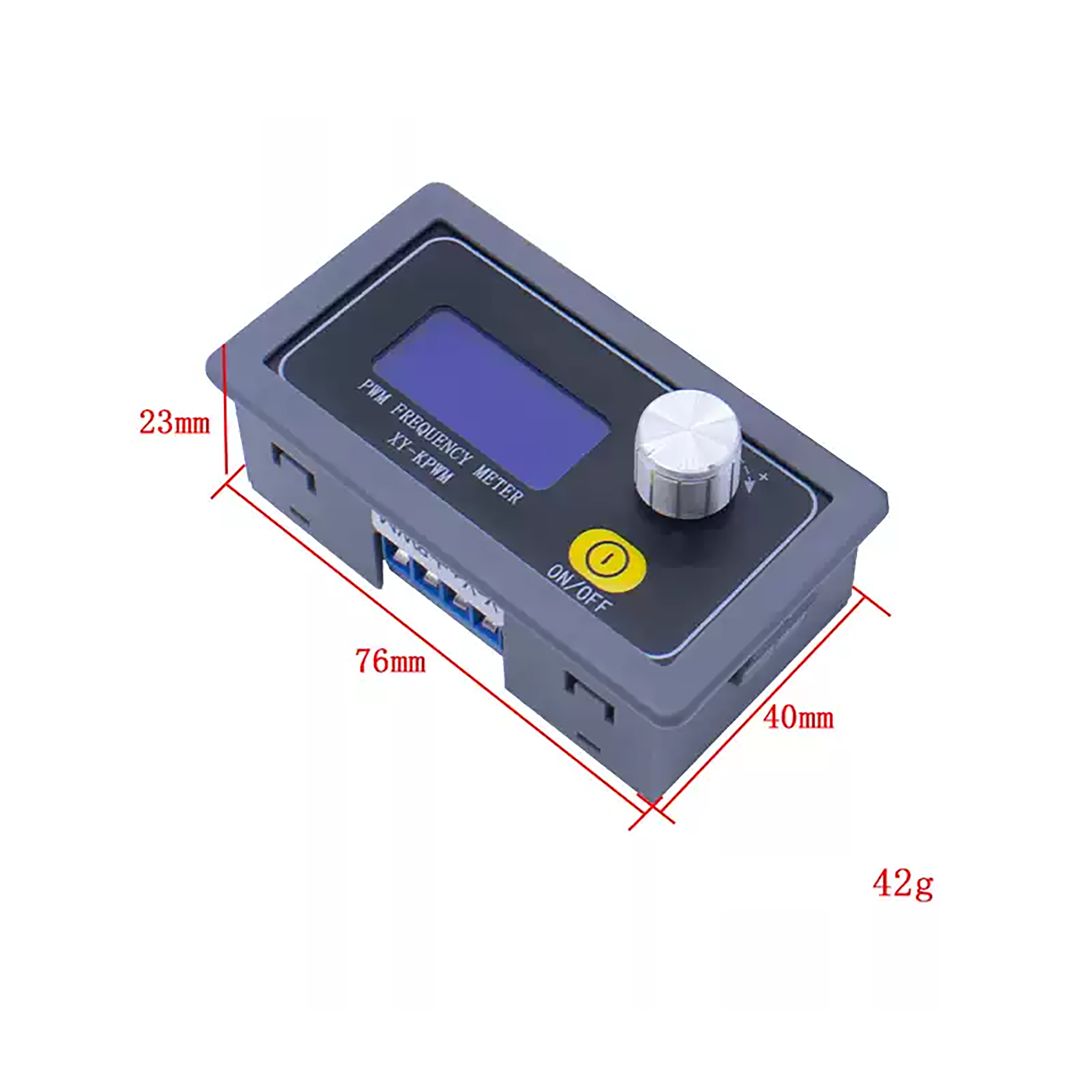

| Dimensions | 76 × 40 × 23 mm |
|---|---|
| Brand |
easyelecmodule |
2485 in stock
Explanation of Differences between XY-KPWM and XY-PWM1
The function of the switch is only to turn the power on and off; all other settings and usage methods are consistent.
Product Description
It provides PWM output, with adjustable frequency and duty cycle. It has two working modes:
- Normal Mode:
Duty cycle adjustment step: 1%;Frequency range: 1Hz ~ 150kHz;Duty cycle range: 0% ~ 100%.
- Fine Mode:
Frequency range: 1Hz ~ 15kHz; Duty cycle adjustment step: 0.1%; Duty cycle range: 0.0% ~ 100%.
The frequency is divided into four ranges and switches automatically:
1.XXX (no decimal point): The smallest unit is 1Hz, with a value range of 1Hz ~ 999Hz;
2.X.XX (decimal point at the hundreds place): The smallest unit is 0.01kHz, with a value range of 1.00kHz ~ 9.99kHz;
3.XX.X (decimal point at the tens place): The smallest unit is 0.1kHz, with a value range of 10.0kHz ~ 99.9kHz;
4.X.X.X (decimal points at the tens and hundreds places): The smallest unit is 1kHz, with a value range of 1kHz ~ 150kHz.
Examples of frequency display:
- “100” means the PWM outputs 100Hz pulses;
- “1.01” means the PWM outputs 1.01kHz pulses;
- “54.1” means the PWM outputs 54.1kHz pulses;
- “1.2.4” means the PWM outputs 124kHz pulses.
All set parameters are saved when the power is off (non-volatile storage).

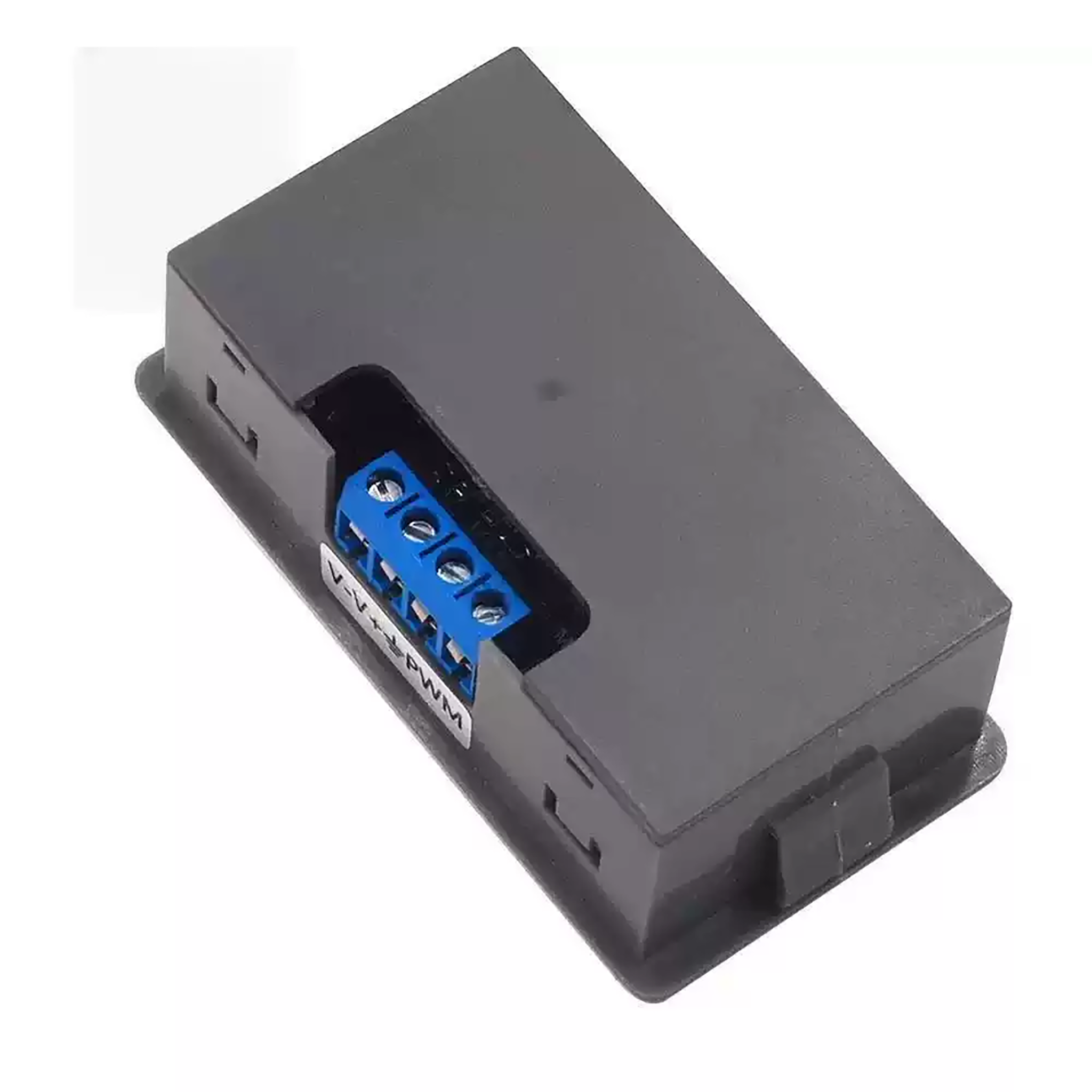

Pinout Description
Parameter Setting

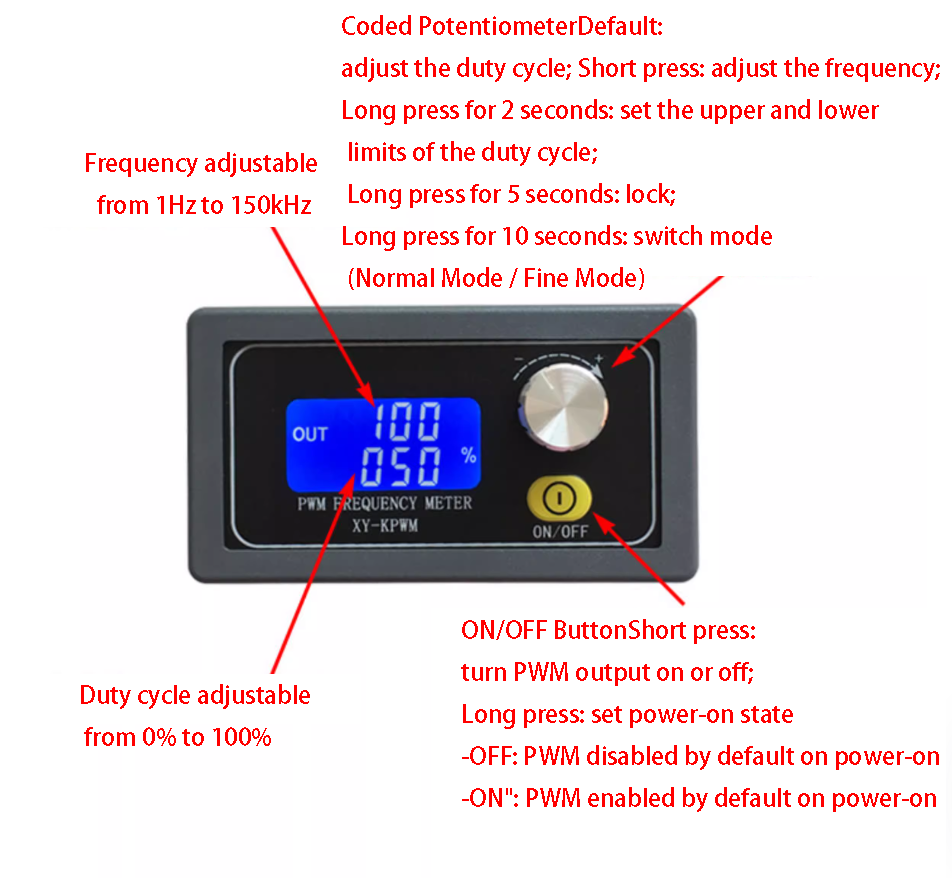

This XY-PWM module adjusts frequency and duty cycle via a potentiometer. It can detect the rotation speed to enable fast adjustment. By default, it adjusts the duty cycle. Short-press the button to switch to frequency adjustment; long-press for 2s to lock the settings; long-press for 5s to switch modes (Normal Mode / Fine Mode). The operation is simple, and parameters are saved automatically after setting—no data loss when the power is off.
Electrical Parameters
| Parameter Category | Specification / Value |
|---|---|
| Operating Voltage | 3.3V ~ 30V |
| Frequency Range (Normal Mode) | 1Hz ~ 150KHz |
| Frequency Range (Fine Mode) | 1Hz ~ 15KHz |
| Frequency Accuracy | ±2% |
| Signal Load Capacity | 5 ~ 30mA |
| Output Amplitude | Equal to Supply Voltage |
| Operating Temperature | -20°C ~ +70°C |
| Weight | 42g |
Application Scope
1.Used as a square wave signal generator to produce square wave signals for experimental development;
2.Generates square wave signals to control motor drivers;
3.Produces adjustable pulses for MCU (Microcontroller Unit) use;
4.Generates adjustable pulses to control related circuits (like PWM dimming, speed regulation applications).
Serial Communication Method
- Communication Standard: 9600 bps
- Data Bits: 8
- Stop Bits: 1
- Parity Bit: None
- Flow Control: None
