NEO-6M Introduction and Demo Tutorial
What is NEO-6M MODULE？
The NEO-6M is a cost-effective GPS chip launched by u-blox, with the core chip belonging to the u-blox NEO-6 series. It is mainly used to obtain GPS satellite positioning information, time synchronization, and data such as speed, direction, and trajectory. It is widely used in microcontroller development.
The Working Principle of NEO-6M
The NEO-6M works similarly to other GPS positioning methods: it receives L1 signals from multiple GPS positioning satellites, calculates the current position using a trilateration algorithm, and finally outputs processed data including latitude/longitude, altitude, time, speed, and direction. The output format follows the NMEA 0183 protocol, which is typically parsed by a microcontroller (MCU).
Electrical Parameters of the NEO-6M
| Parameter | Specification |
|---|---|
| Frequency | 1575.42 MHz |
| Positioning Accuracy | ≈ 2.5 m (open-sky environment) |
| Cold Start Time | ≈ 27 s |
| Hot Start Time | ≈ 1 s |
| Update Rate | Default 1 Hz (up to 5 Hz) |
| Communication Interface | UART (TTL) |
| Default Baud Rate | 9600 |
| Operating Voltage | 3.3 V (module typically supports 5 V) |
| Operating Current | 30 ~ 45 mA |
| Time Accuracy | < 60 ns |

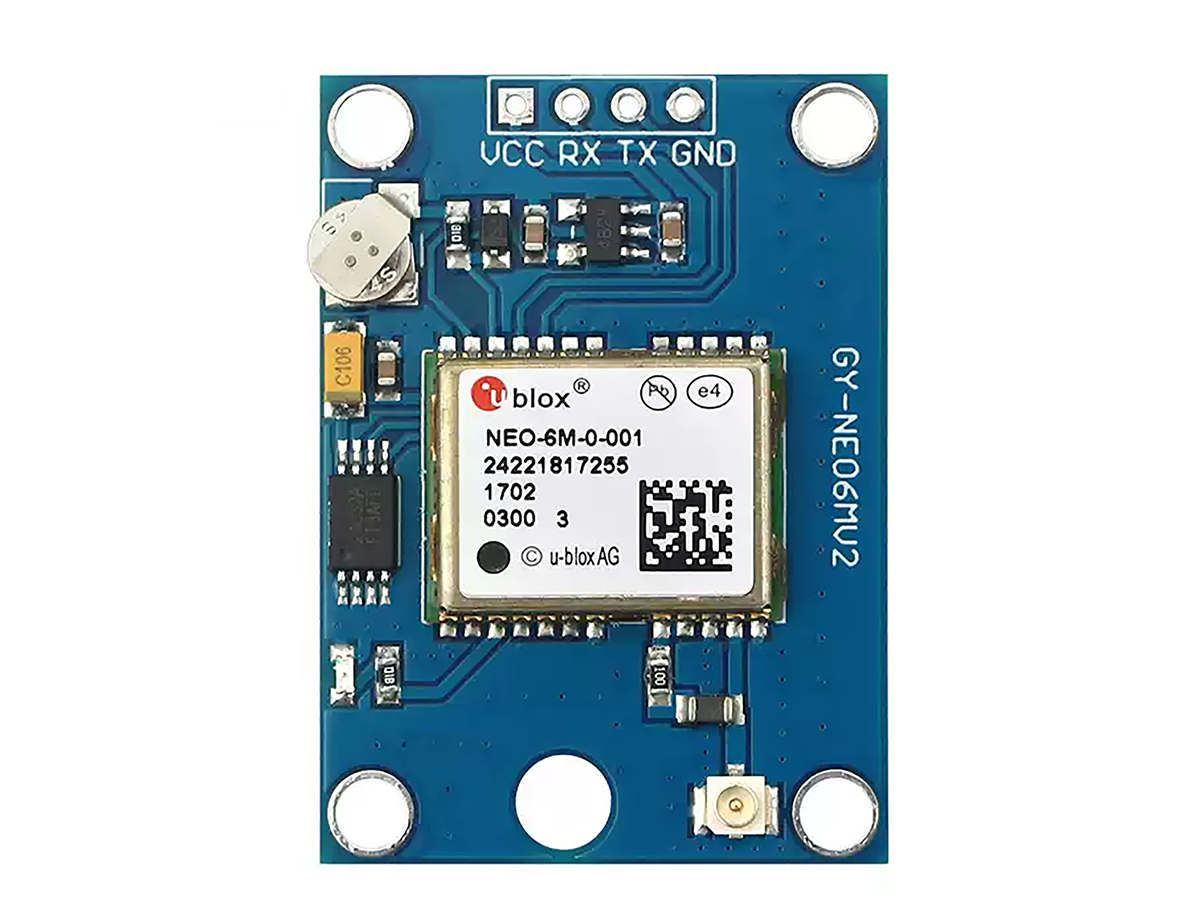

The Composition of NEO-6M Module
The NEO-6M module generally consists of three parts:
1.NEO-6M Chip: Responsible for obtaining positioning information, parsing data, and outputting NMEA data.
2.Antenna: Typically an active ceramic antenna or EMA antenna. Active ceramic antennas rarely achieve positioning indoors; EMA antennas can enable indoor positioning but require minimal obstructions (like cannot work if there are too many floors above).
3.Small Backup Battery: Used to store ephemeris, time, and configuration settings. It mainly supports hot starts and avoids cold starts after power-off.
Hot starts are very fast (only a few seconds), while cold starts can take up to several minutes.
The NEO-6M uses serial communication (TTL) and can be connected to an MCU for communication.

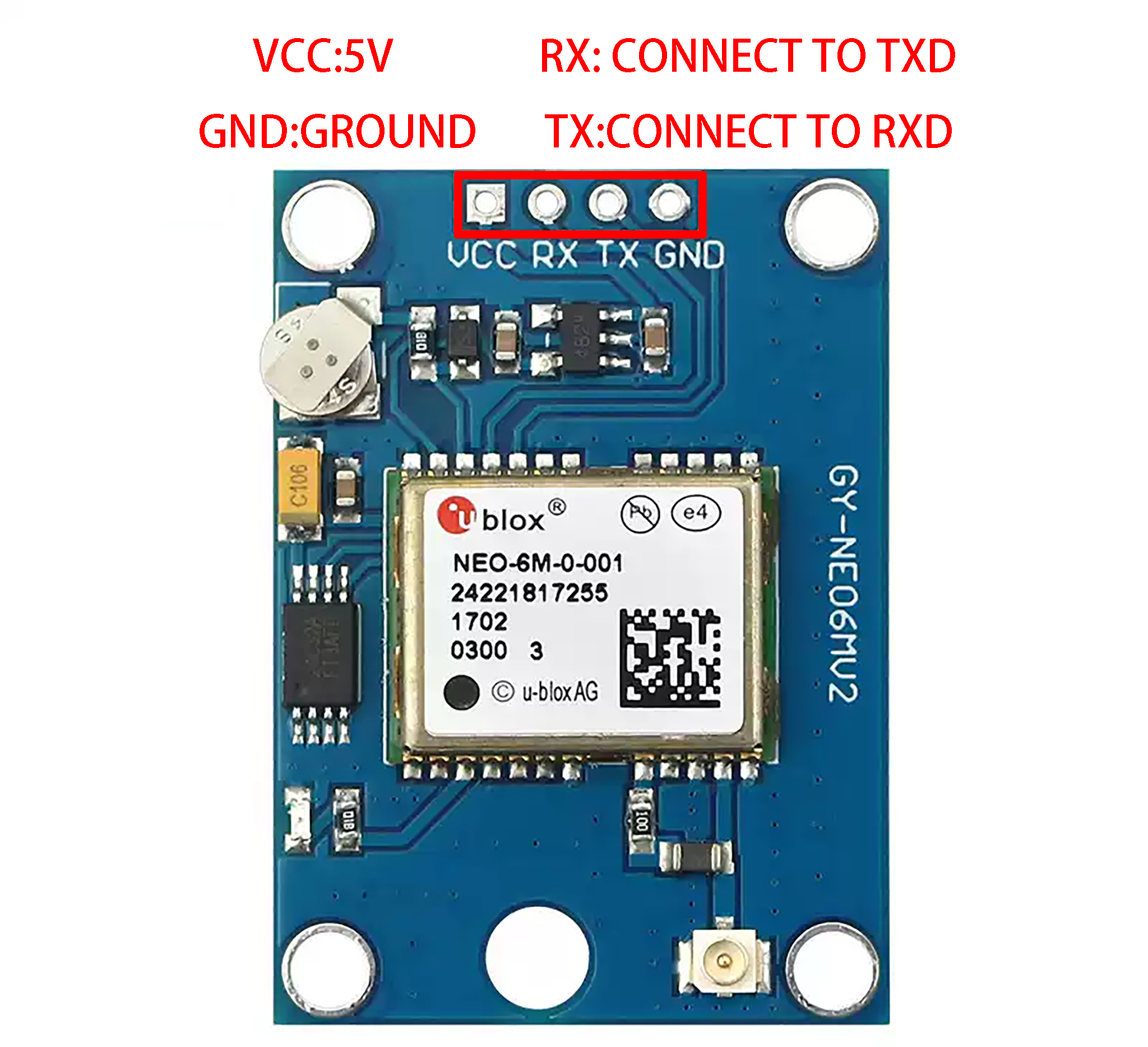

Pin Description
Application scenarios of NEO-6M
The NEO-6M is widely used in microcontroller development (like Arduino, Raspberry Pi, STM32, ESP32), GPS clocks, vehicle positioning, UAV positioning, and trajectory recording.
Practical Application
The following shows the results of using the NEO-6M for navigation and reading data via a Wi-Fi module, with the data displayed on a GPS map.
FAQ
Why does the GPS on a mobile phone start quickly, but the module starts slowly?
Mobile phone GPS maintains a hot start state at all times, so restarting is very fast. The module switches to cold start after being powered off for a period, which makes it seem slow to start.
Is GPS positioning accurate?
Generally, GPS positioning can be accurate to within 1–2m, which is sufficient for most scenarios.
What are the common problems with neo 6M?
Since the NEO-6M relies solely on GPS for positioning (no other auxiliary positioning systems), an antenna is mandatory for positioning—otherwise, it cannot locate.
What is the difference between Neo 6M 7M and 8m?
| Parameter | NEO-6M | NEO-7M | NEO-8M (M8 Series) |
|---|---|---|---|
| Release Generation | Early generation | Transitional generation | New generation |
| Supported GNSS | GPS only | GPS / GLONASS / QZSS | GPS / GLONASS / BeiDou / Galileo |
| Concurrent GNSS | GPS only | Single system at a time | Multiple systems simultaneously |
| Horizontal Accuracy | ~2.5 m | ~2.0 m | ~1.5 m |
| Cold Start Time | ~27 s | ~26 s | ~24 s |
| Hot Start Time | ~1 s | ~1 s | ~1 s |
| Update Rate | 1–5 Hz | 1–10 Hz | 1–10 Hz |
| Power Consumption | Low | Medium | Low–Medium |
| Interference Resistance | Average | Improved | Best |
| Production Status | Discontinued | Discontinued | Mainstream / In production |
| Cost | Lowest | Medium | Slightly higher |
