Infrared Sensor (Four – channel Version)
$1.691pcs
The infrared sensor (four-channel version) integrates multiple sensing channels to detect objects and changes accurately. It provides reliable performance and is suitable for applications such as obstacle detection, line tracking, and embedded control systems.
| Dimensions | 45 × 40 × 9.2 mm |
|---|---|
| Brand |
easyelecmodule |
3129 in stock

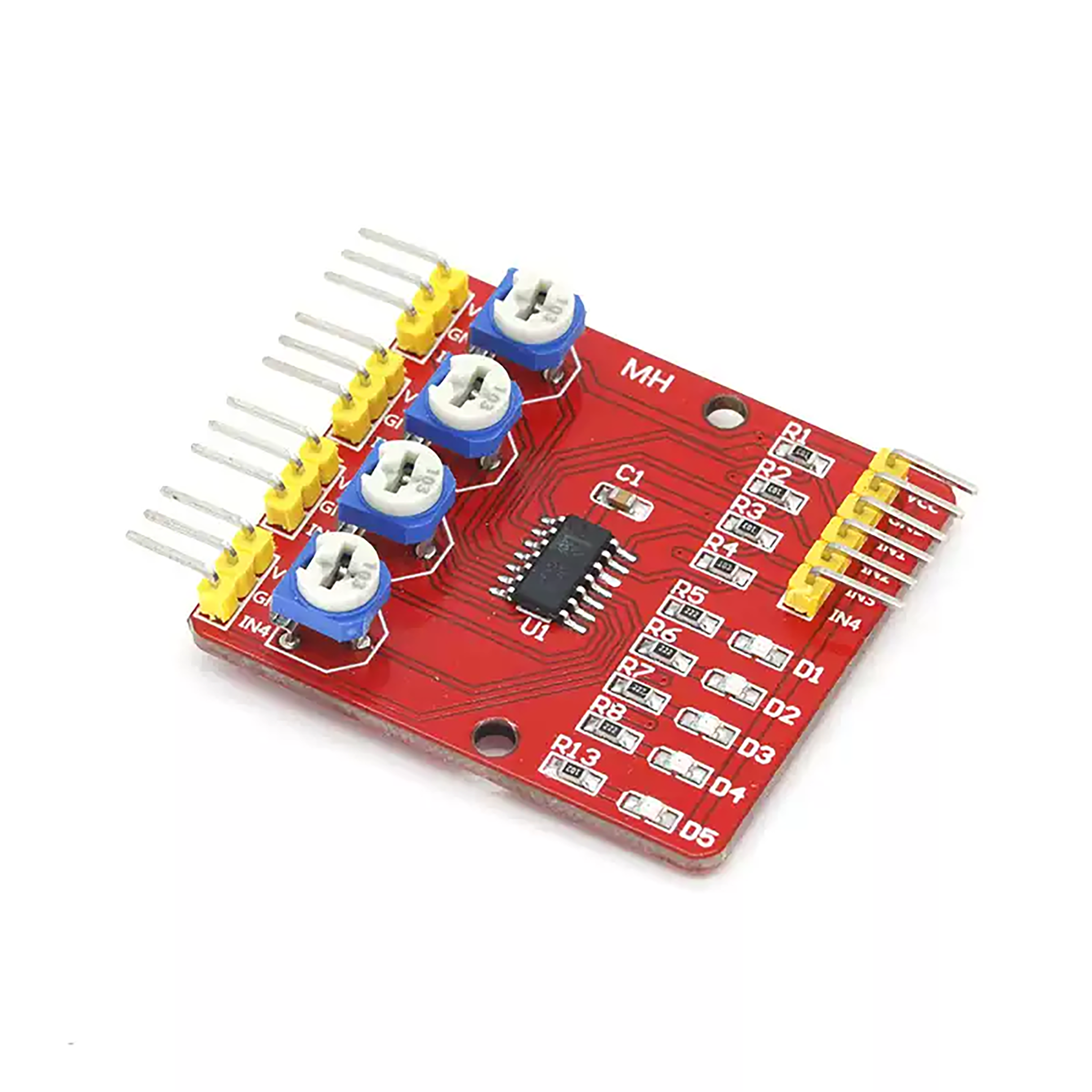

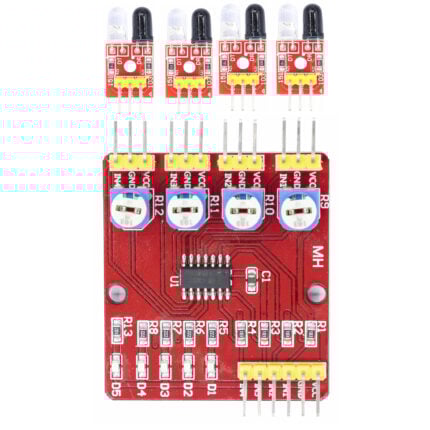

Infrared Sensor (Four - channel Version)
The 4 – channel tracking module has strong adaptability to ambient light. It has a pair of infrared emission and receiving tubes. The detection distance can be adjusted via the potentiometer knob. Turning clockwise increases the distance. The effective distance range is 1 – 12 cm, and the detection angle is 35°, which is suitable for long – distance tracking, such as robot tracking.
Electrical Parameters
Working voltage: DC 3.3V – 5V
Working current: It is better to choose a power supply with more than 1A for power supply.
Working temperature: -10°C to +50°C
Hollow board: 4.4mm (length) * 4.0mm (width) * 12mm (height)
Size: Small board: 25mm (length) * 12mm (width) * 12mm (height)
Output interface: 6-wire interface (1, 2, 3, 4 are 4-channel signal output terminals; VCC is the positive power supply; GND is the negative power supply, which is also the ground wire)
Output signal: TTL level (can be directly connected to the I/O port of the single-chip microcomputer. When the red light reflected back by the sensor is sensed, the red indicator light is on and a low level is output; when there is no infrared light, the indicator light is off and a high level is output)
Application Scope
1. Line following for intelligent cars or robots (including black lines and white lines), moving along the black line path, also known as path tracking.
2. Intelligent cars avoiding cliffs and preventing falls.
3. Intelligent cars avoiding obstacles.
