MQ-4 Natural gas sensor

$2.991pcs

The MQ4 is a MOS gas sensor designed for methane and CNG detection, offering fast response, adjustable sensitivity, and an analog voltage output that increases with gas concentration, making it suitable for residential and industrial gas leak detection

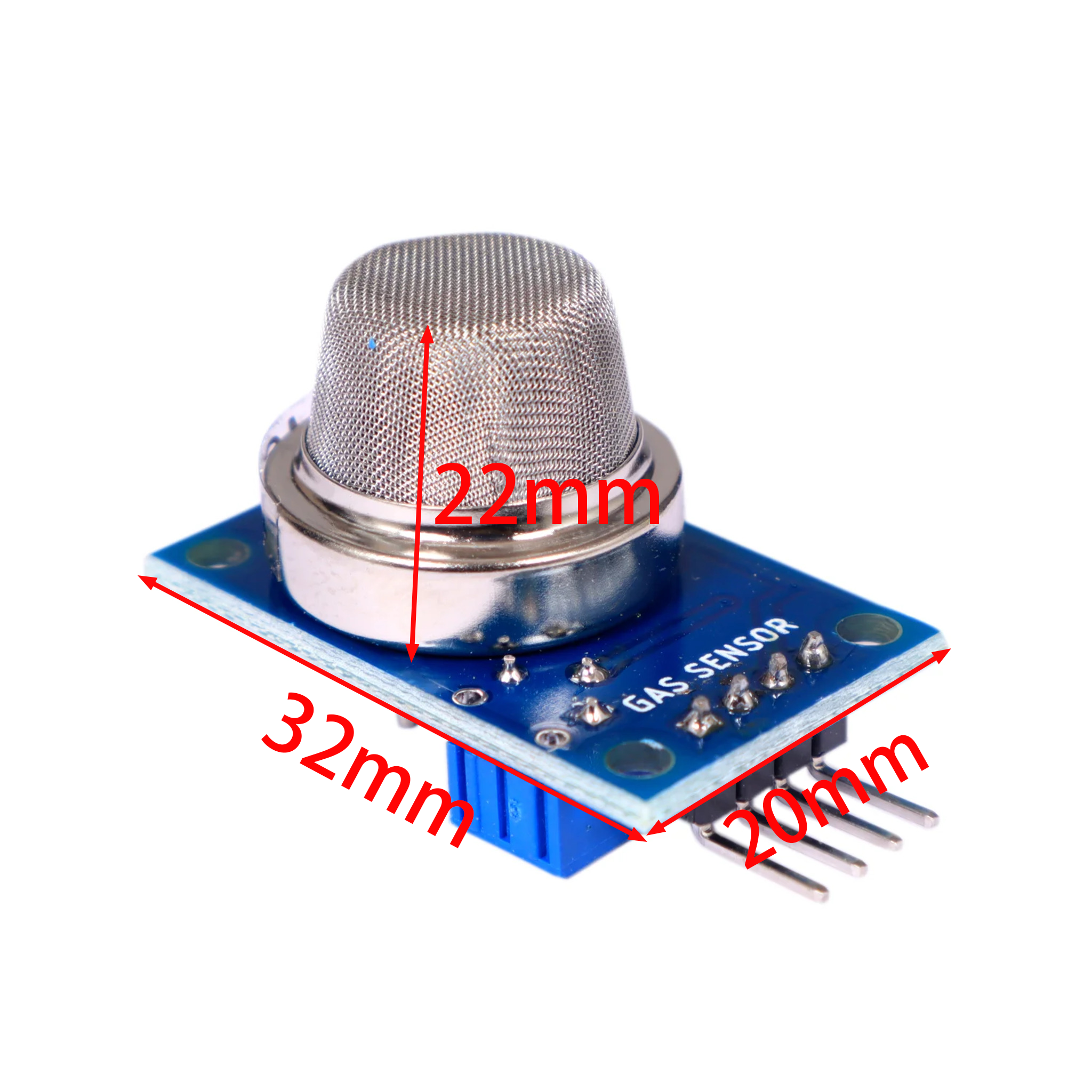

Dimensions

32 × 20 × 22 mm

Brand

easyelecmodule

3643 in stock

DESCRIPTIONS AND FEATURES

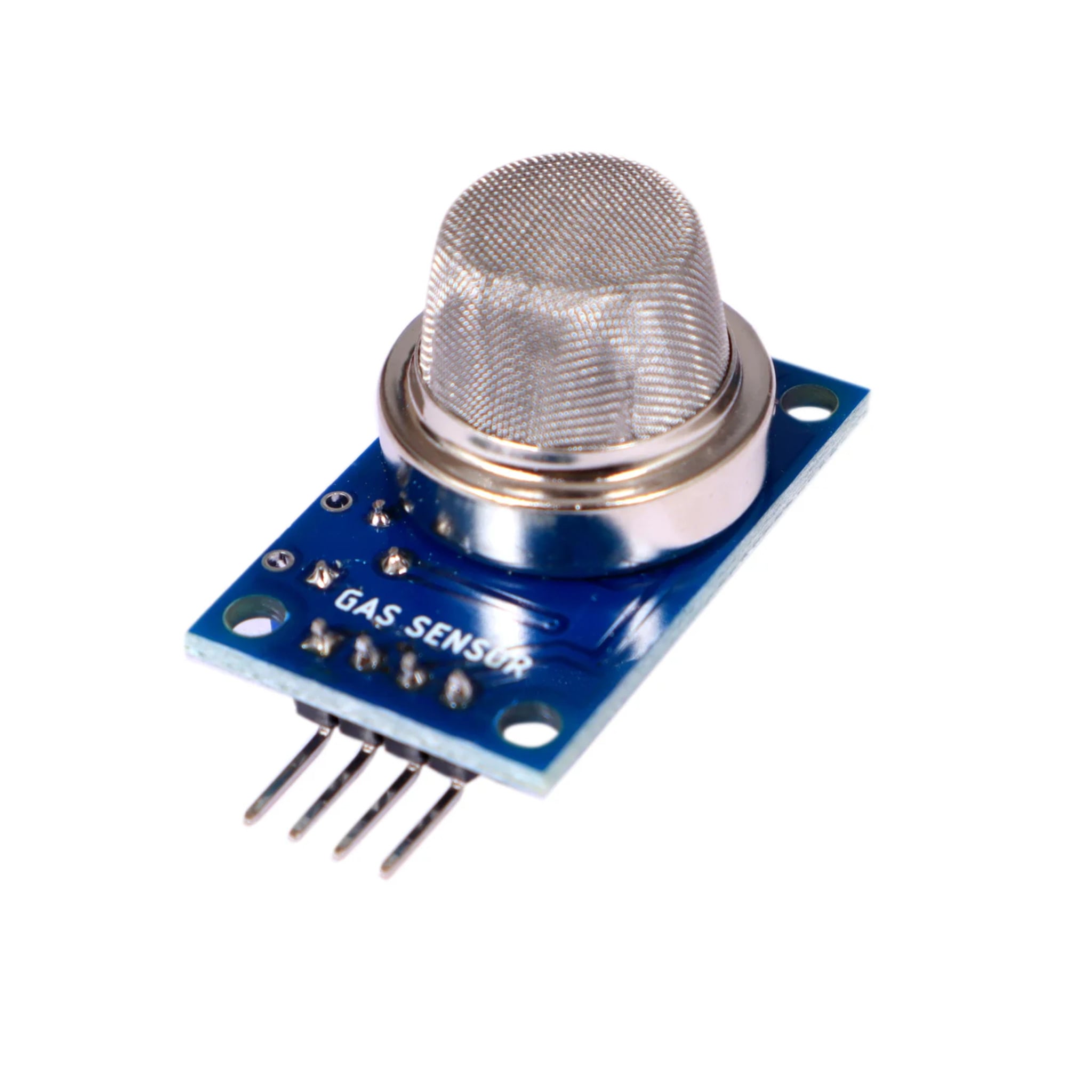

MQ-4 Natural Gas Sensor

Description

Widely employed for gas leak detection in homes and industrial facilities, the MQ4 gas sensor module is specifically engineered to identify gases like methane (CH4) and compressed natural gas (CNG). One of its standout features is rapid responsiveness, and its sensitivity can be tailored to specific requirements through an integrated potentiometer. Belonging to the MQ sensor series, this analog output device is primarily utilized as a CNG sensor, with a core application in measuring the concentration of methane and similar natural gases in the air.

A key operational trait of the MQ4 sensor is its voltage output behavior: as the surrounding gas concentration increases, the sensor’s output voltage also rises accordingly. It operates on a 5V DC power source and has a power consumption of roughly 750mW. Classified as a metal oxide semiconductor (MOS) sensor, it functions by detecting methane gas concentrations in residential or industrial environments and translating these measurements into readable analog voltage signals.

With a sensing range spanning from 300 ppm to 10,000 ppm, the MQ4 sensor is well-suited for effectively identifying gas leaks. This summary outlines the fundamental overview, working principle, and practical applications of the MQ4 methane gas sensor.

Features & Specifications

FEATURE	DESCRIPTION
Combustible Gas Sensitivity	Sensitivity is good for combustible gas in an extensive range.
Natural Gas / Methane Sensitivity	High sensitivity for natural gas and methane gas.
Smoke & Alcohol Sensitivity	Small sensitivity for smoke and alcohol.
Response & Stability	Quick response, long life, and stable.
Drive Circuit	The drive circuit is simple.
Detected Gas	Detection gas is methane or natural gas.

SPECIFICATION	MQ4 SENSOR MODULE
Load resistance	20kΩ
Detecting resistance	10kΩ to 60kΩ
Preheat time	Above 24 hrs
Required voltage	5V
DO output	0.1 to 5V
AO output	0.1 to 0.3V
Operating temperature	14°C to 122°C

mq4 gas sensor datasheet
