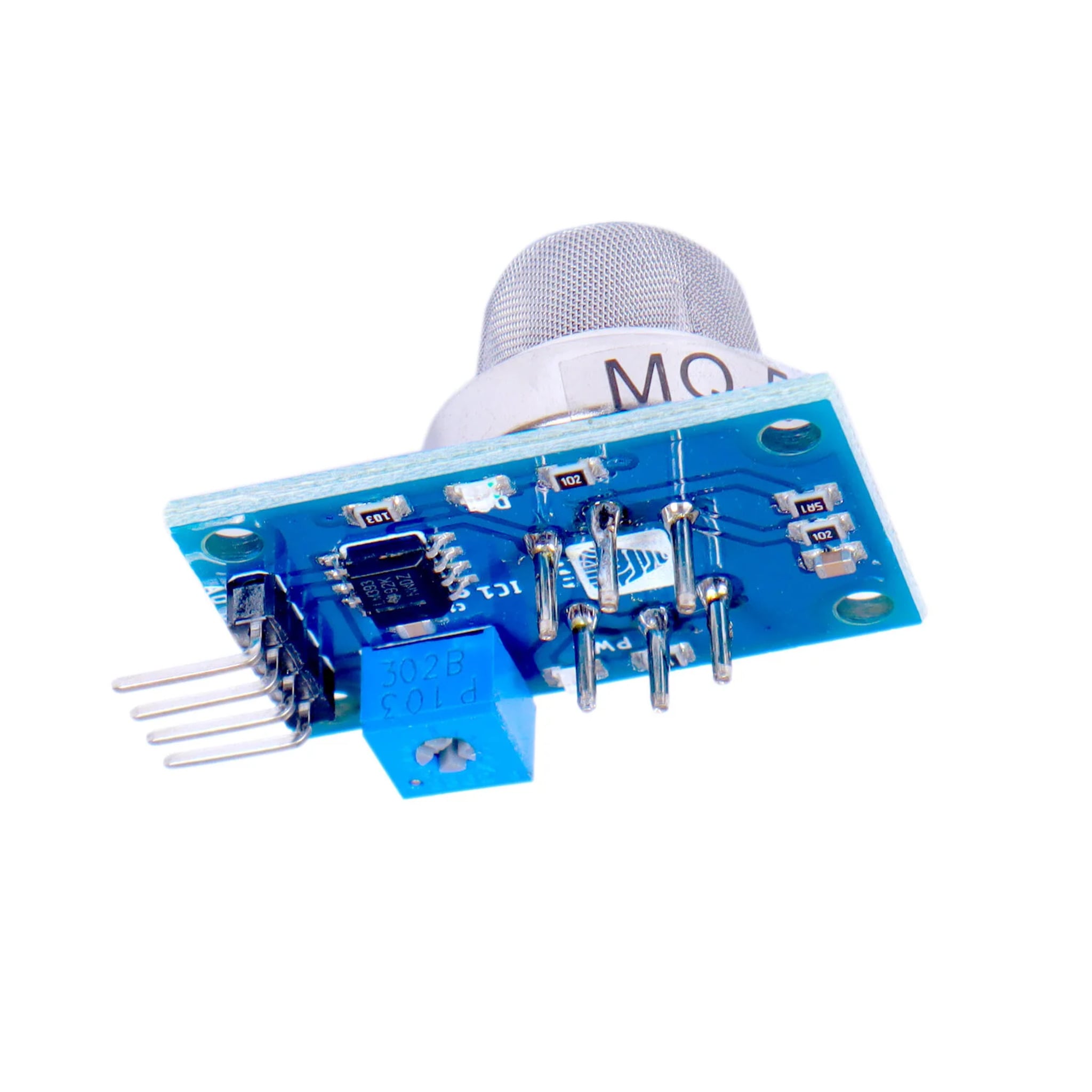

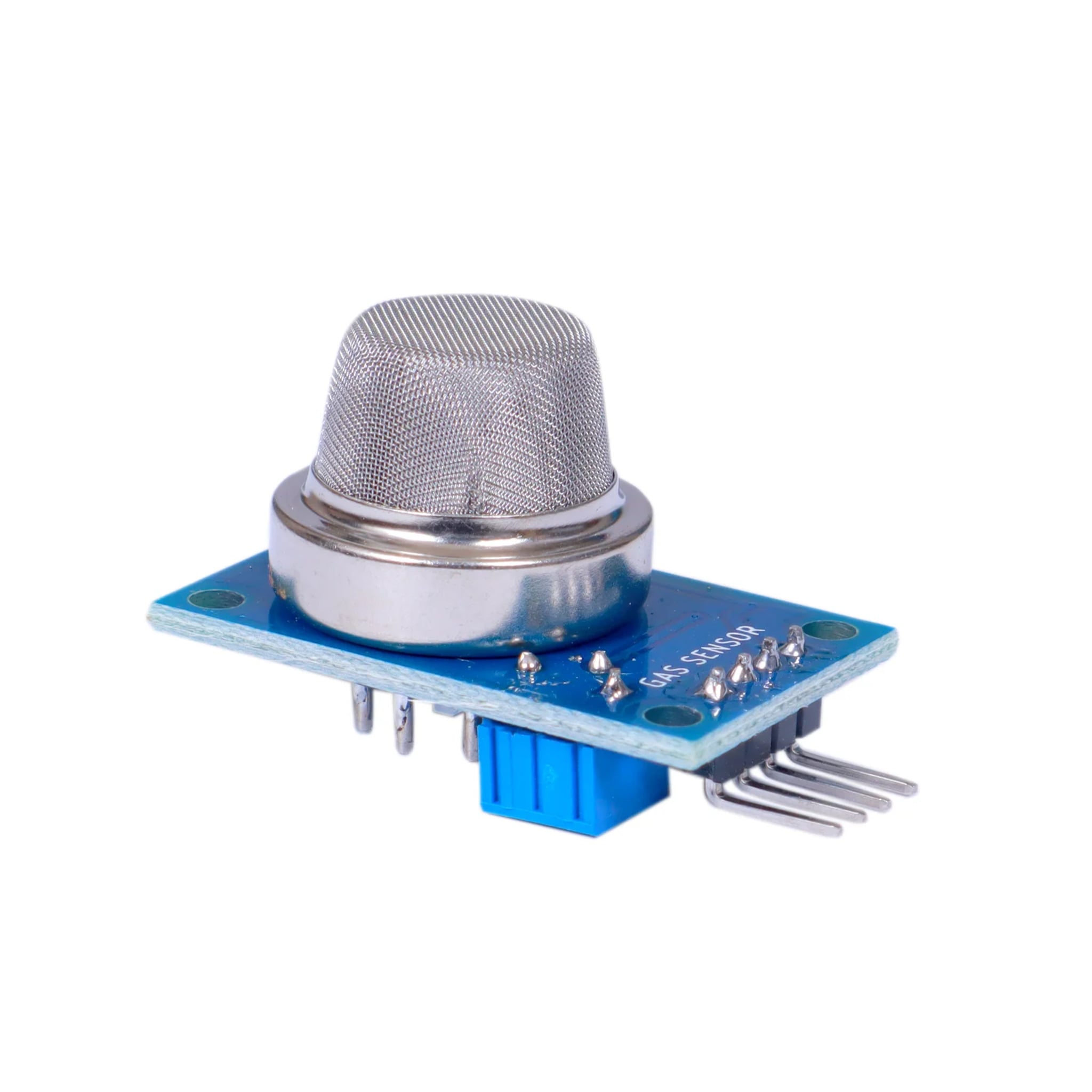

MQ-5 Liquefied gas sensor

$2.991pcs

The DIY MQ5 is a SnO₂-based gas sensor for LPG, natural gas, and coal gas detection, providing adjustable analog and digital outputs for easy integration in residential and industrial gas leak monitoring systems.

Dimensions

32 × 20 × 22 mm

Brand

easyelecmodule

4152 in stock

DESCRIPTIONS AND FEATURES

MQ-5 Liquefied Gas Sensor

Description

Engineered for gas leakage detection, the DIY MQ5 gas sensor module is ideal for both residential and industrial setups, specializing in the detection and monitoring of LPG, natural gas, and coal gas. Its core sensitive material is tin dioxide (SnO2), a substance that exhibits low conductivity when exposed to clean air. When combustible target gases are present in the environment, the sensor’s conductivity increases in direct proportion to the gas concentration.

This module offers dual output modes for versatility: an analog output that correlates with the ambient gas concentration, and a user-friendly digital output. An onboard potentiometer allows for precise threshold adjustment—users can set the maximum gas concentration limit, beyond which the digital output is triggered automatically.

Operation is straightforward: simply power the module with a 5V DC supply, calibrate the desired threshold via the potentiometer, and the sensor will immediately start detecting the gas concentration in its surroundings. An integrated LED indicator provides visual feedback, lighting up to signal the presence of target gases.

The digital output enables seamless integration with microcontrollers and various electronic circuits, while the analog output can be connected to a microcontroller’s ADC (Analog-to-Digital Converter) to obtain a broad range of detailed sensor readings.

Features & Specifications

FEATURE	DESCRIPTION
5V operation	Operates on 5V DC power
LEDs for output and power	Built-in LEDs for power and output indication
Output sensitivity adjustable	Sensitivity can be adjusted via onboard potentiometer
Analog output 0V to 5V	Provides 0V–5V analog signal output
Digital output 0V or 5V	Provides digital threshold output (LOW or HIGH)
Low Cost	Economical and effective detection module
Fast Response	Quick sensor reaction time
Stable and Long Life	Reliable performance with long service life
Both Digital and Analog Outputs	Supports both analog and digital signal output modes

mq5 gas sensor datasheet
