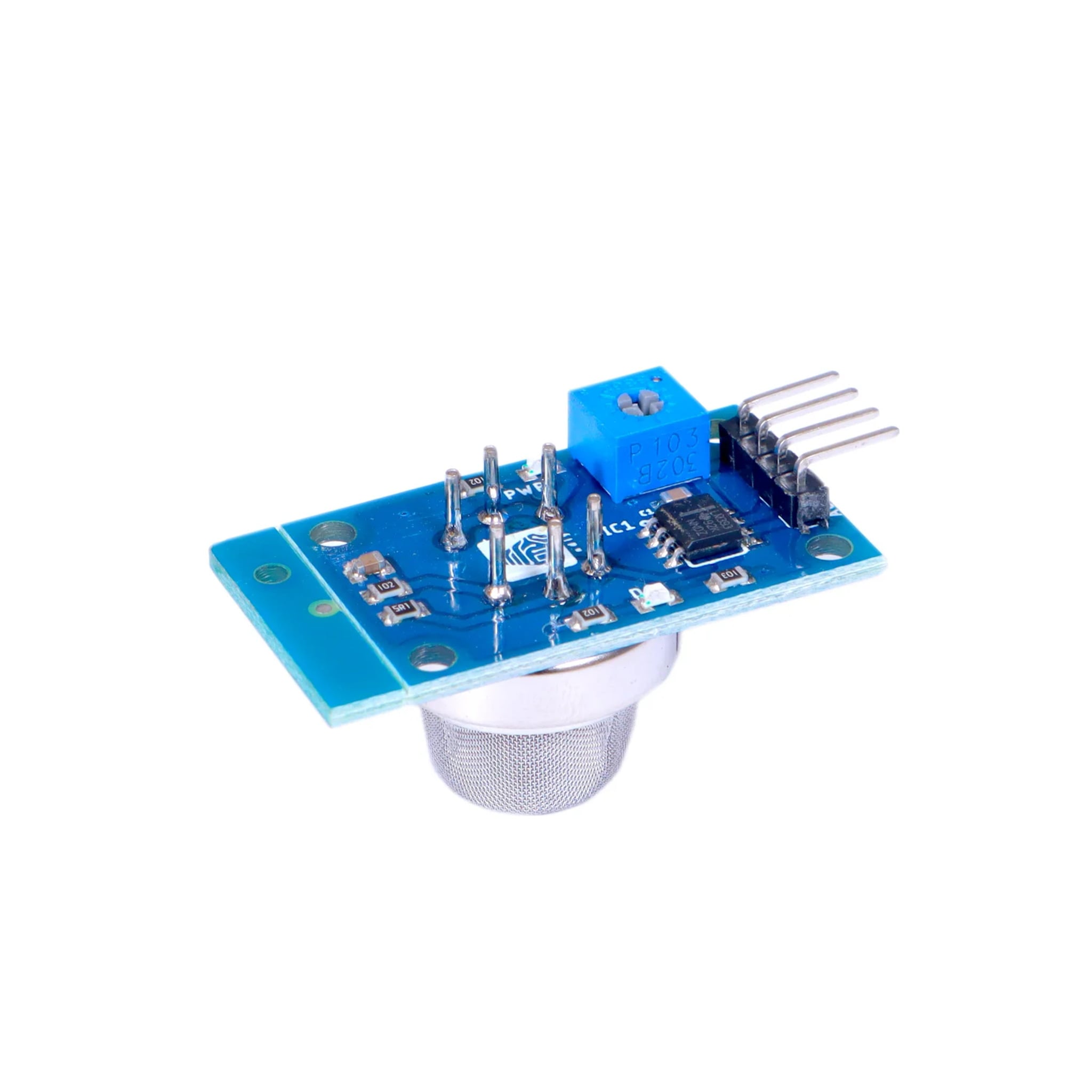

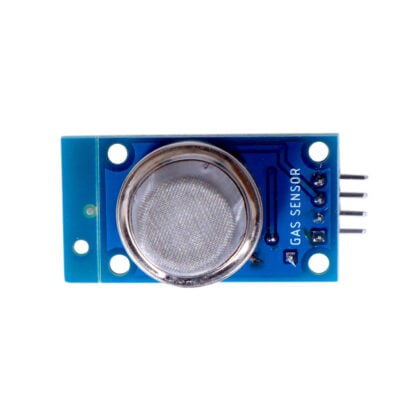

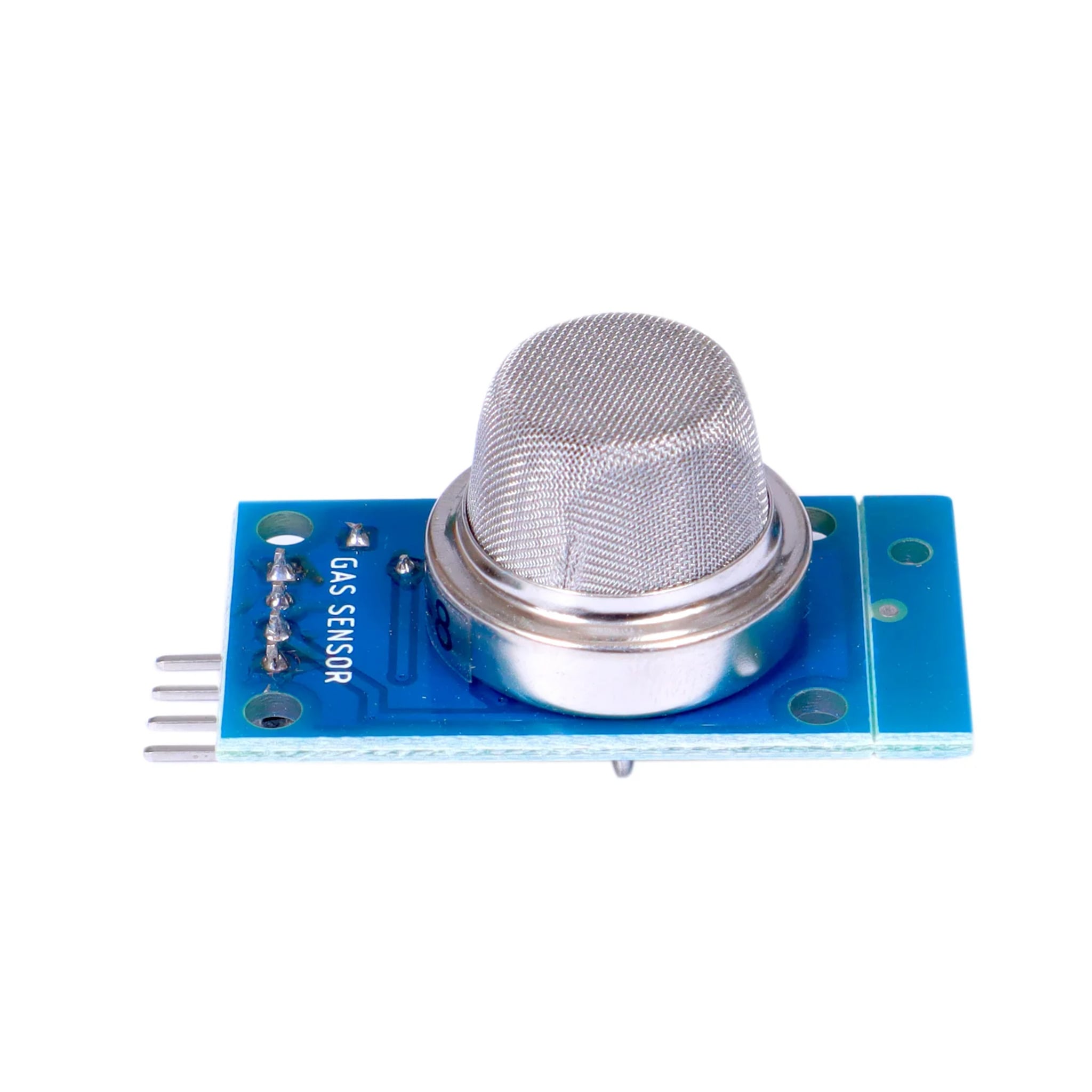

MQ-8 Hydrogen gas sensor

$2.991pcs

The DIY MQ8 is a hydrogen gas sensor with a 100–10,000 ppm detection range, offering adjustable analog and digital outputs with LED indication for easy integration and real-time hydrogen monitoring.

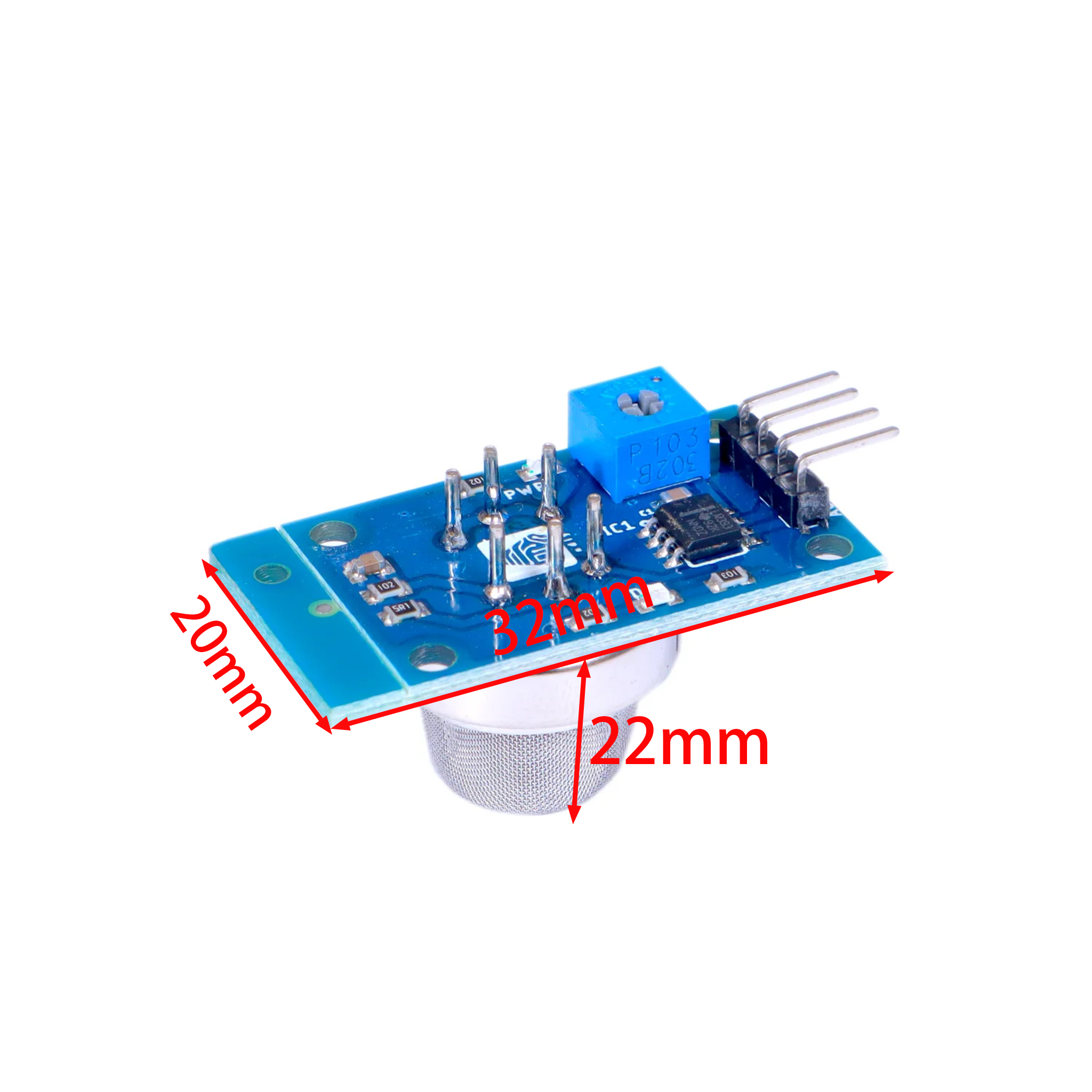

Dimensions

32 × 20 × 22 mm

Brand

easyelecmodule

4325 in stock

DESCRIPTIONS AND FEATURES

MQ-8 Hydrogen Gas Sensor

Description

As a user-friendly hydrogen detection solution, the DIY MQ8 Hydrogen Sensor Module is specifically designed for sensing hydrogen gas concentrations in the ambient air. It features a detection range of 100 to 10,000 ppm, covering the key concentration levels required for effective hydrogen monitoring.

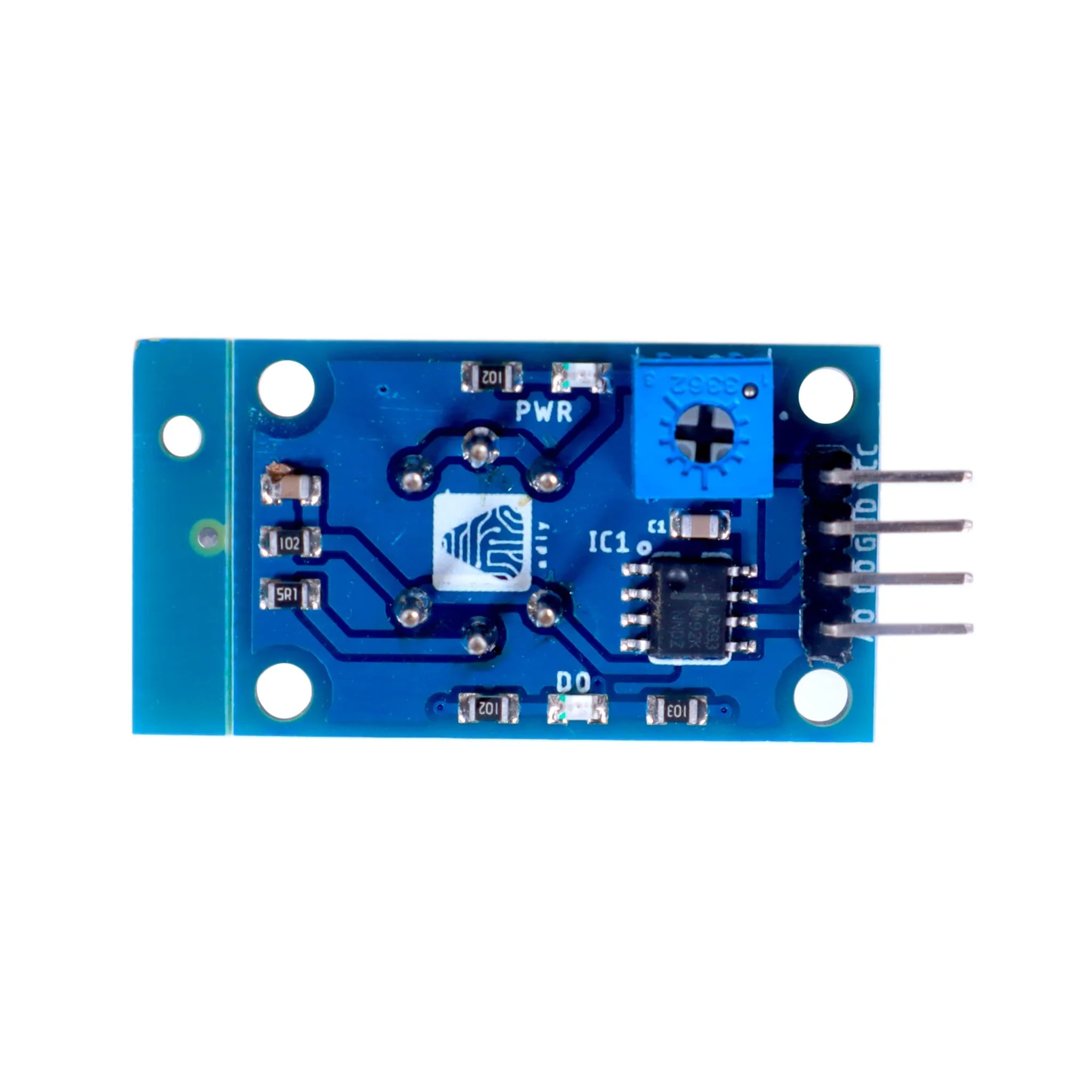

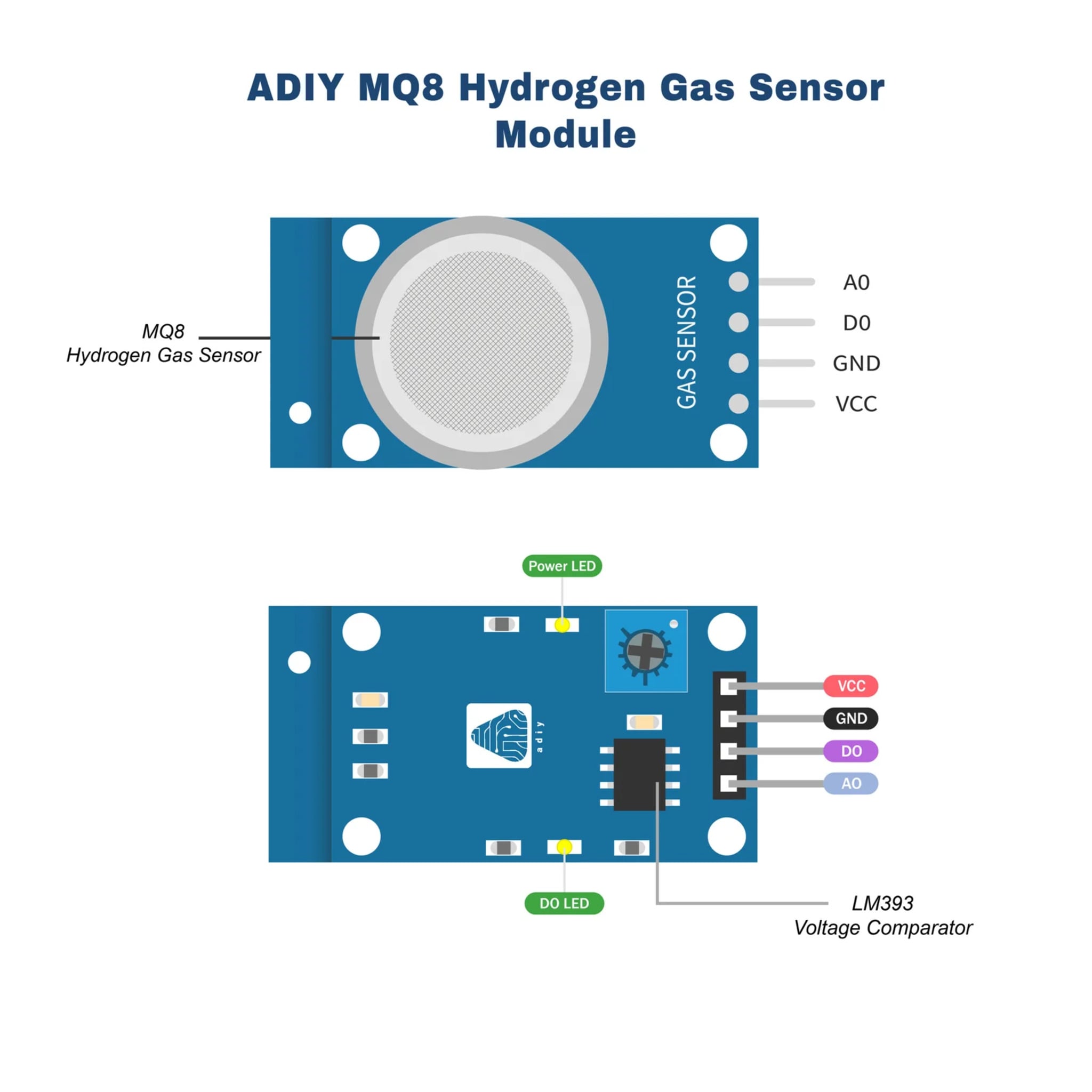

The module comes equipped with dual output modes for versatile application: an analog output that varies proportionally with the hydrogen concentration in the air, and a convenient digital output for quick alert triggering. An onboard potentiometer allows users to flexibly set the threshold—defining the maximum hydrogen concentration that, when surpassed, activates the digital output.

Operation is remarkably straightforward: supply the module with a 5V DC power source, adjust the desired concentration threshold via the potentiometer, and it will immediately begin detecting and measuring hydrogen levels in its surroundings. An integrated LED indicator offers clear visual feedback, illuminating as soon as hydrogen gas is detected.

For seamless integration into electronic systems and projects, the digital output can be easily connected to microcontrollers and other electronic circuits. Meanwhile, the analog output can be linked to a microcontroller’s ADC (Analog-to-Digital Converter), enabling access to a wide spectrum of precise sensor readings for detailed concentration analysis.

Features & Specifications

SPECIFICATION	DESCRIPTION
5V operation	Operates on 5V DC supply
LEDs for output and power	LED indicators for output and power status
Output sensitivity adjustable	Sensitivity can be adjusted based on needs
Analog output 0V to 5V	Analog output signal ranging from 0V to 5V
Digital output 0V or 5V	Digital output signal at either 0V or 5V
Low Cost	Economical and efficient design
Fast Response	Quick signal response time
Stable and Long Life	Reliable operation with a long lifespan
Both Digital and Analog Outputs	Supports both digital and analog output signals

mq8 gas sensor datasheet
