MQ-7 Carbon monoxide sensor

$2.991pcs

The DIY MQ7 gas sensor provides adjustable analog and digital outputs with LED indication, enabling easy microcontroller integration for real-time gas concentration detection and alerting.

Dimensions

32 × 20 × 22 mm

Brand

easyelecmodule

4142 in stock

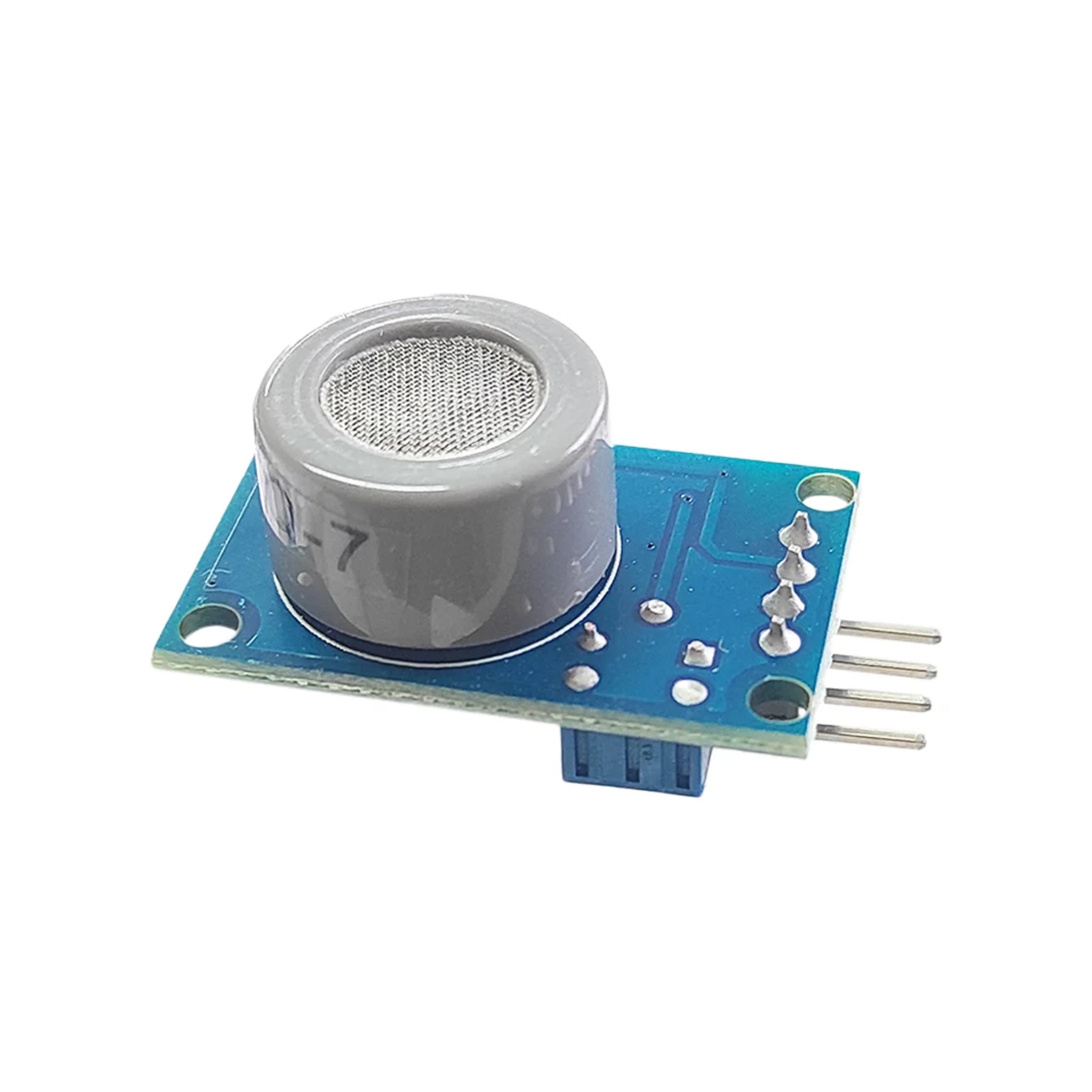

MQ-7 Carbon Monoxide Sensor

Description

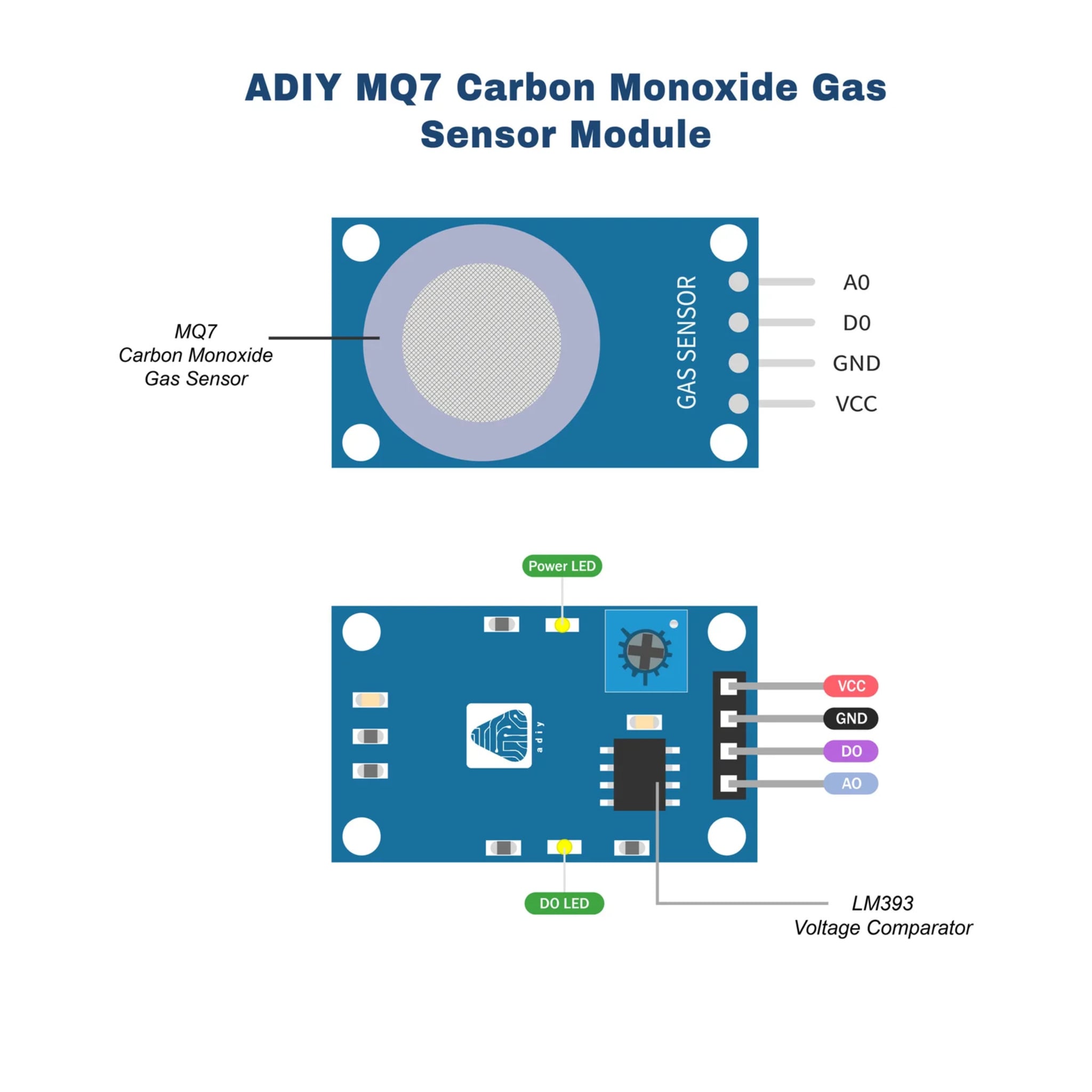

The DIY MQ7 Gas Sensor Module offers dual output functionality to meet diverse monitoring needs: an analog output that dynamically correlates with the concentration of target gases in the air, and a user-friendly digital output for straightforward detection alerts. An onboard potentiometer allows for flexible threshold customization—users can set the maximum gas concentration limit, and the digital output will be triggered automatically once this threshold is exceeded.

Operating the module is incredibly simple: just supply it with a 5V DC power source, adjust the desired gas concentration threshold via the potentiometer, and it will immediately start detecting and measuring gas concentrations in its surrounding environment. An integrated LED indicator provides intuitive visual feedback, lighting up promptly whenever target gases are detected.

For seamless integration into electronic projects, the digital output can be easily connected to microcontrollers and various electronic circuits. Meanwhile, the analog output can be linked to a microcontroller’s ADC (Analog-to-Digital Converter), enabling access to a wide range of precise sensor readings for in-depth concentration analysis.

Features & Specifications

FEATURE	DESCRIPTION
Sensitive for carbon monoxide	Detects carbon monoxide gas concentration
Output voltage boosts along with the concentration of the measured gases increases	The output voltage increases proportionally with gas concentration
Fast response and recovery	Quick sensor response and recovery times
Adjustable sensitivity	Sensitivity can be adjusted based on application needs
Signal output indicator	Indicates sensor’s output level visually

SPECIFICATION	DESCRIPTION
5V operation	Operates on 5V DC supply
LEDs for output and power	LED indicators for output and power status
Output sensitivity adjustable	Sensitivity can be adjusted based on needs
Analog output 0V to 5V	Analog output signal ranging from 0V to 5V
Digital output 0V or 5V	Digital output signal at either 0V or 5V
Low Cost	Economical and cost-effective design
Fast Response	Quick signal response time
Stable and Long Life	Reliable operation with a long lifespan
Both Digital and Analog Outputs	Supports both digital and analog output signals

mq7 gas sensor datasheet
