XL6009 Boost Adjustable Voltage Regulator Module with Digital Display
Need to power high-voltage devices from a low-voltage source? The XL6009 boost module is your hero！ This tiny box with a DC to DC boost circuit cranks out a maximum voltage of 35V at the twist of a knob, plus a digital screen to show the voltage. XL6009 specs are impressive and the XL6009 price is insanely cheap. Small module, big power!
This article details the core parameters, application scenarios, and common issues of the XL6009 Boost Adjustable Voltage Regulator Module with Digital Display. It helps electronic enthusiasts and engineers quickly master the skills of output adjustment, stability, and digital display function application, adapting to multi-voltage requirements such as 5V/6V/9V/12V/24V.
What is XL6009 IC？
The XL6009 chip is a high-performance, high-efficiency buck-boost converter chip. It can convert an input voltage ranging from 3.5V to 32V into an adjustable output voltage ranging from 1.25V to 35V.
What is XL6009 boost adjustable voltage regulator module？
This XL6009 boost converter module with digital display is a DC to DC boost converter circuit based on the high-performance XL6009 boost converter chip, featuring a compact XL6009 module design. It supports a wide input voltage range (3V-32V) and can output up to 35V. The output voltage can be easily adjusted via a rotary potentiometer, with real-time monitoring via an intuitive digital display. Its detailed XL6009 specs include high conversion efficiency (up to 94%), stable ripple suppression, and overheat protection, making it ideal for battery-powered devices, LED drivers, and more. The current market XL6009 price offers excellent cost-performance, perfect for DIY electronics and industrial applications.
XL6009 Working Principle
The XL6009 module is a switching power supply module based on the DC-DC boost topology circuit. It converts the input low DC voltage (3V-32V) into a higher stable DC voltage (up to 35V) through high-frequency switching (PWM modulation) and energy storage/release by the inductor, and the output voltage can be adjusted via an adjustable resistor.

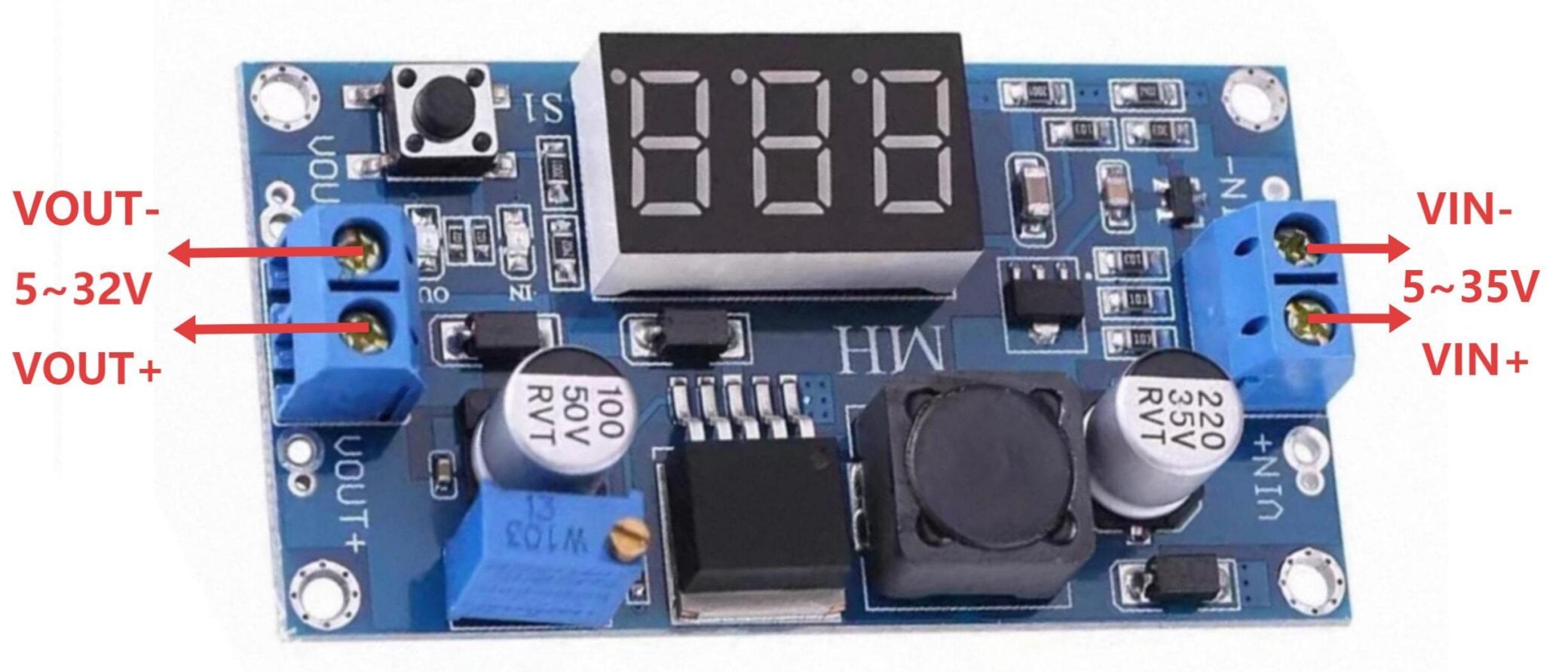

XL6009 Module Key Components
1、XL6009 chip
High-performance DC-DC boost controller: Responsible for generating high-frequency switching signals (usually several hundred kHz) to control the on and off states of the power tube (MOSFET).
2、XL6009 module switching and energy storage components (inductor + diode)
①Inductor: When the switch is turned on, the inductor stores input electrical energy. When the switch is turned off, the inductor releases the stored energy, which is superimposed on the input voltage to form a higher voltage.
②Diode: Prevents energy backflow and ensures that the current released by the inductor flows unidirectionally to the output terminal.
③Capacitor: Filters and smooths the output voltage to reduce ripple.
3、XL6009 module feedback and regulation
The output voltage is fed back to the XL6009 chip through a voltage divider resistor. The chip dynamically adjusts the switch duty cycle (proportion of on-time) according to the feedback signal, thereby precisely controlling the output voltage.
Rotating the potentiometer on the module can change the voltage division ratio.
4、XL6009 module digital display
It monitors and displays the current output voltage value in real-time, allowing users to intuitively observe the adjustment results.
XL6009 Parameter
| Model | XL6009 Boost Adjustable Voltage Regulator Module with Digital Display | Module nature | Non-isolated boost |
| Rectification mode | Asynchronous rectification | Input current | 4A(maximum), no-load 18mA (5V input, 8V output, no-load current less than 18mA. The higher the voltage, the larger the no-load current) |
| Conversion efficiency | ≤94%(The greater the voltage difference, the lower the efficiency) | Switching frequency | 400KHz |
| Output ripple | 50mv(The higher the voltage and the larger the current, the greater the ripple) | Load regulation | ±0.5% |
| Voltage regulation | ±0.5% | Operating temperature | -40℃~+85℃ |
XL6009 Module Feature
- Wide input voltage range: 3V~32V (Boost works normally when below 5V, but the nixie tube does not work), the optimal operating voltage range is 5~32V.
- Wide output voltage range: 5V~35V.
- Built-in 4A high-efficiency MOSFET switch, enabling efficiency up to 94% (LM2577 current is only 3A).
- High switching frequency of 400KHZ, which allows small capacity filter capacitors to achieve very good results, with low ripple and small size. (LM2577 frequency is only 50KHZ).
- With power indicator light.
- Equipped with a voltmeter display that supports self-calibration. Adopts a more advanced voltage microprocessor, with a voltmeter error of ±0.05V and a measuring range of 0~35V. (Note: To ensure the accuracy of the voltmeter, please keep the input voltage above 4.5V.)
- A touch button can switch between measuring input or output voltage, with an indicator light showing which voltage is being measured. The setting is saved even after power-off and restart.
- The voltmeter can be turned off. Touch the left button when display is not needed.
- Comes with terminal blocks for easy use without a soldering iron, and retains the soldering points.
- Features over-temperature protection and short-circuit protection functions.
XL6009 Precaution
- Nixie tube:
Used to display input voltage and output voltage, which can be switched by short-pressing the button. When the IN indicator is on, it indicates that the input voltage is displayed. When the OUT indicator is on, it indicates that the output voltage is displayed.
- Potentiometer:
Used to adjust the output voltage. Press the button to switch the nixie tube to display the output voltage (the OUT indicator is on), then rotate the potentiometer counterclockwise to decrease the voltage and clockwise to increase the voltage.
- Calibration function:
① Input and output voltage measurement error calibration: Long press the switch for more than 4 seconds, then release it to enter the voltage measurement error calibration function. At this time, the IN light is on (calibrating the input end), and the nixie tube flashes to display the calibration value (the factory parameter is 0.0). Short press the button to change this value (the value range is -0.5~0.5, unit is V). A positive number indicates upward calibration, and a negative number indicates downward calibration. After adjusting the calibration value of the input end, long press the button for more than 2 seconds, then release it to enter the error calibration of the output end. At this time, the OUT light is on (calibrating the output end) and displays the calibration value of the output end. The adjustment method is the same as that of the input end. After adjusting the calibration value of the output end, long press the button for more than 2 seconds, then release it to save the set value and return to normal voltage display. The set calibration value takes effect immediately and is not lost when power is off. (With this function, it can meet your higher precision requirements).
② Turn off the voltmeter: Long press the switch for more than 1 second and less than 4 seconds, then release it to turn off. After the voltmeter is turned off, just short press the switch to turn it on.
XL6009 Application Scenarios
①Multi-voltage power supply systems in DIY projects for electronic enthusiasts
②Occasions with high voltage precision requirements in industrial control systems
③Low-voltage boosting needs such as LED lighting and small motor driving
④Storage batteries and power transformers
Relative Information
Purchase Link
FAQ
Is the XL6009 module suitable for long-term high-current operation?
It is recommended to install a heat sink or fan when outputting high current to ensure the module operates stably for a long time.
What is the maximum output current of the XL6009 module?
The maximum output current of the XL6009 module is 4A, but the actual output is affected by the input voltage and heat dissipation conditions.
