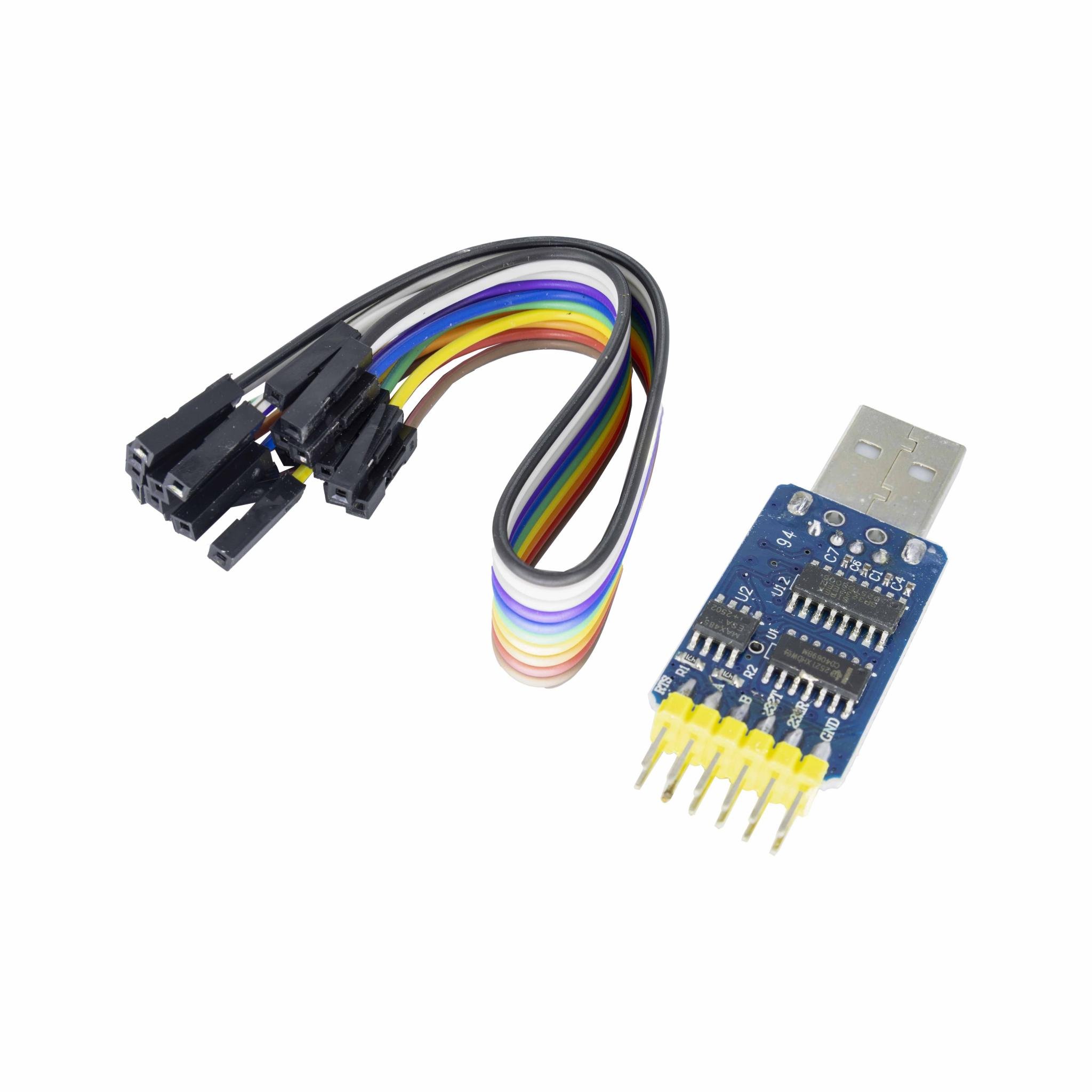

Six-in-One Multifunctional USB to UART Serial Port Module CP2102
$2.691 pcs
The CP2102 six-in-one multi-functional serial port module can freely convert between USB and UART/TTL/RS485/RS232.

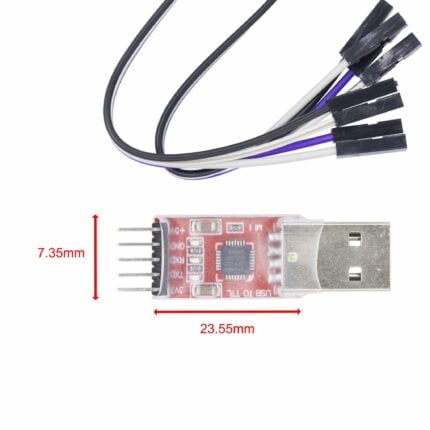

| Dimensions | 23.55 × 7.35 mm |
|---|---|
| Brand |
easyelecmodule |
325 in stock
Parameters:
1、System Compatibility: Fully supports drivers for Win8/Win7/WinXP/Win2k/WinCE/Linux/Mac systems, both 32-bit and 64-bit.
2、3.3V and 5V Compatibility: This product supports 3.3V voltage.
3、Power supply output 5V – 500mA or 3.3V – 100mA.
4、Overcurrent Protection: When overcurrent occurs (exceeding 500mA at 5V or 100mA at 3.3V), the fuse will automatically blow.
5、TTL Level: Can be directly connected to single-chip microcomputers or other embedded devices.
6、RS232 Level: Can be connected to computers or other RS232-level devices.
7、R485 Level: With automatic send and receive control, default to receive status.
8、Four Communication Freely Switch: USB/TTL/RS232 can be freely switched.
9、High-Speed: Baud rate can reach up to 2Mbps.
| MODE | PIN NAME | FUNCTION |
|---|---|---|
| TTL Level Interface | TXD | TTL Transmit |
| RXD | TTL Receive | |
| GND | TTL Ground | |
| 232 Level Interface | 232-TX | 232 Transmit |
| 232-RX | 232 Receive | |
| GND | 232 Ground | |
| 485 Level Interface | A | 485+ |
| B | 485- | |
| +5V Voltage Output | +5V | +5V Voltage Output |
| 3.3V Voltage Output | 3V3 | 3V3 Voltage Output |
| DTR Output | DTR | Special Function |
| RTS Output | RTS | Special Function |
