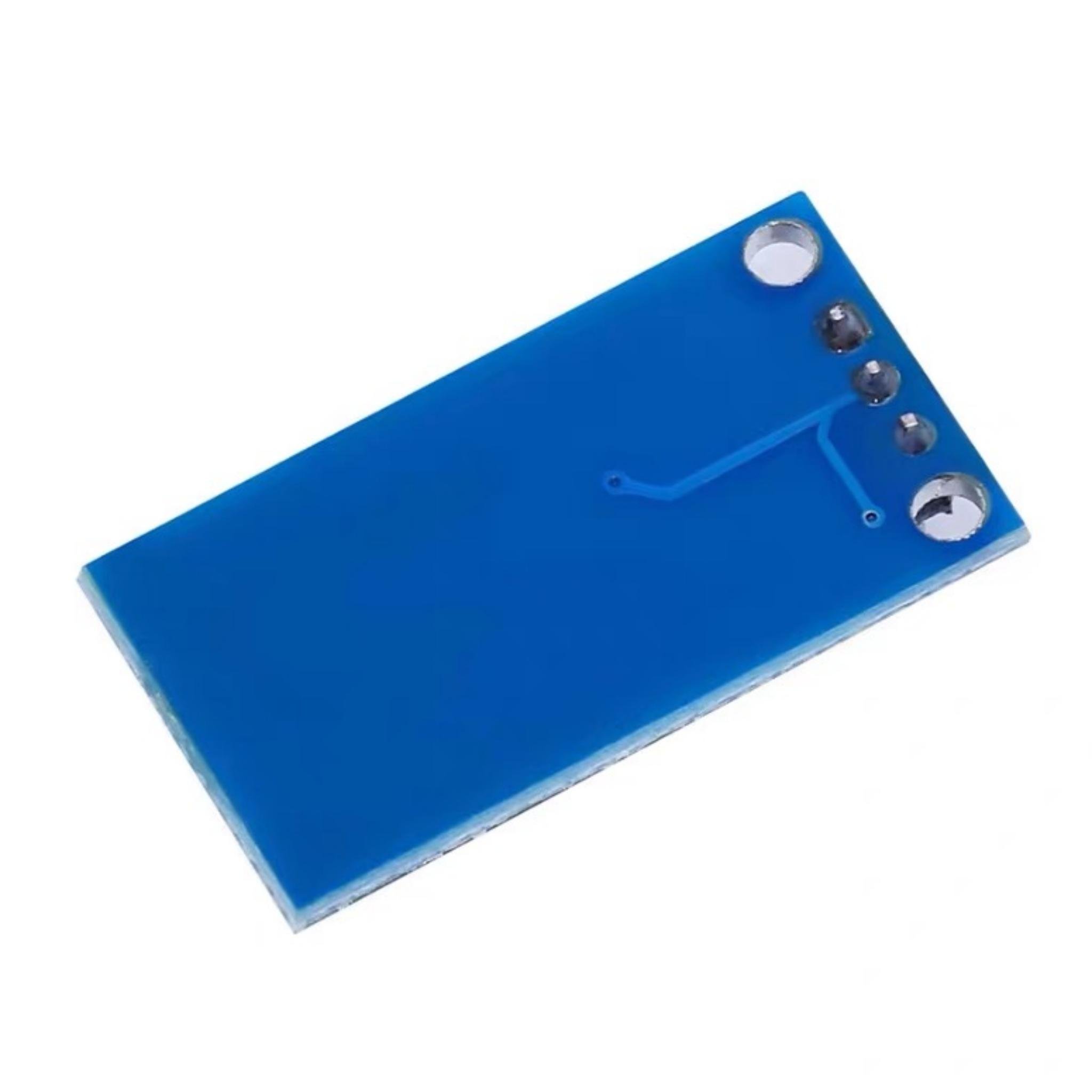

TTP223 Touch Sensor Module Capacitive
$1.231pcs
TTP223 touch sensor, tap to control！Low power, high sensitivity, hidden button, replaces mechanical switches.
| Dimensions | 27.6 × 16.0 mm |
|---|---|
| Brand |
easyelecmodule |
2321 in stock
Product Introduction
The TTP223 capacitive touch sensor module is a capacitive point-type touch switch module based on the touch detection IC (TTP223). In normal condition, this module outputs a low level, which is a low-power mode. When a finger touches the corresponding position, the module will output a high level. The module can be installed on non-metallic materials such as plastic and glass surfaces. In addition, a thin sheet of paper (non-metallic) is placed on the surface of the module. As long as the touching position is correct, it can be made into a button that is hidden in places like walls or tabletops. This module can help you avoid the trouble of regular pressing-type buttons.
Module Feature
- Operating voltage: 2.0V – 5.5V.
- Built-in status indicator light.
- The module has an automatic calibration function. When no key is touched, the system will re-calibrate. The re-calibration cycle is approximately 4.0 seconds.
- After power-on, there is a stable time of about 0.5 seconds required. During this period, do not touch the keys. At this time, all functions are prohibited.
- The module interface is a standard 2.54mm pin header for input and output connection. The connection via DuPont wires is very convenient.
- The PCB board has two fixed bolt holes, which can be fixed with screws.
TTP223 Touch Sensor Module Pin Functions
| Pin | Definition |
|---|---|
| VCC | Positive pole |
| GND | Power ground |
| OUT | Digital output |
- When the working voltage is between 2.5V and 5.5V, it defaults to the jog mode. When touched, it outputs a high level.
- Different working modes can be set through J1 and J2. It has installation holes and an LED status indicator (Effective when the output is at a high level).
| Touch Mode | Level Output | J2 | J1 |
|---|---|---|---|
| Jog mode | high level | No welding | No welding |
| Jog mode | low level | weld | No welding |
| Automatic Lock Mode | high level | No welding | weld |
| Automatic Lock Mode | low level | weld | weld |
Note: J2 sets the output level, and J1 sets the touch mode.
Parameter
| Parameter | Specification |
|---|---|
| Model | TTP223 Touch Module |
| Working Voltage | DC 2.0V-5V |
| Trigger Mode | Outputs a high level after the finger is touched. |
| Size | 27.6mm * 16.0mm |
| Level Output | High/Low level |
| Indicator Light Status | With a switch indicator light (the light goes off when there is no touch, and it lights up when there is touch) |
| Module Interface | 2.54mm pin header |
Application Scenarios
This module is a wide range of electronic consumer products. It replaces traditional buttons, microcomputer learning, electronic competitions, product development, graduation design, and home industrial control applications. It can be connected with relay modules to form touch relay control switches, or it can be connected with buzzer modules to form touch alarm modules.
