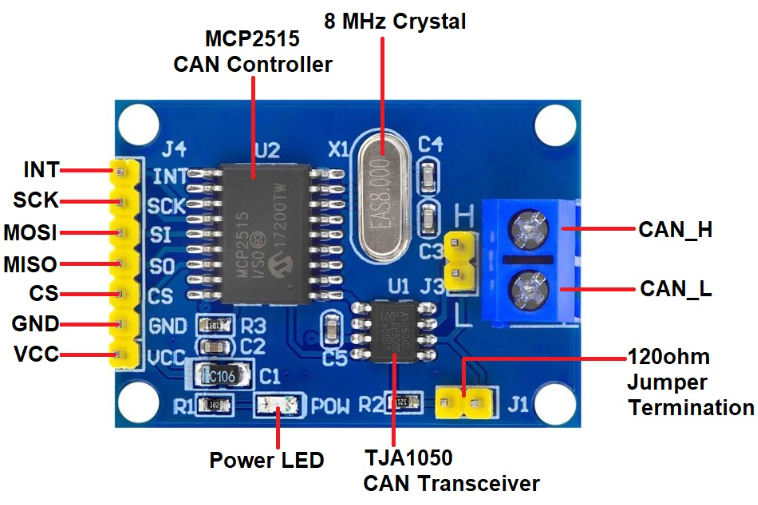

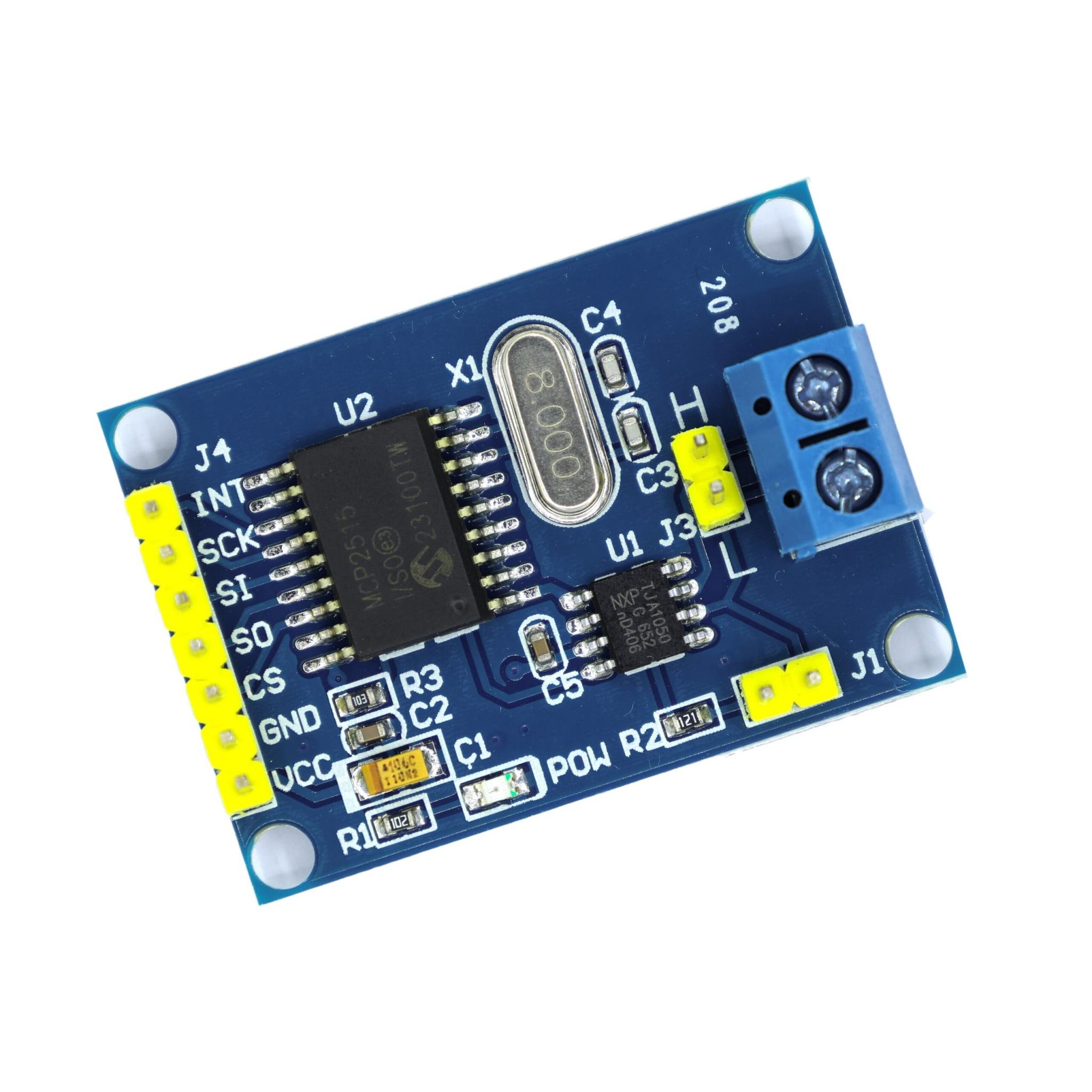

MCP2515 CAN Bus Module TJA1050 Receiver with SPI
$4.441pcs
MCP2515 CAN module, SPI for 51/Arduino/ARM, 6 flexible mailboxes, strong anti-interference, with TJA1050 for easy CAN comms, 5V plug & play!
| Dimensions | 34.8 × 22.7 mm |
|---|---|
| Brand |
easyelecmodule |
2737 in stock
Product Introduction
The MCP2515 is an independent controller for local area network protocol, fully supporting the CANV2.0B technical specification. This device can send/receive standard and extended data frames as well as remote frames. The two acceptance shielding registers and six acceptance filtering registers built-in in the MCP2515 can filter out unwanted messages, thereby reducing the overhead of the main microcontroller. The connection between the MCP2515 and the MCU is achieved through the standard serial peripheral interface (SPI).
This module communicates with the MCU via the SPI interface. The RPi 2B/3B expansion board contains SPI bus signals, making it convenient to operate this module. This enables us to easily obtain communication data on the CAN bus using the can-util tool, and also allows us to perform read and write operations on the devices on the CAN bus.
Module Feature
- Supports CAN V2.0B technical specification, with a communication rate of 1Mb/s.
- Data field ranging from 0 to 8 bytes.
- Standard frame, extended frame and remote frame.
- Module powered by 5V DC supply, controlled by SPI protocol.
- 120 ohm terminal resistor, the J1 can be short-circuited by using the short-circuit cap.
- Module size: 34.8mm * 22.7mm.
- Working current: typical value 5mA, standby current 1 microampere. Excluding the power indicator light.
- Operating temperature: industrial grade -40℃ to +85℃, extended grade -40℃ to +125℃.
