Reverse Polarity Protection Module

$0.971pcs

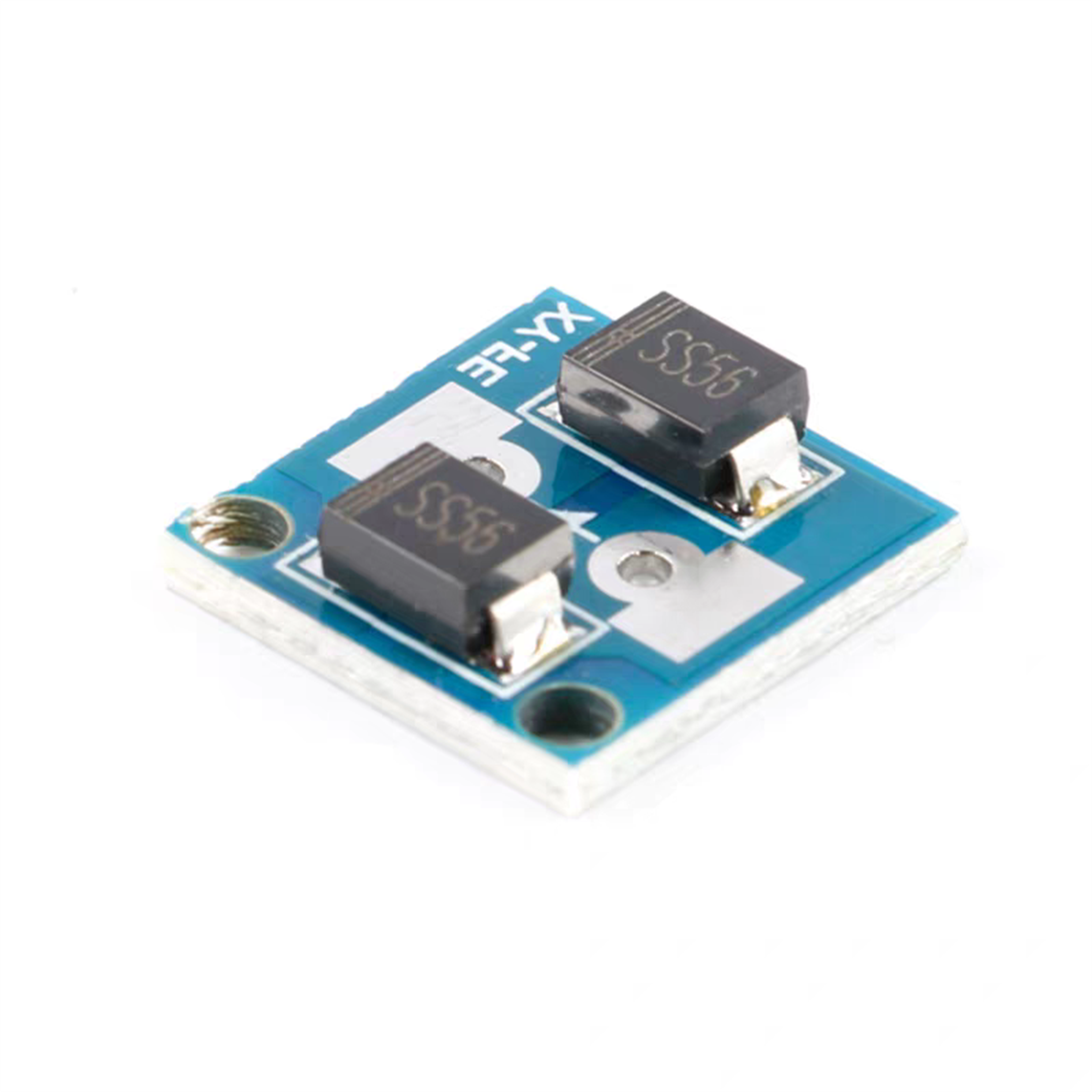

Uses two SS56 Schottky diodes in parallel for low internal resistance and low voltage drop. Maximum current: 10A, withstand voltage: 60V.

Dimensions

13 × 13 mm

Brand

easyelecmodule

9881 in stock

DESCRIPTIONS AND FEATURES

The SS56 series of Schottky diodes are housed in a standard, compact SMA package. They are characterized by high stability, high reliability, and low leakage current. Featuring electrical stress protection and a low forward voltage drop, this ultra-small, thin surface-mount device is ideally suited for reverse polarity protection, low-voltage rectification, and DC-DC conversion and power management applications.

Specifications

Maximum Current: 10A
Maximum Voltage: 60V

Product Features

Low power loss high efficiency
Ideal for automated placement
Guard ring for over-voltage protection
High surge current capability

Applications

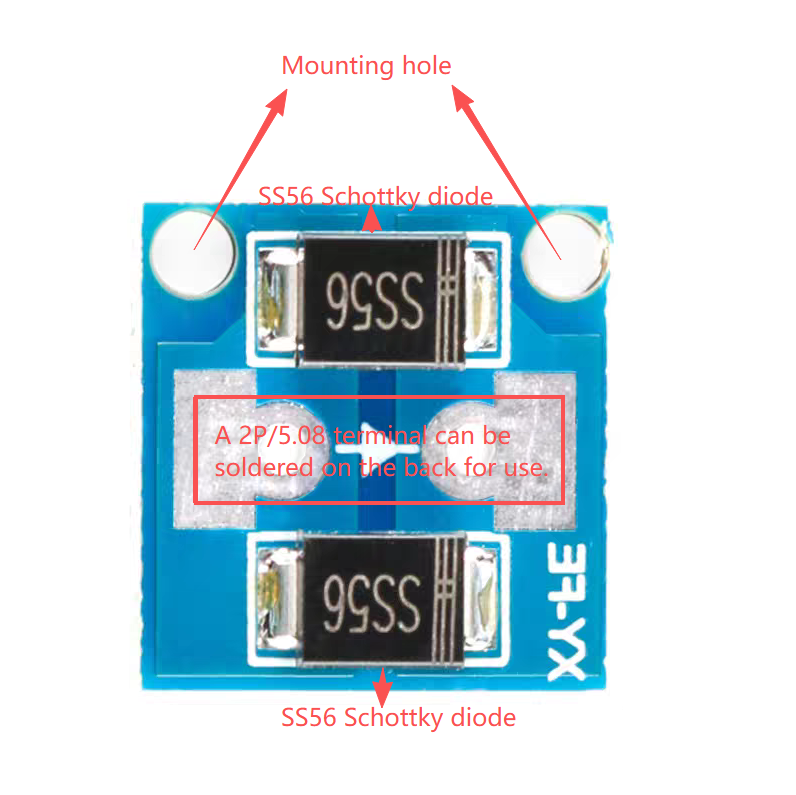

Utilizing the unidirectional conductivity of diodes, this module uses two SS56 Schottky diodes in parallel to provide reverse polarity protection for various circuits. Simply connect this module in series between the positive terminal of the power supply and the input of the circuit. The module’s anode (positive) connects to the power supply’s positive terminal, and its cathode (negative) connects to the circuit’s input. If the power supply polarity is reversed, the diodes will block current from entering the circuit, thereby providing reverse connection protection.

SS56 DATASHEET
